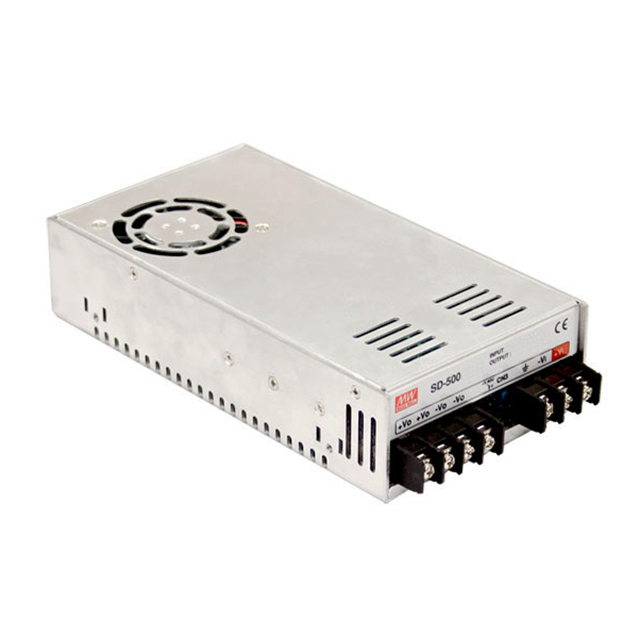

SD-500 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER 24V 504W
| Part | Type | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Approval Agency | Applications | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Number of Outputs | Efficiency | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Enclosed | 21 A | 215 mm | 8.46 in | 50 mm | 4.53 in | 115 mm | 1.97 " | 72 V | CB CE | ITE (Commercial) | 504 W | 2000 V | 24 V | 1 | 88 % | Chassis Mount | 19 V | 60 °C | -20 °C |
