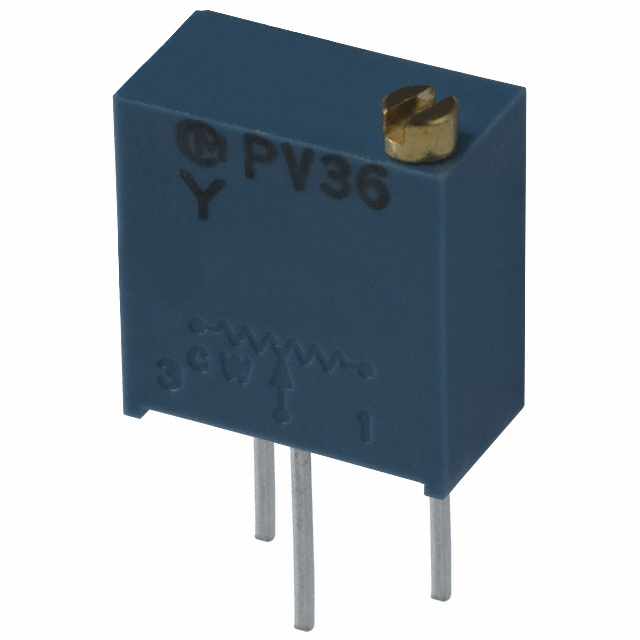

PV36Y Series

Catalog

TRIMMER - 3/8IN SQ MT CERMET /TUBE PACKAGING

Part	Resistive Material	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Temperature Coefficient	Tolerance	Mounting Type	Number of Turns	Resistance	Power (Watts)	Power (Watts)	Adjustment Type
Bourns Inc. PV36Y204C01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	200000 Ohms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y503C01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	50000 Ohms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y103A01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	10000 Ohms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y500A01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	150 ppm/°C	10 %	Through Hole	25	50 Ohms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y104A01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	100 kOhms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y103C01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	10000 Ohms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y502A01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	5 kOhms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y503A01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	50000 Ohms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y102A01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	1000 Ohms	0.5 W	0.5 W	Top Adjustment
Bourns Inc. PV36Y502C01B00	Cermet	PC Pins	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	100 ppm/°C	10 %	Through Hole	25	5 kOhms	0.5 W	0.5 W	Top Adjustment
