OSTHG07 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

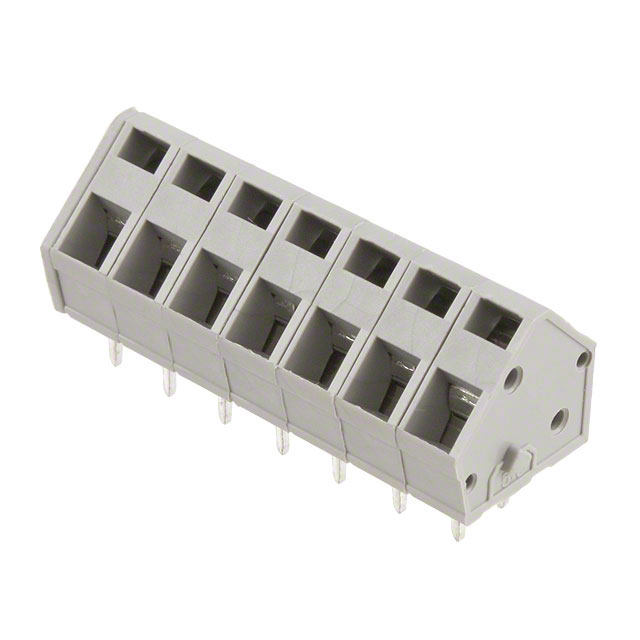

TERM BLOCK 7POS 5.08MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Housing Material | Clamp Material - Plating [custom] | Current | Wire Termination | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level [custom] | Number of Levels | Mating Orientation | Color | Pitch | Pitch | Features | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Brass | Thermoplastic | Stainless Steel | 15 A | Leg Spring Push-In Spring | Through Hole | 12 AWG | 28 AWG | 7 | 1 | Angled | Gray | 5.08 mm | 0.2 in | Interlocking (Side) | 300 VDC |
 On Shore Technology Inc. | -30 ░C | 105 ░C | Brass | Thermoplastic | Stainless Steel | 15 A | Leg Spring Push-In Spring | Through Hole | 12 AWG | 28 AWG | 7 | 1 | Angled | Gray | 5 mm | 0.197 in | Interlocking (Side) | 300 VDC |
