9036-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

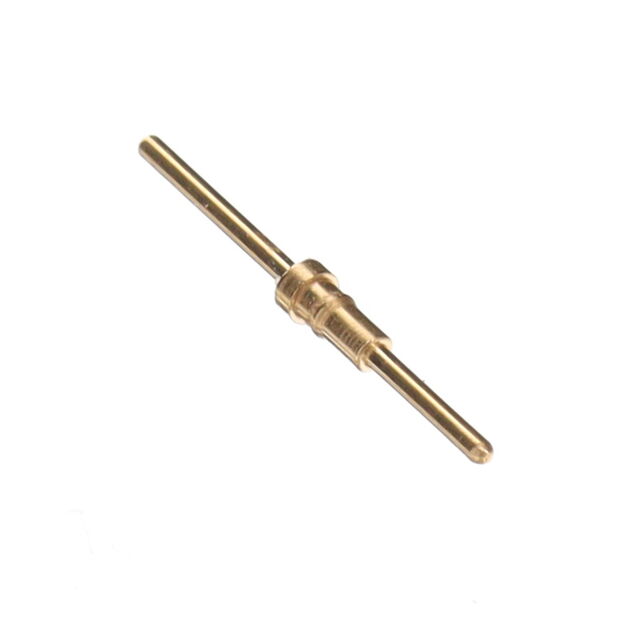

CONN PC PIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Terminal Type | Contact Finish | Mounting Type | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 5.08 Ám | 200 Áin | 0.018 in | 0.46 mm | 9.78 mm | 0.385 in | Brass Alloy | 1.02 mm | 0.04 in | Non-Insulated | 0.46 mm | 0.018 in | 0.84 mm | 0.033 in | Press-Fit | PC Pin | Tin | Through Hole | Wire | 4.45 mm | 0.175 " |
 Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | 0.018 in | 0.46 mm | 9.78 mm | 0.385 in | Brass Alloy | 1.02 mm | 0.04 in | Non-Insulated | 0.46 mm | 0.018 in | 0.84 mm | 0.033 in | Press-Fit | PC Pin | Gold | Through Hole | Wire | 4.45 mm | 0.175 " |
