SLR-342 Series

Catalog

LED RED DIFFUSED T-1 T/H

Part	Supplier Device Package	Lens Style	Voltage - Forward (Vf) (Typ)	Lens Size [diameter]	Height (Max) [Max] [z]	Millicandela Rating	Lens Transparency	Current - Test	Mounting Type	Wavelength - Dominant	Viewing Angle	Package / Case	Color	Lens Color	Configuration	Wavelength - Peak
Rohm Semiconductor SLR-342VRTJ7	T-1	Round with Domed Top	2 V	3.1 mm	5.4 mm	16 mcd	Diffused	10 mA	Through Hole	630 nm	40 °	Radial	Red	Red	Standard
Rohm Semiconductor SLR-342VCT32	T-1	Round with Domed Top	2 V	3.1 mm	5.4 mm	25 mcd	Clear	10 mA	Through Hole	630 nm	40 °	Radial	Red	Red	Standard
Rohm Semiconductor SLR-342VRT32	T-1	Round with Domed Top	2 V	3.1 mm	5.4 mm	16 mcd	Diffused	10 mA	Through Hole	630 nm	40 °	Radial	Red	Red	Standard
Rohm Semiconductor SLR-342VC3F	T-1	Round with Domed Top	2 V	3.1 mm	5.4 mm	25 mcd	Clear	10 mA	Through Hole	630 nm	40 °	Radial	Red	Red	Standard
Rohm Semiconductor SLR-342YYT32	T-1	Round with Domed Top	2.1 V	3.1 mm	5.4 mm	10 mcd	Diffused	10 mA	Through Hole	587 nm	40 °	Radial	Yellow	Yellow	Standard
Rohm Semiconductor SLR-342MCT32	T-1	Round with Domed Top	2.1 V	3.1 mm	5.4 mm	25 mcd	Clear	10 mA	Through Hole	572 nm	40 °	Radial	Green	Green	Standard
Rohm Semiconductor SLR-342MGTC7		Round with Domed Top	2.1 V	3.1 mm	5.4 mm	16 mcd	Diffused	10 mA	Through Hole		40 °	Radial	Green	Green	Standard	563 nm
Rohm Semiconductor SLR-342MGT32	T-1	Round with Domed Top	2.1 V	3.1 mm	5.4 mm	16 mcd	Diffused	10 mA	Through Hole	572 nm	40 °	Radial	Green	Green	Standard

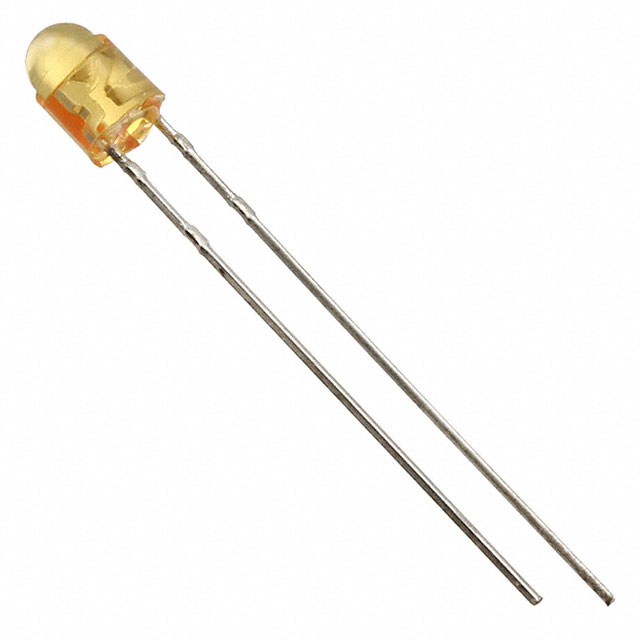

Rohm Semiconductor SLR-342DUTE7		Round with Domed Top	2 V	3.1 mm	5.4 mm	16 mcd	Diffused	10 mA	Through Hole		40 °	Radial		Orange	Standard	610 nm
