PPPC232 Series

Catalog

CONN HDR 46POS 0.1 GOLD PCB R/A

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Number of Rows [custom]	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Insulation Color	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

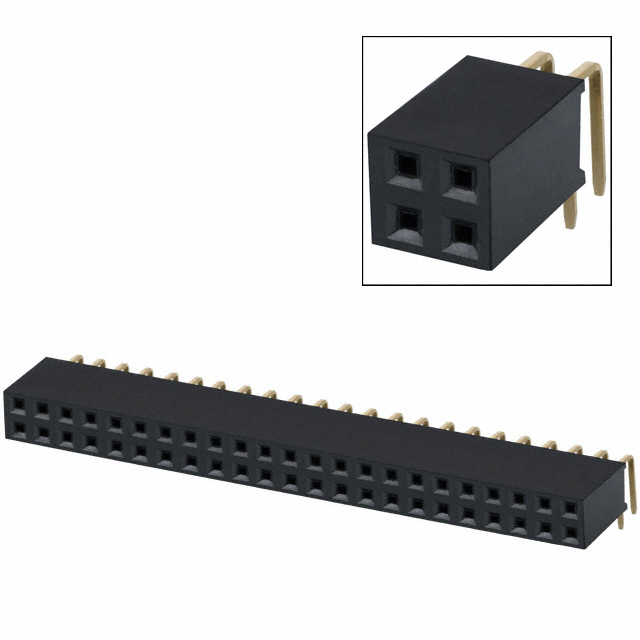

Sullins Connector Solutions PPPC232LJBN-RC	Square	Polyester	Flash	Phosphor Bronze	All	3 A	46	2	Right Angle Through Hole	Female Socket	0.1 "	2.54 mm	Gold	Flash	Header	UL94 V-0	Black	Gold	0.124 in	3.15 mm	250 V	0.1 in	2.54 mm	0.2 in	5.08 mm	-40 C	105 ░C	Solder	Push-Pull

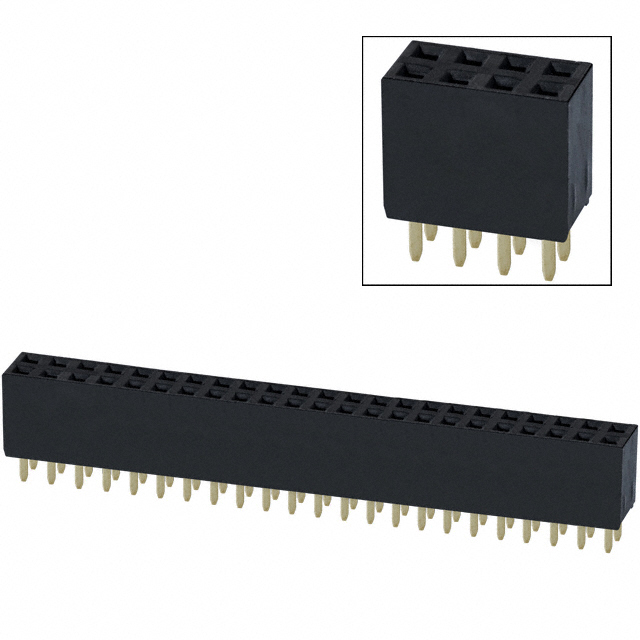

Sullins Connector Solutions PPPC232LFBN-RC	Square	Polyester	Flash	Phosphor Bronze	All	3 A	46	2	Through Hole	Female Socket	0.1 "	2.54 mm	Gold	Flash	Header	UL94 V-0	Black	Gold			250 V	0.1 in	2.54 mm			-40 C	105 ░C	Solder	Push-Pull	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPPC232LFBN	Square	Polyester	Flash	Phosphor Bronze	All	3 A	46	2	Through Hole	Female Socket	0.1 "	2.54 mm	Gold	Flash	Header	UL94 V-0	Black	Gold			250 V	0.1 in	2.54 mm			-40 C	105 ░C	Solder	Push-Pull	0.126 "	3.2 mm	0.335 "	8.51 mm
