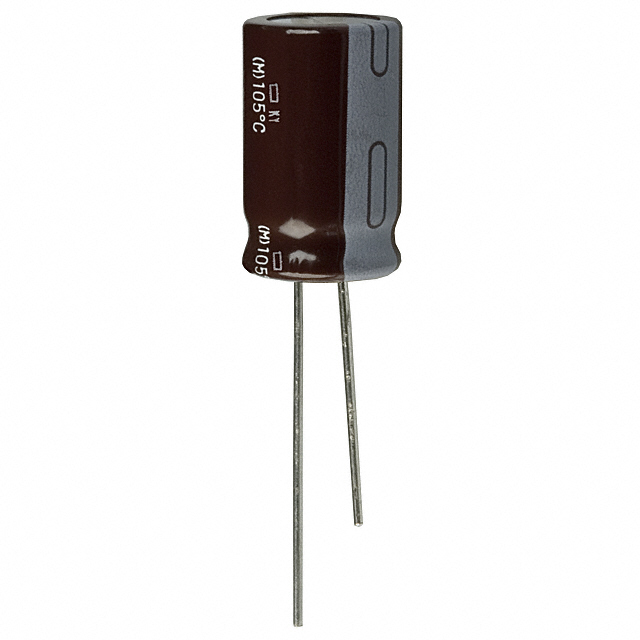

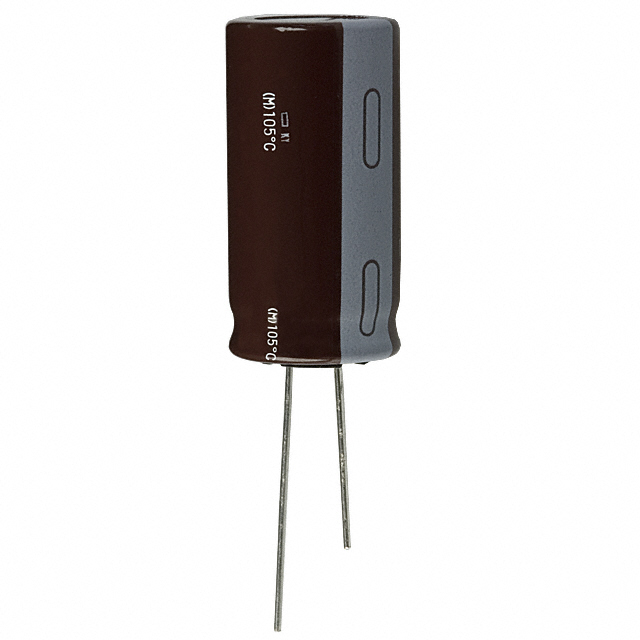

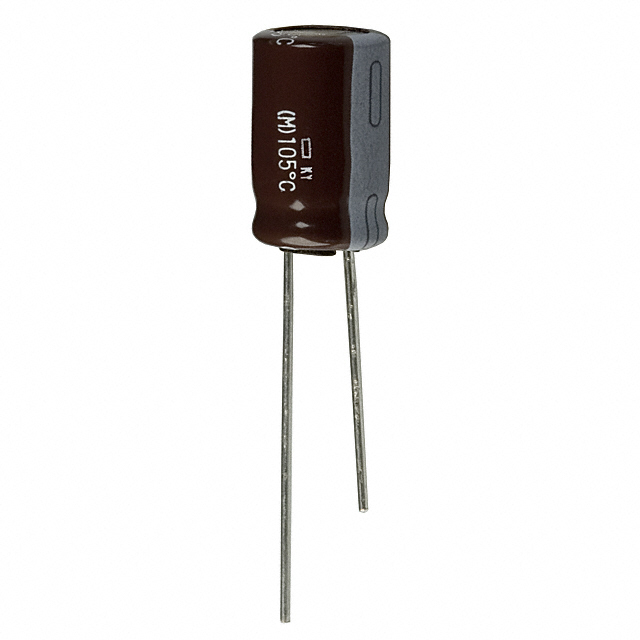

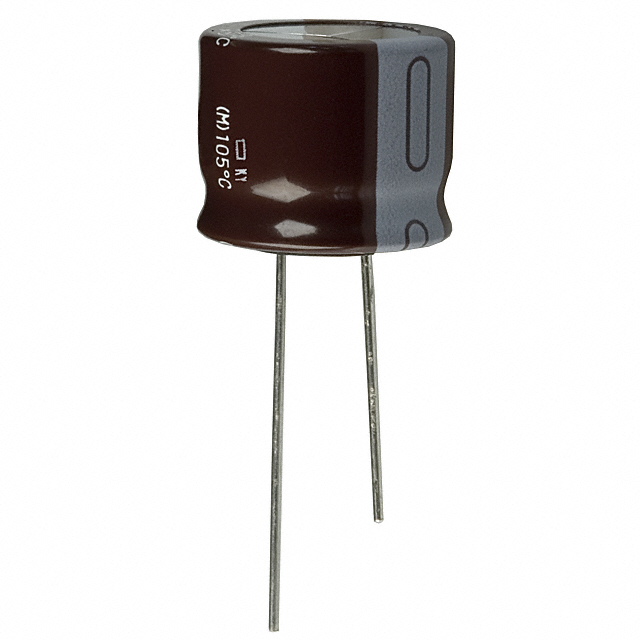

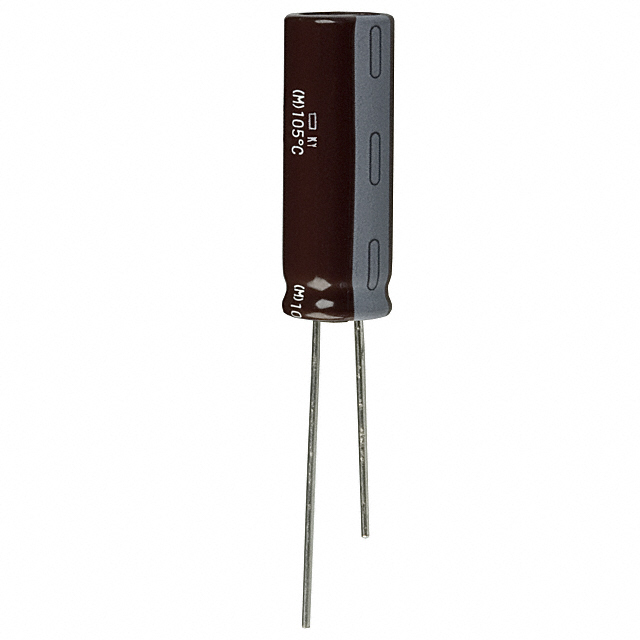

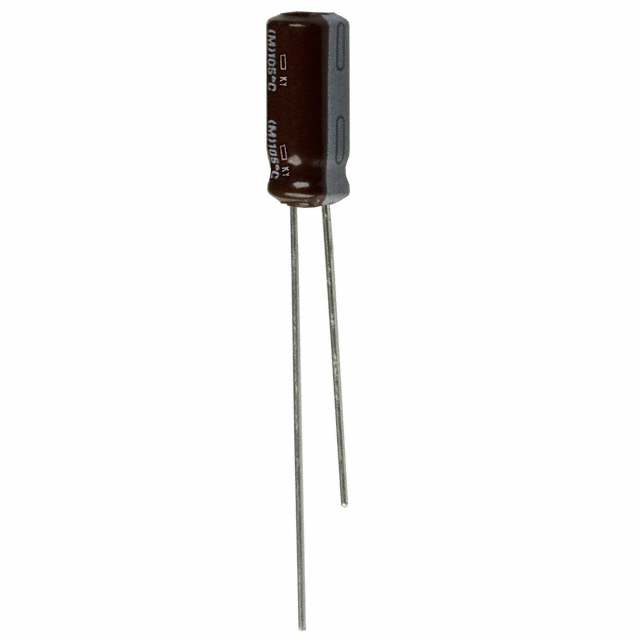

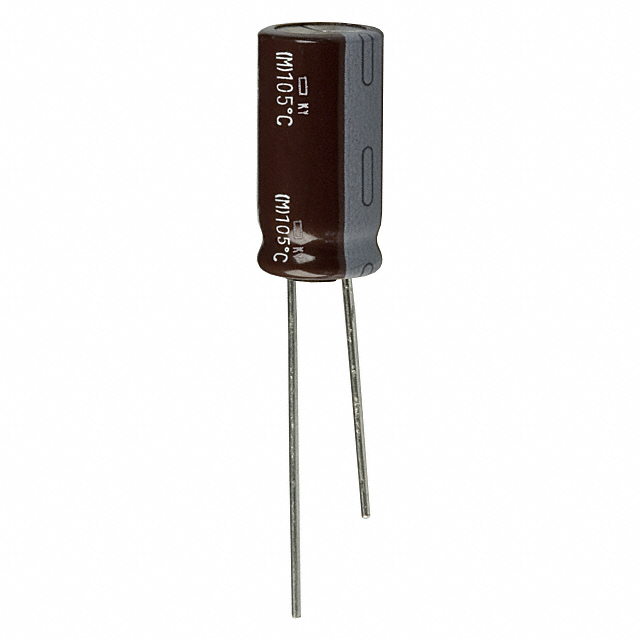

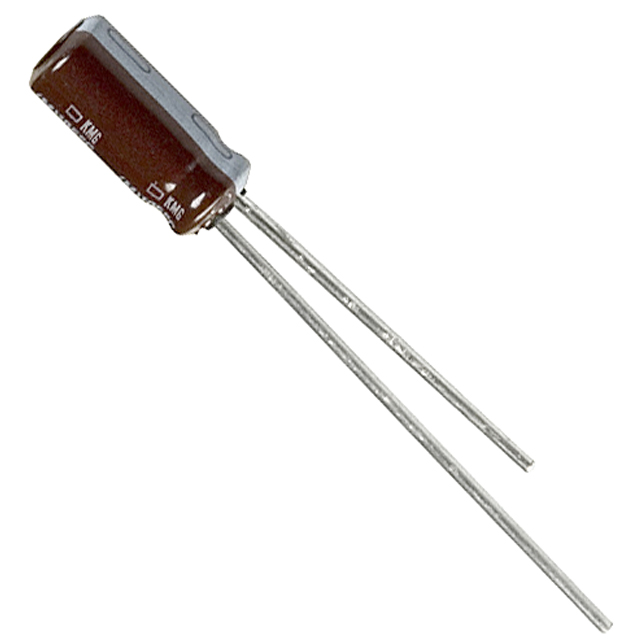

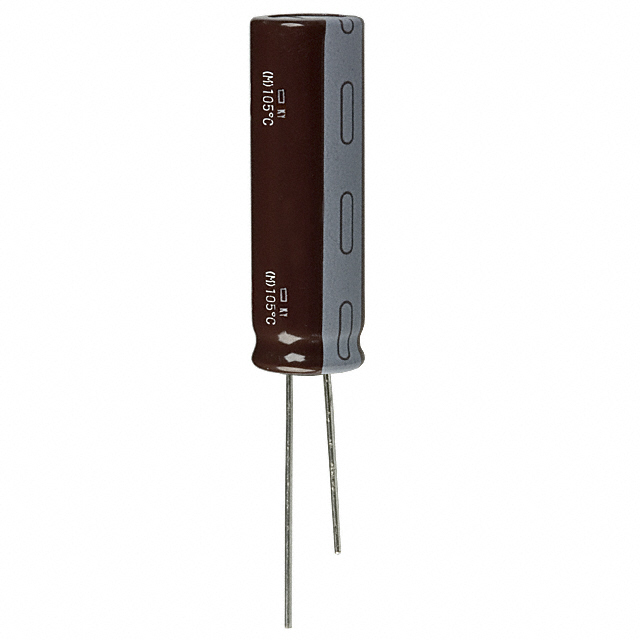

EKY-350E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 220UF 20% 35V RADIAL TH

Part	Height - Seated (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Lifetime	Polarization	Tolerance	Ripple Current	Applications	Impedance	Size / Dimension Diameter	Voltage - Rated	Lead Spacing	Mounting Type	Capacitance
Chemi-Con EKY-350ELL221MJC5S	0.551 in	-40 °C	105 °C	Can Radial	7000 Hrs	Polar	20 %	432.5 mA 865 mA	General Purpose	80 mOhms	0.394 in	35 V	0.197 in	Through Hole	220 µF
Chemi-Con EKY-350ELL272MLP1S	1.457 in	-40 °C	105 °C	Can Radial	10000 Hrs	Polar	20 %	2.7075 A 3.61 A	General Purpose	15 mOhms	0.63 in	35 V	0.295 in	Through Hole	2700 µF
Chemi-Con EKY-350ELL681MK20S	0.846 in	-40 °C	105 °C	Can Radial	10000 Hrs	Polar	20 %	1.14 A 1.9 A	General Purpose	35 mOhms	0.492 in	35 V	0.197 in	Through Hole	680 µF
Chemi-Con EKY-350ETD331MJ16S	0.689 in	-40 °C	105 °C	Can Radial	7000 Hrs	Polar	20 %	1.21 A 605 mA	General Purpose	60 mOhms	0.394 in	35 V	0.197 in	Through Hole	330 µF
Chemi-Con EKY-350ETD471MJ20S	0.846 in	-40 °C	105 °C	Can Radial	7000 Hrs	Polar	20 %	1.4 A 700 mA	General Purpose	46 mOhms	0.394 in	35 V	0.197 in	Through Hole	470 µF
Chemi-Con EKY-350ETE102MK25S	1.043 in	-40 °C	105 °C	Can Radial	10000 Hrs	Polar	20 %	1.338 A 2.23 A	General Purpose	27 mOhms	0.492 in	35 V	0.197 in	Through Hole	1000 µF
Chemi-Con EKY-350ELL330ME11D	0.492 in	-40 °C	105 °C	Can Radial	5000 Hrs	Polar	20 %	84 mA 210 mA	General Purpose	580 mOhm	0.197 in	35 V	0.079 in	Through Hole	33 µF
Chemi-Con EKY-350ELL681MJ30S	1.24 in	-40 °C	105 °C	Can Radial	7000 Hrs	Polar	20 %	1.146 A 1.91 A	General Purpose	31 mOhm	0.394 in	35 V	0.197 in	Through Hole	680 µF
Chemi-Con EKY-350ELL332MMP1S	1.457 in	-40 °C	105 °C	Can Radial	10000 Hrs	Polar	20 %	3.165 A 4.22 A	General Purpose	14 mOhm	0.709 in	35 V	0.295 in	Through Hole	3300 µF
Chemi-Con EKY-350ELL102MM15S	16.51 mm	-40 °C	105 °C	Can Radial	10000 Hrs	Polar	20 %	1.326 A 2.21 A	General Purpose	43 mOhm	0.709 in	35 V	0.295 in	Through Hole	1000 µF
