FODM452 Series

5-Pin MFP High Speed/High CMR Transistor Output Optocoupler

Catalog

5-Pin MFP High Speed/High CMR Transistor Output Optocoupler

Part	Current Transfer Ratio (Min) [Min]	Current Transfer Ratio (Max)	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Voltage - Isolation	Input Type	Number of Channels	Current - DC Forward (If) (Max) [Max]	Voltage - Output (Max) [Max]	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Current - Output / Channel [custom]
ON Semiconductor FODM452	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM453	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM452R2	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM452V	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM452R2V	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM453R2	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM453V	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM453R1V	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA
ON Semiconductor FODM452R1V	20 %	50 %	1.81 mOhm	85 °C	-40 °C	5-Mini-Flat	Surface Mount	3750 Vrms	DC	1	25 mA	20 V	350 ns	400 ns	1.6 V	8 mA

Catalog

5-Pin MFP High Speed/High CMR Transistor Output Optocoupler

Key Features

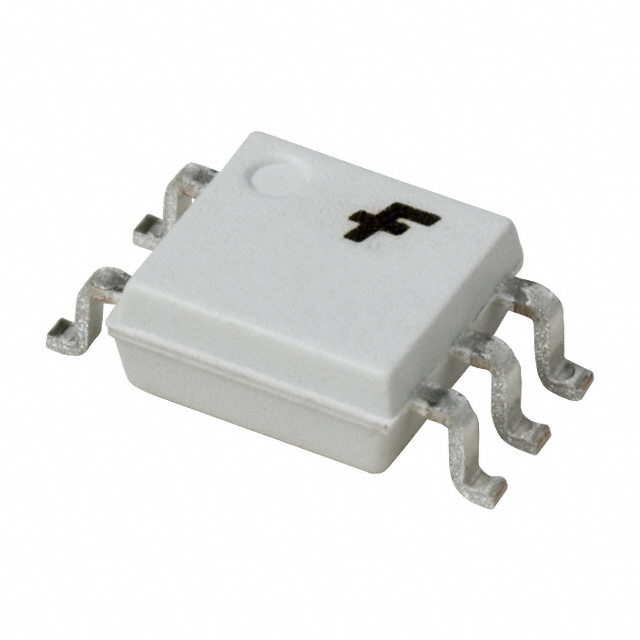

• Compact 5-pin mini flat package

• High speed-1 MBit/s

• Superior CMR-15kV/µs at VCM= 1500V (FODM453)

• Performance guaranteed over temperature (0-70°C)

• U.L. recognized (File # E90700)

• VDE0884 recognized (File # 136480)

• Orering option V, e.g., FODM452V

Description

The FODM452 and FODM453 optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor. The devices are housed in a compact 5-pin mini flat package for optimum mounting density. The FODM453 features a high CMR rating for optimum common mode transient immunity.
