325-072 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 72POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Color	Number of Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Pitch	Pitch	Card Type	Flange Feature	Contact Material	Contact Type	Gender	Contact Finish	Number of Positions/Bay/Row	Number of Positions
EDAC Inc. 325-072-540-207	Diallyl Phthalate (DAP)	2	Wire Wrap	0.25 Ám	10 Áin	3.18 mm	0.125 in	Green	2	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	Gold	36	72

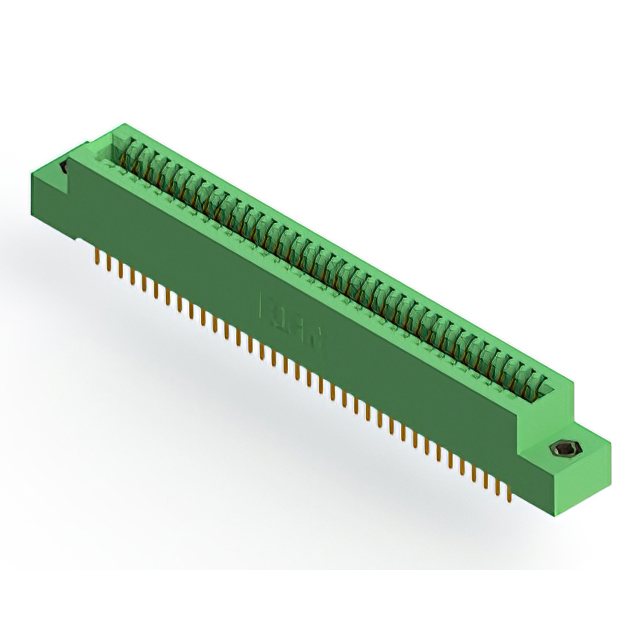

EDAC Inc. 325-072-520-207	Diallyl Phthalate (DAP)	2	Solder	0.25 Ám	10 Áin	3.18 mm	0.125 in	Green	2	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	Gold	36	72
EDAC Inc. 325-072-500-208	Diallyl Phthalate (DAP)	2	Solder Eyelet(s)	0.25 Ám	10 Áin	3.18 mm	0.125 in	Green	2	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	Gold	36	72

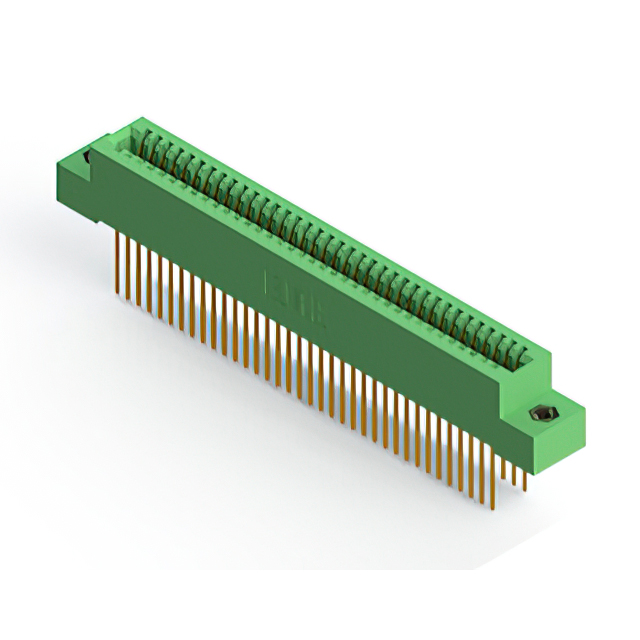

EDAC Inc. 325-072-540-208	Diallyl Phthalate (DAP)	2	Wire Wrap	0.25 Ám	10 Áin	3.18 mm	0.125 in	Green	2	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	Gold	36	72

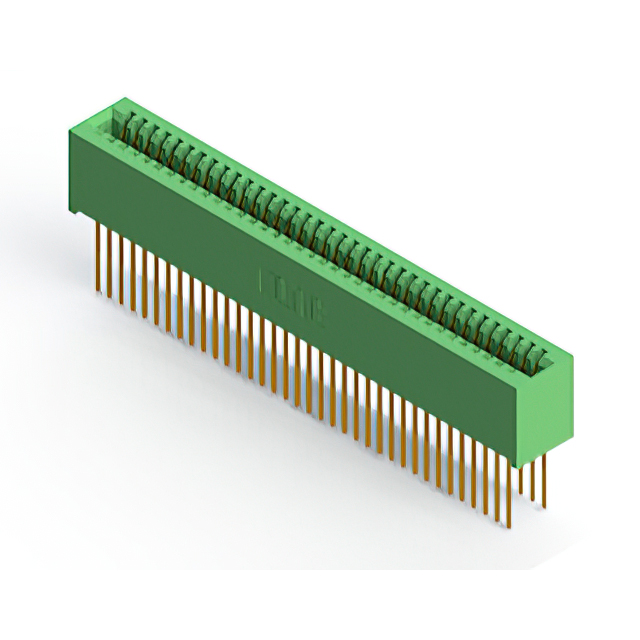

EDAC Inc. 325-072-540-201	Diallyl Phthalate (DAP)	2	Wire Wrap	0.25 Ám	10 Áin	3.18 mm	0.125 in	Green	2	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge		Copper Alloy	Cantilever	Female	Gold	36	72
EDAC Inc. 325-072-500-207	Diallyl Phthalate (DAP)	2	Solder Eyelet(s)	0.25 Ám	10 Áin	3.18 mm	0.125 in	Green	2	Through Hole	-65 ░C	125 °C	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	Gold	36	72
