725-005 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 5POS 0.100

Part	Termination Rows	Material - Insulation	Color	Mounting Type	Number of Rows	Card Type	Read Out	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Number of Positions	Pitch	Pitch	Gender	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Termination	Contact Material
EDAC Inc. 725-005-545-101	1	Polyester Thermoplastic	Black	Through Hole	1	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	5	5	0.1 "	2.54 mm	Female	Gold	-40 C	105 ░C	30 Áin	0.76 Ám	Cantilever	Press-Fit Wire Wrap	Copper Alloy
EDAC Inc. 725-005-522-101	1	Polyester Thermoplastic	Black	Through Hole	1	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	5	5	0.1 "	2.54 mm	Female	Gold	-40 C	105 ░C	30 Áin	0.76 Ám	Cantilever	Press-Fit	Copper Alloy
EDAC Inc. 725-005-540-101	1	Polyester Thermoplastic	Black	Through Hole	1	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	5	5	0.1 "	2.54 mm	Female	Gold	-40 C	105 ░C	30 Áin	0.76 Ám	Cantilever	Press-Fit Wire Wrap	Copper Alloy
EDAC Inc. 725-005-520-101	1	Polyester Thermoplastic	Black	Through Hole	1	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	5	5	0.1 "	2.54 mm	Female	Gold	-40 C	105 ░C	30 Áin	0.76 Ám	Cantilever	Press-Fit	Copper Alloy

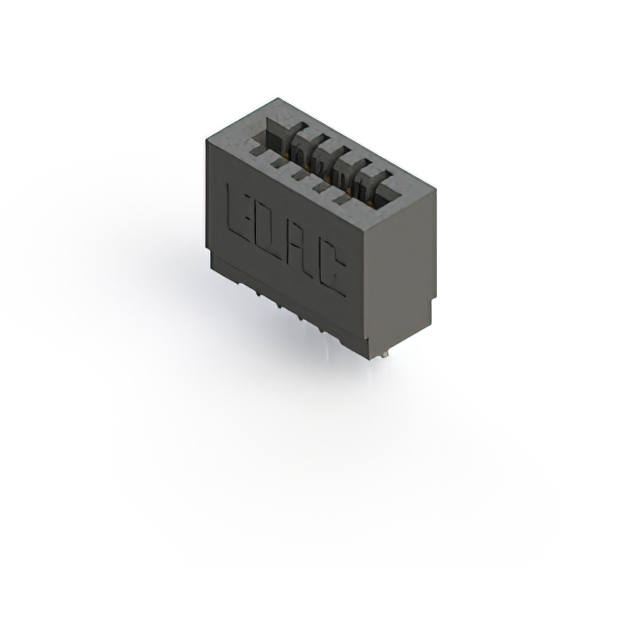

EDAC Inc. 725-005-541-101	1	Polyester Thermoplastic	Black	Through Hole	1	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	5	5	0.1 "	2.54 mm	Female	Gold	-40 C	105 ░C	30 Áin	0.76 Ám	Cantilever	Press-Fit Wire Wrap	Copper Alloy
EDAC Inc. 725-005-525-101	1	Polyester Thermoplastic	Black	Through Hole	1	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	5	5	0.1 "	2.54 mm	Female	Gold	-40 C	105 ░C	30 Áin	0.76 Ám	Cantilever	Press-Fit	Copper Alloy
