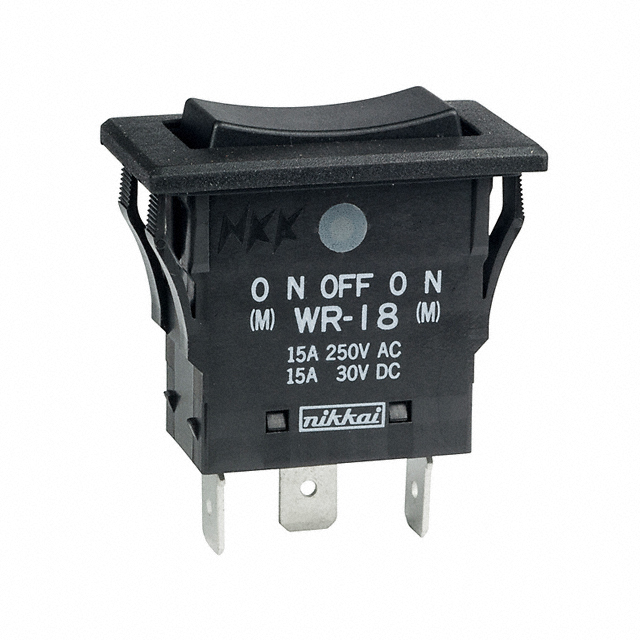

WR18AF Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 15A 125V
| Part | Electrical Life | Mechanical Life | Approval Agency | Termination Style | Ingress Protection | Actuator Type | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Features | Actuator Marking | Circuit | Voltage Rating - AC | Switch Function | Current Rating (Amps) | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 30000 Steps | EN UL | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | 30 V | 85 °C | -25 °C | Epoxy Sealed Terminals | No Marking | SPDT | 125 V | Mom-Off-Mom | 15 A | Black | 34.2 mm | 17.2 mm | Panel Mount Snap-In |
NKK Switches | 10000 Cycles | 30000 Steps | EN UL | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | 30 V | 85 °C | -25 °C | Epoxy Sealed Terminals | No Marking | SPDT | 125 V | Mom-Off-Mom | 15 A | Black | 34.2 mm | 17.2 mm | Panel Mount Snap-In |
 NKK Switches | 10000 Cycles | 30000 Steps | EN UL | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | 30 V | 85 °C | -25 °C | Epoxy Sealed Terminals | No Marking | SPDT | 125 V | Mom-Off-Mom | 15 A | Black | 34.2 mm | 17.2 mm | Panel Mount Snap-In |
NKK Switches | 10000 Cycles | 30000 Steps | EN UL | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | 30 V | 85 °C | -25 °C | Epoxy Sealed Terminals | No Marking | SPDT | 125 V | Mom-Off-Mom | 15 A | Black | 34.2 mm | 17.2 mm | Panel Mount Snap-In |
NKK Switches | 10000 Cycles | 30000 Steps | EN UL | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | 30 V | 85 °C | -25 °C | Epoxy Sealed Terminals | No Marking | SPDT | 125 V | Mom-Off-Mom | 15 A | Black | 34.2 mm | 17.2 mm | Panel Mount Snap-In |
