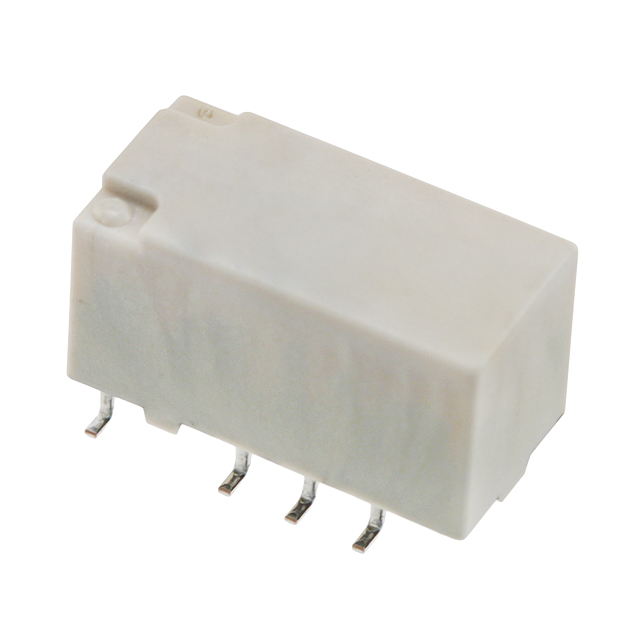

TX2SL Series

Manufacturer: Panasonic Electronic Components

Catalog

RELAY TELECOM DPDT 2A 12V

Part	Coil Resistance	Load - Max Switching	Contact Material	Contact Form	Release Time	Approval Agency	Termination Style	Operate Time	Coil Current	Mounting Type	Switching Voltage [Max]	Coil Type	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Relay Type	Contact Rating (Current)	Seal Rating	Must Release Voltage
Panasonic Electronic Components TX2SL-12V	1030 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	11.7 mA	Surface Mount	220 VDC	Non Latching	9 VDC	85 °C	-40 C	12 VDC	Telecom	2 A	Sealed - Fully	1.2 VDC
Panasonic Electronic Components TX2SL-24V-1-Z	4.11 kOhms	220 VA	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	5.8 mA	Surface Mount	220 VDC	Non Latching	18 VDC	85 °C	-40 C	24 VDC	Telecom	1 A	Sealed - Fully	2.4 VDC
Panasonic Electronic Components TX2SL-4.5V	145 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	31 mA	Surface Mount	220 VDC	Non Latching	3.38 VDC	85 °C	-40 C	4.5 VDC	Telecom	2 A	Sealed - Fully	0.45 VDC
Panasonic Electronic Components TX2SL-L-4.5V-Z	203 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	22.2 mA	Surface Mount	220 VDC	Latching Single Coil	3.38 VDC	85 °C	-40 C	4.5 VDC	Telecom	2 A	Sealed - Fully
Panasonic Electronic Components TX2SL-L-5V	250 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	0.02 A	Surface Mount	220 VDC	Latching Single Coil	3.75 VDC	85 °C	-40 C	5 VDC	Telecom	2 A	Sealed - Fully
Panasonic Electronic Components TX2SL-L2-5V	125 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	40 mA	Surface Mount	220 VDC	Dual Coil Latching	3.75 VDC	85 °C	-40 C	5 VDC	Telecom	2 A	Sealed - Fully
Panasonic Electronic Components TX2SL-3V	64.3 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	46.7 mA	Surface Mount	220 VDC	Non Latching	2.25 VDC	85 °C	-40 C		Telecom	2 A	Sealed - Fully	0.3 VDC
Panasonic Electronic Components TX2SL-9V-Z	579 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	15.5 mA	Surface Mount	220 VDC	Non Latching	6.75 VDC	85 °C	-40 C	9 VDC	Telecom	2 A	Sealed - Fully	0.9 VDC
Panasonic Electronic Components TX2SL-9V	579 Ohms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	15.5 mA	Surface Mount	220 VDC	Non Latching	6.75 VDC	85 °C	-40 C	9 VDC	Telecom	2 A	Sealed - Fully	0.9 VDC
Panasonic Electronic Components TX2SL-24V-Z	4.11 kOhms	60 W 440 VA	Gold (Au) Silver (Ag)	DPDT (2 Form C)	4 ms	BSI cURus	Gull Wing	4 ms	5.8 mA	Surface Mount	220 VDC	Non Latching	18 VDC	85 °C	-40 C	24 VDC	Telecom	2 A	Sealed - Fully	2.4 VDC
