280755 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

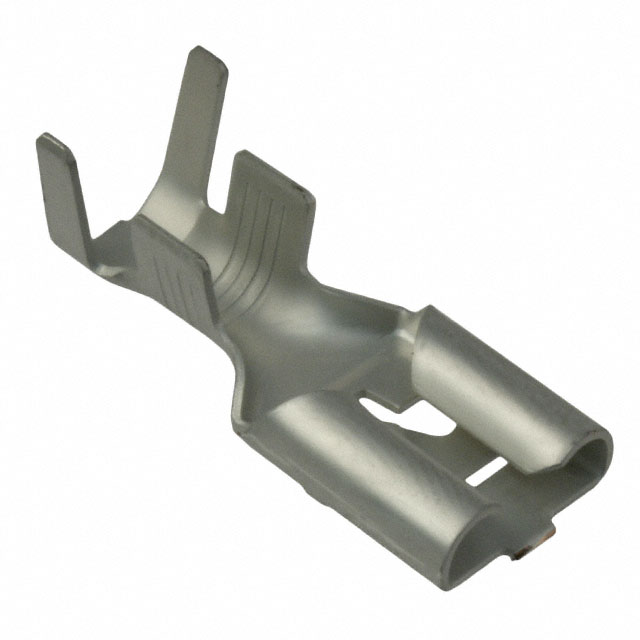

CONN QC RCPT 7-10AWG 0.375 CRIMP
| Part | Terminal Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation | Length - Overall [x] | Length - Overall [x] | Mounting Type | Termination | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Tab Width | Tab Width | Contact Finish | Gender | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Standard | 0.197 in | 6.99 mm | 5 mm | 0.275 in | Non-Insulated | 29 mm | 1.142 " | Free Hanging (In-Line) | Crimp | Phosphor Bronze | 10 AWG | 7 AWG | 0.375 in | 9.53 mm | Tin | Female | 0.048 in | 1.22 mm |
