500SDP1 Series

Manufacturer: E-Switch

Catalog

SWITCH SLIDE DPDT 5A 120V

Part	Switch Travel	Actuator Material	Electrical Life	Mechanical Life	Mounting Type	Contact Timing	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Current Rating (Amps)	Circuit	Actuator Length [x]	Features	Switch Function	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Contact Finish	Contact Material
E-Switch 500SDP1S2M3QEB	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Panel Mount	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	7.24 mm	Epoxy Sealed Terminals	On-On	Quick Connect - 0.062" (1.5mm)	120 V	28 V	Silver	Copper Alloy

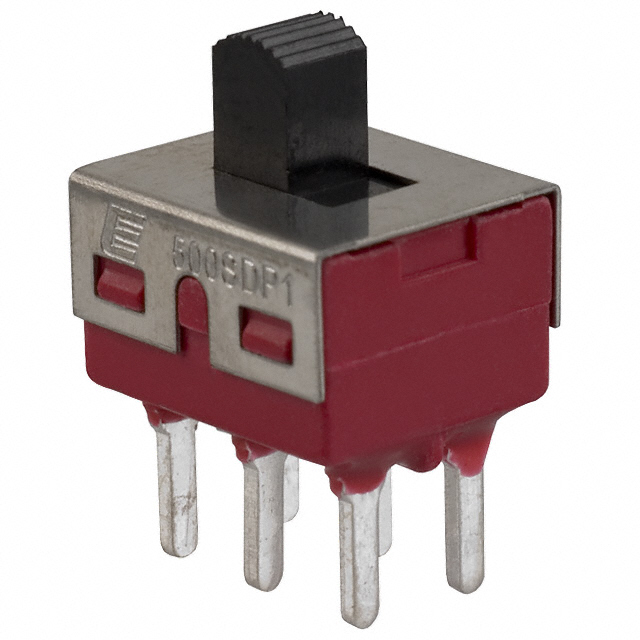

E-Switch 500SDP1S1M2QEA	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Through Hole	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	5.08 mm	Epoxy Sealed Terminals	On-On	PC Pin	120 V	28 V	Silver	Copper Alloy
E-Switch 500SDP1S4M7QEA	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Right Angle Through Hole Vertical	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	3.2 mm	Epoxy Sealed Terminals	On-On	PC Pin	120 V	28 V	Silver	Copper Alloy
E-Switch 500SDP1S4M1QEB	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Panel Mount	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	3.56 mm	Epoxy Sealed Terminals	On-On	Solder Lug	120 V	28 V	Silver	Copper Alloy
E-Switch 500SDP1S4M2QEA	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Through Hole	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	3.56 mm	Epoxy Sealed Terminals	On-On	PC Pin	120 V	28 V	Silver	Copper Alloy
E-Switch 500SDP1S2M7QEA	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Right Angle Through Hole Vertical	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	6.88 mm	Epoxy Sealed Terminals	On-On	PC Pin	120 V	28 V	Silver	Copper Alloy
E-Switch 500SDP1S1M2QEB	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Panel Mount	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	5.08 mm	Epoxy Sealed Terminals	On-On	PC Pin	120 V	28 V	Silver	Copper Alloy
E-Switch 500SDP1S1M6REA	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Right Angle Through Hole	Not Specified	85 °C	-30 ░C	Standard	0.4 VA	DPDT	4.72 mm	Epoxy Sealed Terminals	On-On	PC Pin	20 V	20 V	Gold	Copper Alloy
E-Switch 500SDP1S1M51QEA	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Through Hole	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	5.08 mm	Epoxy Sealed Terminals	On-On	Wire Wrap	120 V	28 V	Silver	Copper Alloy
E-Switch 500SDP1S2M2QEA	2.16 mm	Polyamide (PA) Nylon	30000 Cycles	30000 Steps	Through Hole	Not Specified	85 °C	-30 ░C	Standard	5 A	DPDT	7.24 mm	Epoxy Sealed Terminals	On-On	PC Pin	120 V	28 V	Silver	Copper Alloy
