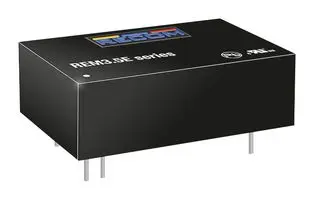

REM3.5E Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3.5W 9-18VIN 12VOUT 290MA

...

Part	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Approval Agency	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Features	Voltage - Output 1	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Recom Power REM3.5E-1212S/R8/A	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	18 V	1	Medical	CB cURus	8 kV	290 mA	9 V	OCP OVP SCP	12 V

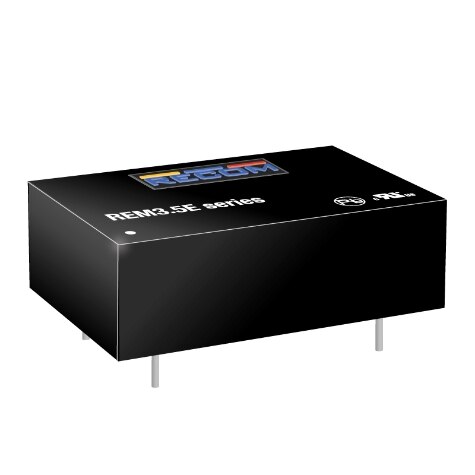

Recom Power REM3.5E-4824S/R8/A/X1	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	75 V	1	Medical	CB cURus	8 kV	145 mA	36 V	OCP OVP SCP UVLO	24 V	83 %
Recom Power REM3.5E-2409D/R8/A/X1	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	36 V	2	Medical	CB cURus	8 kV	194 mA	18 V	OCP OVP SCP UVLO	9 V		-9 V
Recom Power REM3.5E-0515D/R10/A/CTRL	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	9 V	2	Medical	CB cURus	10000 VDC		4.5 V	OCP OVP Remote On/Off SCP	15 V	83 %	-15 V	117 mA	117 mA
Recom Power REM3.5E-2412D/R8/A/CTRL/X1	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	36 V	2	Medical	CB cURus	8 kV		18 V	OCP OVP Remote On/Off SCP UVLO	12 V	83 %	-12 V		145 mA	145 mA
Recom Power REM3.5E-0509D/R8/A/X1	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	9 V	2	Medical	CB cURus	8 kV	194 mA	4.5 V	OCP OVP SCP UVLO	9 V	80 %	-9 V
Recom Power REM3.5E-1215D/R10/A	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	18 V	2	Medical	CB cURus	10000 VDC		9 V	OCP OVP SCP	15 V		-15 V	117 mA	117 mA
Recom Power REM3.5E-1215D/R6/A/SMD	24-SMD Module 18 Leads	0.8 "	0.43 in	31.8 mm	10.9 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Surface Mount	3.5 W	18 V	2	Medical	CB cURus	6000 VDC		9 V	OCP OVP SCP	15 V		-15 V	117 mA	117 mA
Recom Power REM3.5E-1215S/R8/A/CTRL/X1	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	18 V	1	Medical	CB cURus	8 kV	233 mA	9 V	OCP OVP Remote On/Off SCP UVLO	15 V
Recom Power REM3.5E-4812D/R10/A/X1	24-DIP Module 7 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	85 °C	-40 C	Through Hole	3.5 W	75 V	2	Medical	CB cURus	10000 VDC		36 V	OCP OVP SCP UVLO	12 V	83 %	-12 V		145 mA	145 mA
