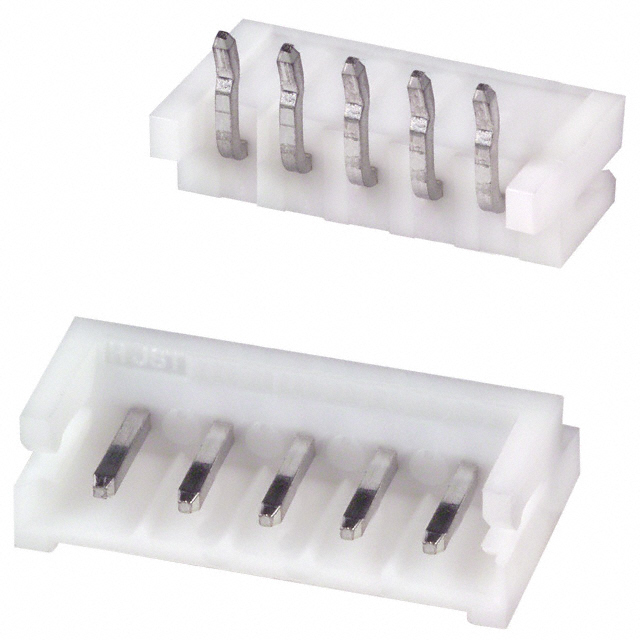

S5B-EH(L Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 5POS 2.5MM
| Part | Material Flammability Rating | Termination | Number of Positions | Shrouding | Voltage Rating | Contact Shape | Insulation Color | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Mounting Type | Insulation Height | Insulation Height | Fastening Type | Insulation Material | Connector Type | Number of Positions Loaded | Current Rating (Amps) | Contact Material | Style | Contact Type | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | UL94 V-0 | Press-Fit Solder | 5 | Shrouded - 3 Wall | 250 V | Square | Natural | 4 mm | 0.157 in | 85 °C | -25 °C | 2.5 mm | 0.098 in | Right Angle Through Hole | 0.165 in | 4.2 mm | Latch Lock | Nylon 6/6 Polyamide (PA66) | Header | All | 3 A | Brass | Board to Cable/Wire | Male Pin | 1 | 0.126 " | 3.2 mm | Tin |
