84316 Series
Manufacturer: Belden Inc.
Beta
⌘K

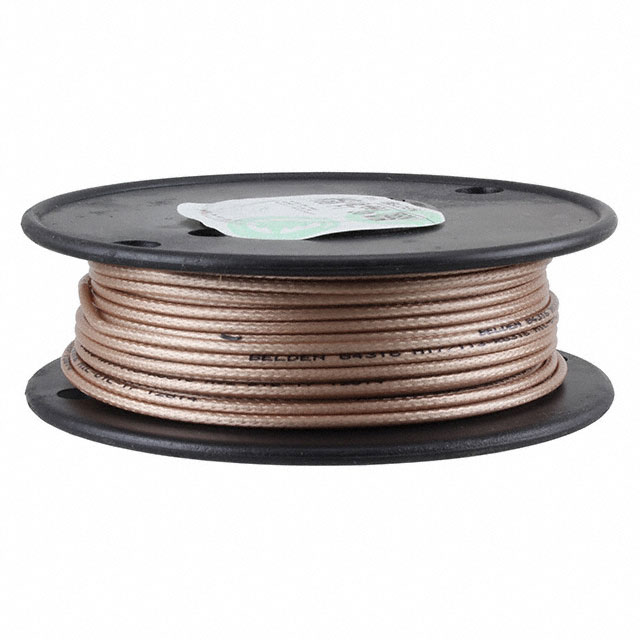

COAXIAL CABLE, MIL-C-17G, RG316, 26 AWG, 50 OHM, 100 FT, 30.48 M
| Part | Shield Coverage | Shield Material | Dielectric Material | Conductor Material | VoP, Velocity of Propagation | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket (Insulation) Material | Shield Type | Length | Length | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Jacket Color | Usage | Cable Group | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % | Copper Silver Coated | Tetrafluoroethylene (TFE) | Copper Covered Silver Coated Steel | 69.5 | -70 °C | 200 °C | 1.47 mm | 0.058 in | Fluorinated Ethylene-Propylene (FEP) | Braid | 100 ' | 30.48 m | 26 AWG | 7 | 34 AWG | Coaxial | 2.44 mm | 0.096 " | 50 Ohms | Brown | ||||
 Belden Inc. | 95 % | Copper Silver Coated | Polytetrafluoroethylene (PTFE) | Copper Covered Silver Coated Steel | 70 | -70 °C | 200 °C | 1.52 mm | 0.06 in | Fluorinated Ethylene-Propylene (FEP) | Braid | 26 AWG | 7 | 34 AWG | Coaxial | 2.48 mm | 0.098 in | 50 Ohms | Brown | Aerospace | RG-316 | 152.4 m | 500 ft | ||
Belden Inc. | 95 % | Copper Silver Coated | Polytetrafluoroethylene (PTFE) | Copper Covered Silver Coated Steel | 70 | -70 °C | 200 °C | 1.52 mm | 0.06 in | Fluorinated Ethylene-Propylene (FEP) | Braid | 26 AWG | 7 | 34 AWG | Coaxial | 2.48 mm | 0.098 in | 50 Ohms | Brown | Aerospace | RG-316 | 304.8 m | 1000 ft |
