UT002 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CONN RCPT HSNG MALE 28POS PNL MT
| Part | Shell Material | Contact Size | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Ingress Protection Description | Ingress Protection IP Rating | Type | Material Flammability Rating | Shielding | Contact Shape | Insert Material | Mounting Type | Fastening Type | Housing Color | Number of Positions | Note | Connector Type | Orientation | Shell Finish | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Feature | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

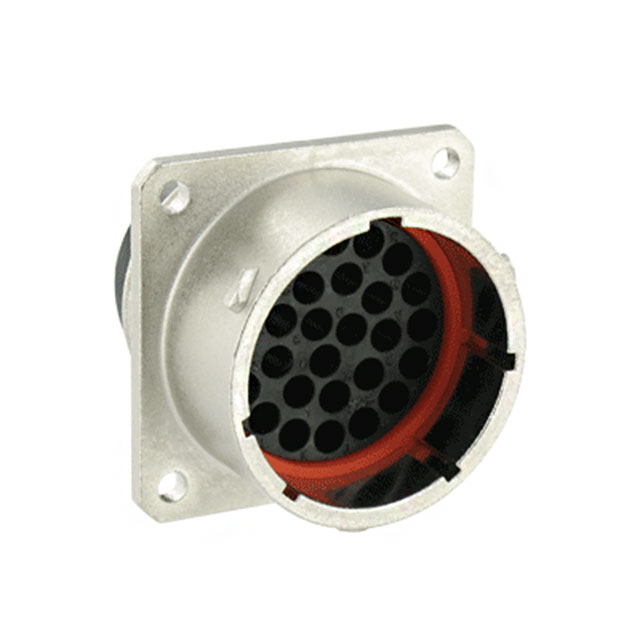

 Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 28 | 20 | Dust Tight Water Resistant Waterproof | IP68 IP69K | For Male Pins | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 28 | Contacts Not Included | Receptacle Housing | N (Normal) | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |

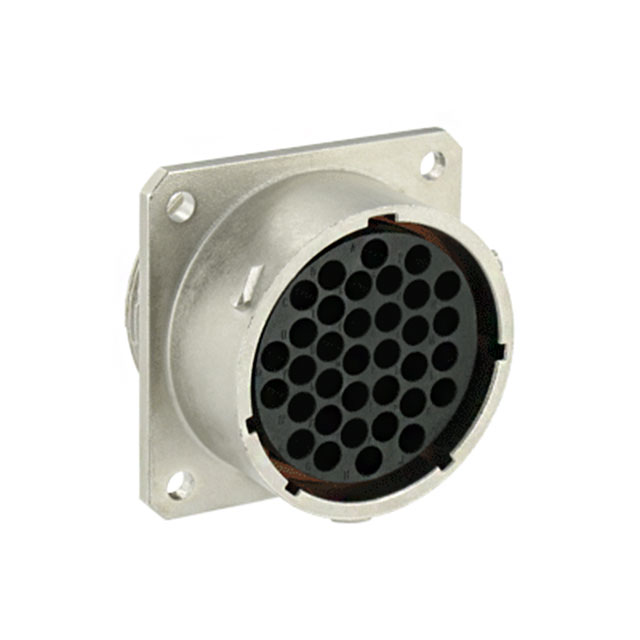

 Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 35 | 22 | Dust Tight Water Resistant Waterproof | IP68 IP69K | For Female Sockets | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 35 | Contacts Not Included | Receptacle Housing | N (Normal) | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |
Amphenol Aerospace Operations | Aluminum Alloy | 16 S | 48 | 24 | For Male Pins | UL94 V-0 | Shielded | Circular | Glass Filled Thermoplastic | Panel Mount | Bayonet Lock | Silver | 48 | Contacts Not Included | Receptacle Housing | N (Normal) | Tin | -55 °C | 125 °C | Flange | Crimp | ||

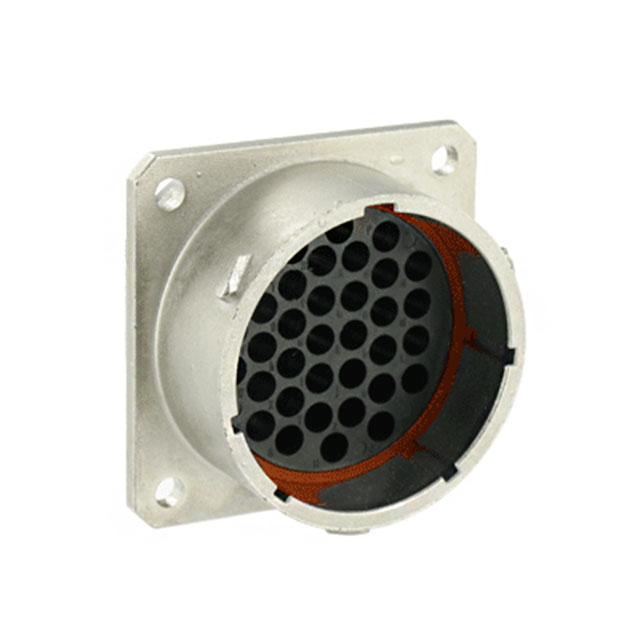

 Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 35 | 22 | Dust Tight Water Resistant Waterproof | IP68 IP69K | For Male Pins | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 35 | Contacts Not Included | Receptacle Housing | N (Normal) | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |
Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 28 | 20 | Dust Tight Waterproof | IP67 | For Male Pins | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 28 | Contacts Not Included | Receptacle Housing | W | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |

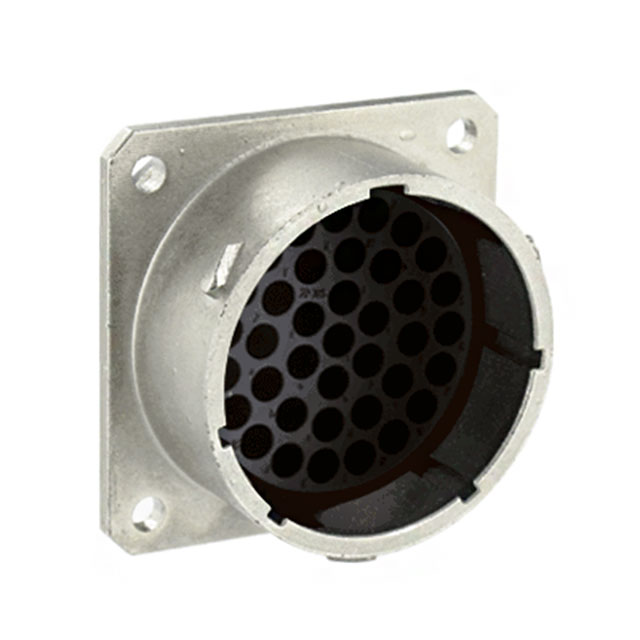

 Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 38 | 22 | Dust Tight Waterproof | IP67 | For Male Pins | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 38 | Contacts Not Included | Receptacle Housing | N (Normal) | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |

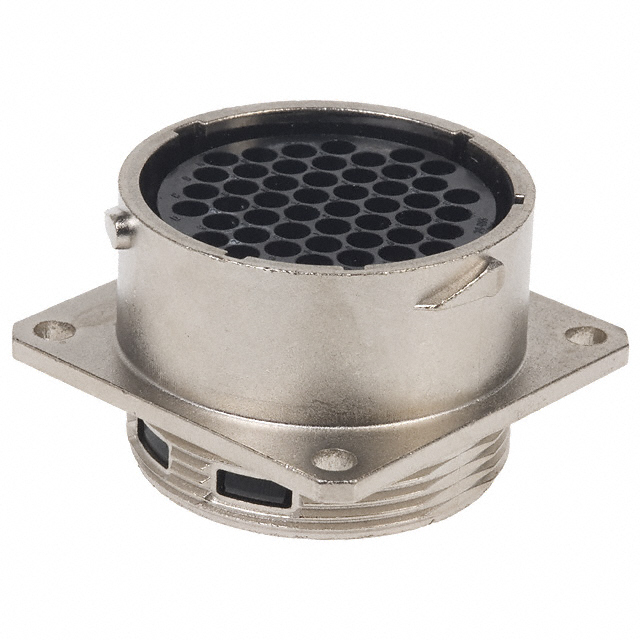

Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 48 | 24 | Dust Tight Waterproof | IP67 | For Female Sockets | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 48 | Contacts Not Included | Receptacle Housing | X | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |
 Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 48 | 24 | Dust Tight Waterproof | IP67 | For Female Sockets | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 48 | Contacts Not Included | Receptacle Housing | N (Normal) | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |

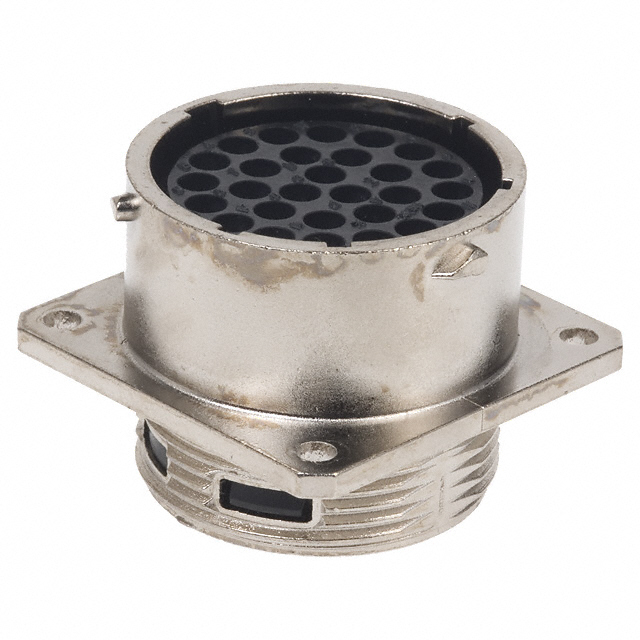

 Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 28 | 20 | Dust Tight Waterproof | IP67 | For Female Sockets | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 28 | Contacts Not Included | Receptacle Housing | N (Normal) | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |

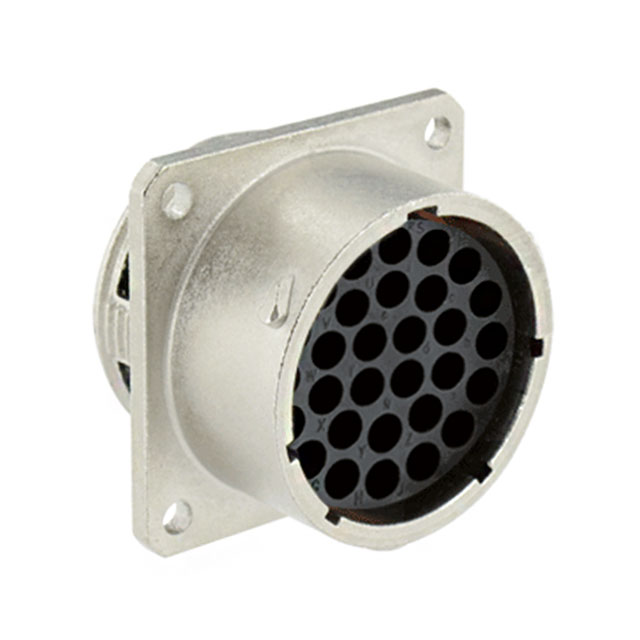

 Amphenol Aerospace Operations | Halogen Free Zinc Alloy | 16 S | 30 | 20 | Dust Tight Waterproof | IP67 | For Female Sockets | UL94 V-0 | Shielded | Circular | Nylon 6/6 PA66 Polyamide | Panel Mount | Bayonet Lock | Silver | 30 | Contacts Not Included | Receptacle Housing | N (Normal) | Nickel | -40 °C | 105 °C | Flange | Crimp Solder |
