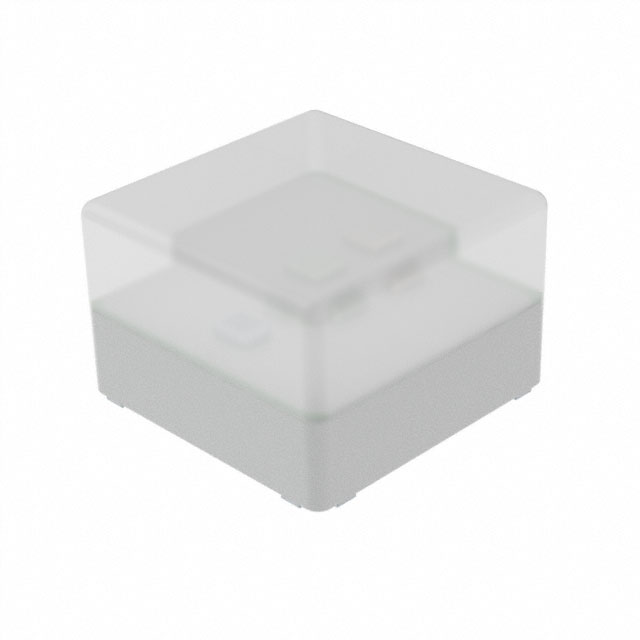

IN-B101 Series
Manufacturer: Inolux Corporation
Beta
⌘K
LED RGB TOP VIEW SMD
| Part | Wavelength - Peak Colors | Wavelength - Peak (Blue) | Wavelength - Peak (Red) | Wavelength - Peak (Green) | Configuration | Current - Test Colors | Current - Test (Red) | Current - Test (Blue) | Current - Test (Green) | Height (Max) | Wavelength - Dominant Color | Wavelength - Dominant (Red) | Wavelength - Dominant (Green) | Wavelength - Dominant (Blue) | Size / Dimension Length | Size / Dimension Width | Millicandela Rating Colors | Millicandela Rating (Red) | Millicandela Rating (Green) | Millicandela Rating (Blue) | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Green) | Voltage - Forward (Vf) (Typ) (Blue) | Voltage - Forward (Vf) (Typ) (Red) | Mounting Type | Package Name | Color | Lens Style | Viewing Angle | Lens Size | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Inolux Corporation | Blue Green Red | 480 nm | 629 nm | 520 nm | Common Anode | Blue Green Red | 10 mA | 10 mA | 10 mA | 0.75 mm | Blue Green Red | 621 nm | 531 nm | 470 nm | 1 mm | 1 mm | Blue Green Red | 58 mcd | 85 mcd | 17 mcd | Blue Green Red | 3.4 V | 3.4 V | 2.4 V | Surface Mount | SMD | Blue (RGB) Green Red | Flat Top Square | 140 ° | 1 mm | 0404 (1010 Metric) |
