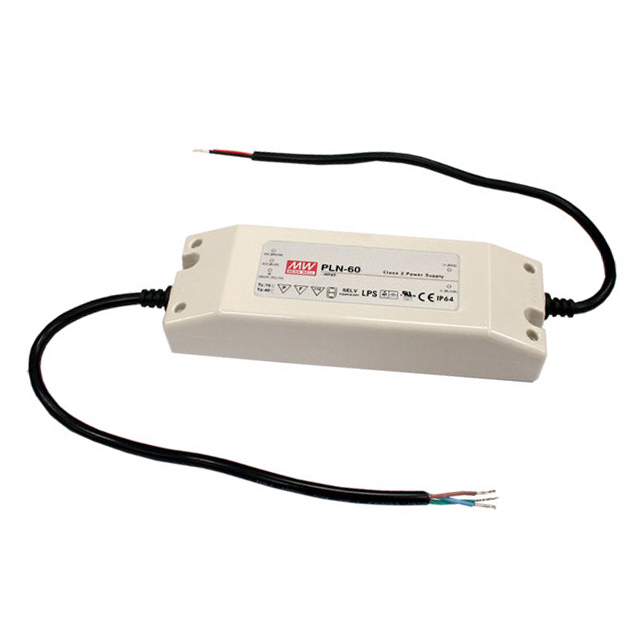

PLN-60 Series

Catalog

LED DRVR CC AC/DC 16.8-24V 2.5A

Part	Mounting Type	Number of Outputs	Topology	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Termination Style	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]	Type	Ratings	Voltage - Input (Min) [Min]	Features
MEAN WELL USA Inc. PLN-60-24	Chassis Mount	1	AC DC Converter	295 VAC	2.5 A	60 W	Wire Leads	87 %	-30 ░C	50 °C	181 mm	2.42 in	7.13 in	61.5 mm	1.38 in	35 mm	CB CE cURus PSE TUV	3750 VDC	16.8 V	24 V	Constant Current	IP64	90 VAC	OCP OTP OVP SCP
MEAN WELL USA Inc. PLN-60-48	Chassis Mount	1	AC DC Converter	295 VAC	1.3 A	62 W	Wire Leads	89 %	-30 ░C	50 °C	181 mm	2.42 in	7.13 in	61.5 mm	1.38 in	35 mm	CB CE PSE TUV UR	3750 VDC	33.6 V	48 V	Constant Current	IP64	90 VAC	OCP OTP OVP SCP
