GU256 Series

Catalog

MODULE VF GRAPHIC DISPLAY 256X64

Part	Format Height (Dots)	Format Width (Dots)	Viewing Area Width	Viewing Area Length	Display Type	Outline Height	Outline Length	Outline Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Interface	Number of Dots (Height)	Number of Dots (Width)	Display Rows	Display Columns	Voltage - Supply	Interface Data Width

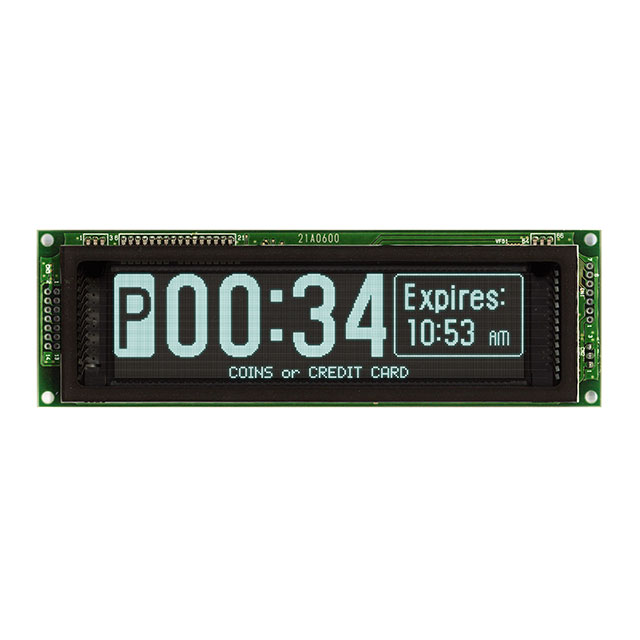

Noritake U.S.A., Inc. GU256X64D-7000BX	7 Dots	5 Dots	28.65 mm	115.05 mm	Graphic	22.25 mm	159 mm	50 mm	5.25 V	4.75 V	-40 °C	85 °C	Parallel/Serial	64 dots	256 dots
Noritake U.S.A., Inc. GU256X64F-9900

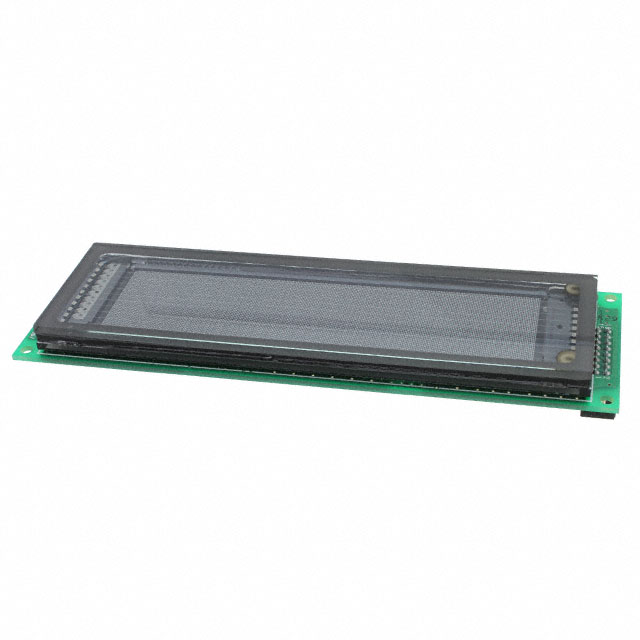

Noritake U.S.A., Inc. GU256X64D-3900B			28.65 mm	115.05 mm	Graphic	11.5 mm	159 mm	50 mm	5.25 V	4.75 V	-40 °C	85 °C	Parallel/Serial	64 dots	256 dots
Noritake U.S.A., Inc. GU256X64F-9372			41.45 mm	166.25 mm	Graphic	13.2 mm	222 mm	78 mm			-40 °C	85 °C	Parallel			64	256 px	5 VDC	8 Bit

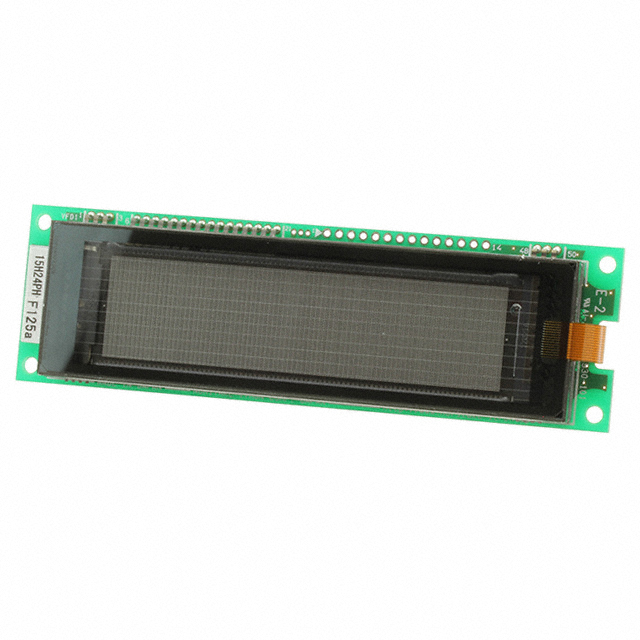

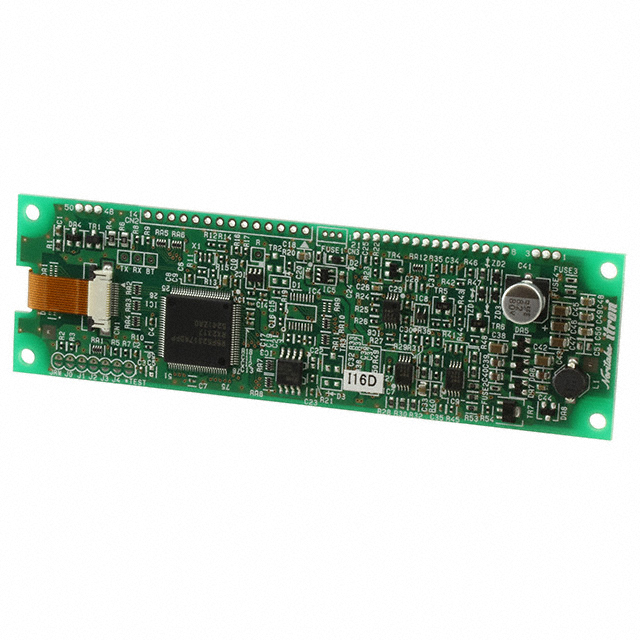

Noritake U.S.A., Inc. GU256X64C-D903M	7 Dots	5 Dots	20.68 mm	83.08 mm	Graphic	9.9 mm	125 mm	37 mm			-40 °C	85 °C	I2C SPI	64 dots	256 dots	2	8	5 VDC

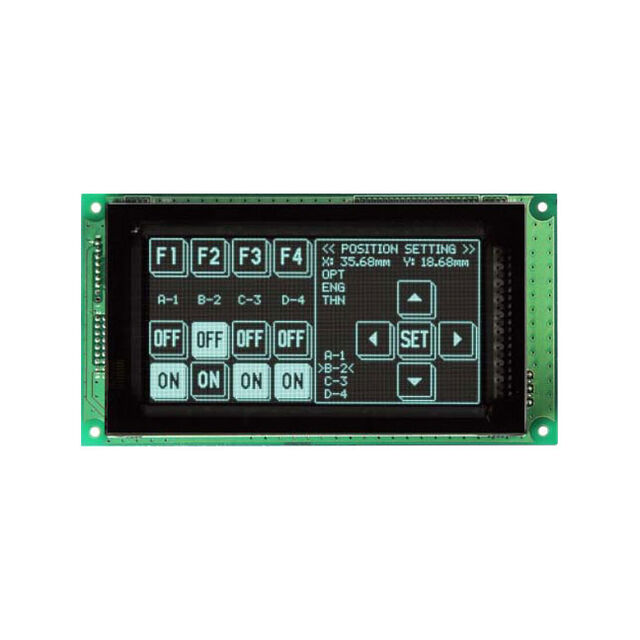

Noritake U.S.A., Inc. GU256X128D-3900B			57.45 mm	115.05 mm	Graphic	16 mm	170 mm	90 mm			-40 °C	85 °C	Parallel/Serial	128 dots	256 dots	128 px	256 px	5 VDC

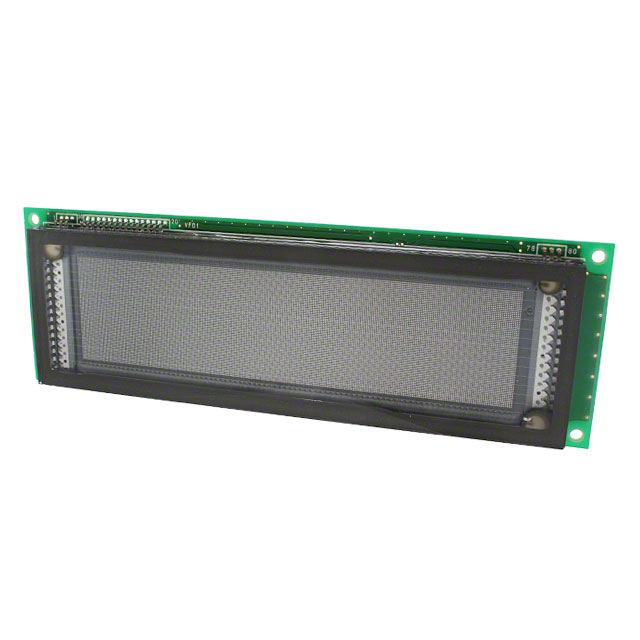

Noritake U.S.A., Inc. GU256X64E-3900B			35.05 mm	140.65 mm	Graphic	12.9 mm	188 mm	62 mm	5.25 V	4.75 V	-40 °C	70 °C	Parallel/Serial	64 dots	256 dots

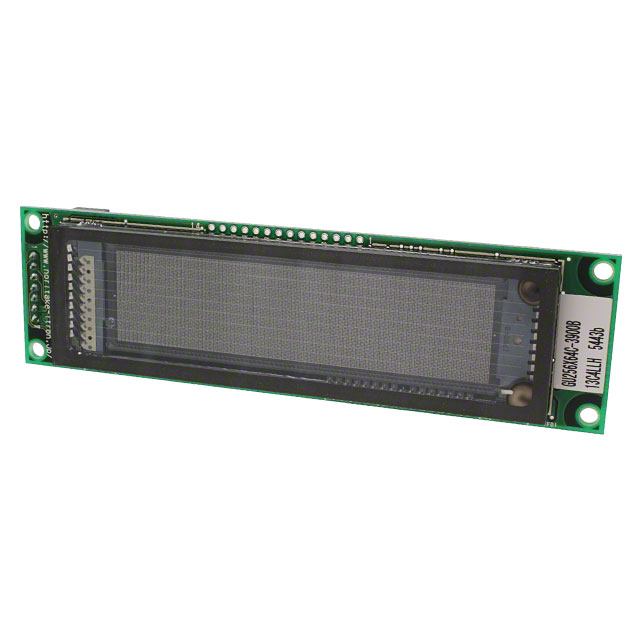

Noritake U.S.A., Inc. GU256X64C-3900B			20.68 mm	83.08 mm	Graphic	9 mm	133 mm	38 mm	5.25 V	4.75 V	-40 °C	85 °C	Parallel/Serial	64 dots	256 dots
