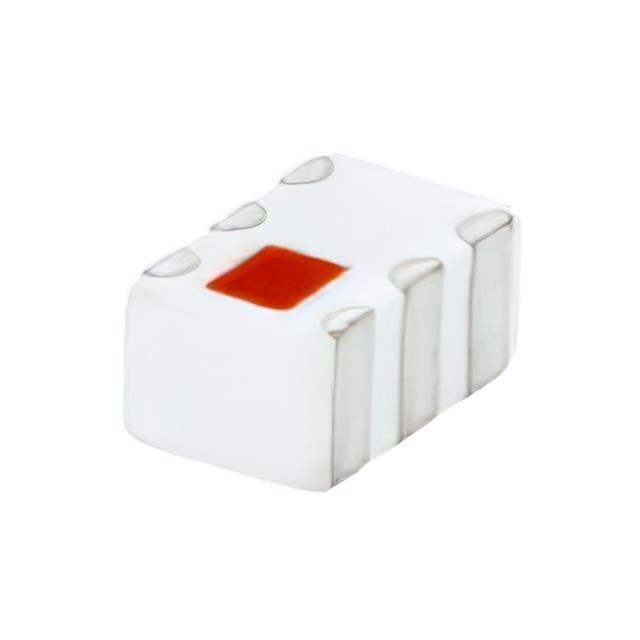

HFCG Series
Manufacturer: Mini-Circuits
Beta
⌘K
SIGNAL CONDITIONING LTCC SMT HIGH PASS FILTER, 2.7 - 14.5 GHZ
| Part | Mounting Type | Frequency | Filter Type | Height (Max) [z] | Height (Max) [z] | Bandwidth | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Package / Case | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | Surface Mount | 8.6 GHz | High Pass | 0.046 in | 1.18 mm | 11.8 GHz | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 6 PC Pad | 0805 (2012 Metric) | 1.5 dB |
 Mini-Circuits | Surface Mount | 3.27 GHz | High Pass | 0.046 in | 1.18 mm | 5.45 GHz | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 6 PC Pad | 0805 (2012 Metric) | 2.8 dB |
