5163/1C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

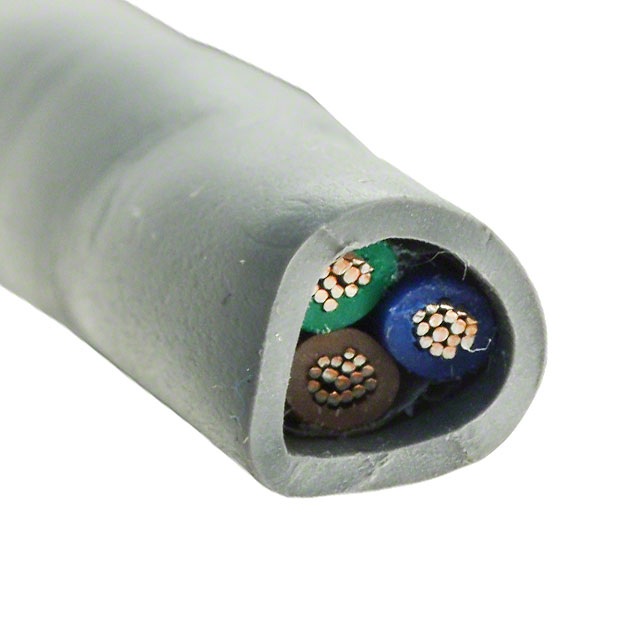

MULTI-CONDUCTOR CABLES 18 AWG 3 CONDUCTOR 300V SUPRASHIELD PVC PVC, 500 FT SPOOL - SLATE
| Part | Shield Coverage | Shield Material | Conductor Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Cable Type | Number of Conductors | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Shield Type | Jacket (Insulation) Material | Usage | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | ISO 10993 | Multi-Conductor | 3 | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 152.4 m | 500 ft | 6.76 mm | 0.266 in | Slate | Braid Foil | Poly-Vinyl Chloride (PVC) | Communication Control | 300 VDC | 0.813 mm | 0.032 in | 18 AWG | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | ISO 10993 | Multi-Conductor | 3 | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 6.76 mm | 0.266 in | Slate | Braid Foil | Poly-Vinyl Chloride (PVC) | Communication Control | 300 VDC | 0.813 mm | 0.032 in | 18 AWG | 100 ft | 30.5 m |
