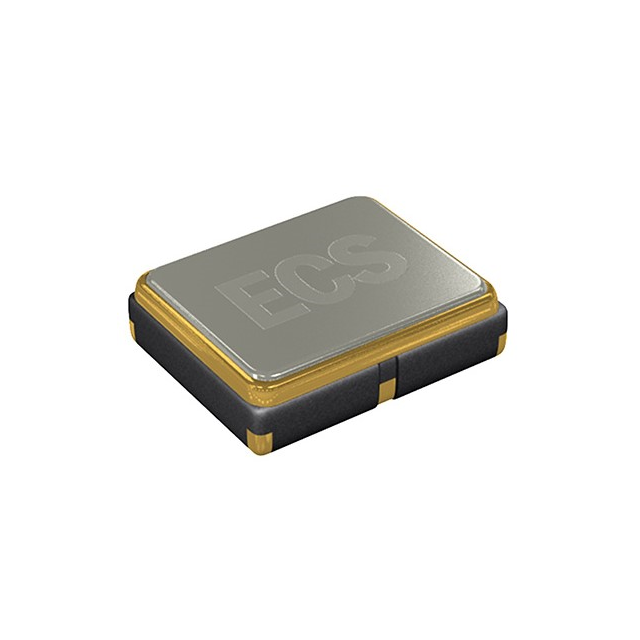

ECS-2520MVLC Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 25.000MHZ HCMOS SUPPLY VOLTAGE 1.6 - 3.6 +/-25 PPM -40 - +85C

Part	Type	Package / Case	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Base Resonator [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Frequency Stability	Frequency	Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Supply (Disable) (Max) [Max]
ECS Inc. ECS-2520MVLC-250-CN-TR	XO (Standard)	4-SMD No Lead	2.2 mA	85 °C	-40 C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	25 ppm	25 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm
ECS Inc. ECS-2520MVLC-080-CN-TR	XO (Standard)	4-SMD No Lead	1.8 mA	85 °C	-40 C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	25 ppm	8 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm
ECS Inc. ECS-2520MVLC-160-CM-TR	XO (Standard)	4-SMD No Lead	1.8 mA	70 °C	-20 ░C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	25 ppm	16 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm
ECS Inc. ECS-2520MVLC-245.7-BN-TR	XO (Standard)	4-SMD No Lead	2.2 mA	85 °C	-40 C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	50 ppm	24.576 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm	10 µA
ECS Inc. ECS-2520MVLC-240-CN-TR	XO (Standard)	4-SMD No Lead	2.2 mA	85 °C	-40 C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	25 ppm	24 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm
ECS Inc. ECS-2520MVLC-320-CN-TR	XO (Standard)	4-SMD No Lead	2.2 mA	85 °C	-40 C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	25 ppm	32 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm
ECS Inc. ECS-2520MVLC-300-BN-TR	XO (Standard)	4-SMD No Lead	2.2 mA	85 °C	-40 C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	50 ppm	30 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm	10 µA
ECS Inc. ECS-2520MVLC-010-CN-TR	XO (Standard)	4-SMD No Lead	1.8 mA	85 °C	-40 C	Enable/Disable	3.6 V	1.6 V	Surface Mount	Crystal	0.035 in	0.9 mm	2	2.5	4-SMD	25 ppm	1 MHz	CMOS	2.5 mm	0.079 in	0.098 in	2 mm
