103321 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Style	Contact Shape	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Type	Fastening Type	Contact Material	Shrouding	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination
TE Connectivity AMP Connectors 4-103321-0-18	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0	18	100 çin	2.54 çm	Header Breakaway	Solder
TE Connectivity AMP Connectors 4-103321-0-03	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0		100 çin	2.54 çm	Header Breakaway	Solder

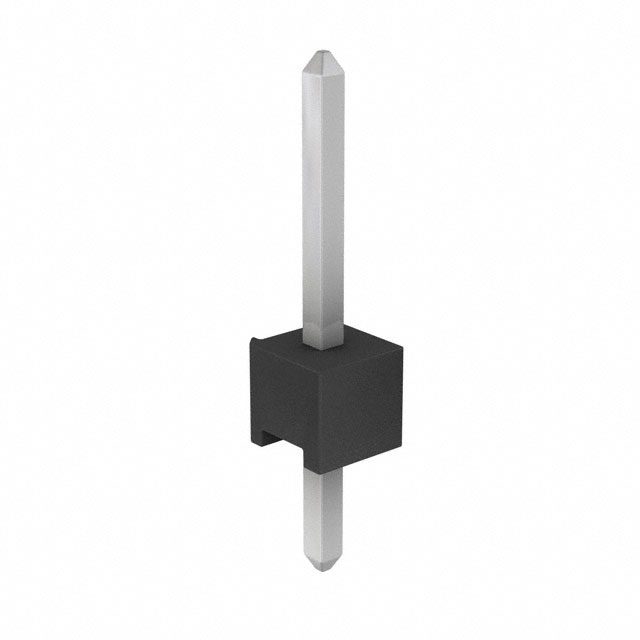

TE Connectivity AMP Connectors 4-103321-0-01	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic			Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0	1	100 çin	2.54 çm	Header Breakaway	Solder
TE Connectivity AMP Connectors 4-103321-0-17	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0		100 çin	2.54 çm	Header Breakaway	Solder

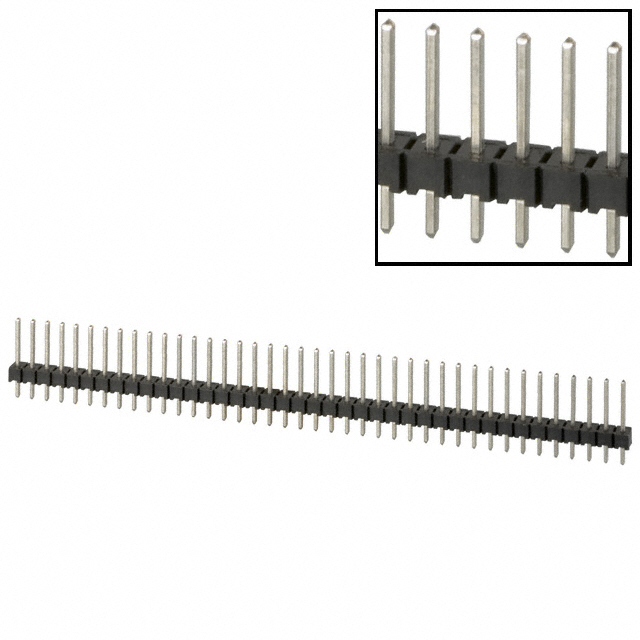

TE Connectivity AMP Connectors 4-103321-8	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin	105 ░C	-65 ░C	Black		All	UL94 V-0	40	100 çin	2.54 çm	Header Breakaway	Solder
TE Connectivity AMP Connectors 4-103321-0-26	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0	26	100 çin	2.54 çm	Header Breakaway	Solder
TE Connectivity AMP Connectors 4-103321-0-23	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0	23	100 çin	2.54 çm	Header Breakaway	Solder
TE Connectivity AMP Connectors 4-103321-0-07	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0	7	100 çin	2.54 çm	Header Breakaway	Solder
TE Connectivity AMP Connectors 4-103321-0-37	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0	37	100 çin	2.54 çm	Header Breakaway	Solder
TE Connectivity AMP Connectors 103321-9	2.54 µm	100 µin	0.09 in	2.29 mm	Board to Board Cable	Square	1	0.125 in	3.18 mm	Male Pin	Push-Pull	Copper Alloy	Unshrouded	Thermoplastic	0.1 "	2.54 mm	Through Hole	13.55 mm	0.533 in	3 A	8.08 mm	0.318 in	Tin-Lead	105 ░C	-65 ░C	Black	Tin-Lead	All	UL94 V-0	9	100 çin	2.54 çm	Header Breakaway	Solder
