M10 Series

Catalog

CONN RING D-SHAPE 10-12AWG #4

Part	Wire Gauge [Min]	Wire Gauge [Max]	Features	Termination	Mounting Type	Terminal Type	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Material	Contact Finish	Width - Outer Edges [x]	Number of Wire Entries
3M Electronic Specialty M10-4R/SK	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	D-Shaped	0.04 in	1.02 mm	7.11 mm	0.28 in	Non-Insulated	4 Stud	17.27 mm	0.68 "

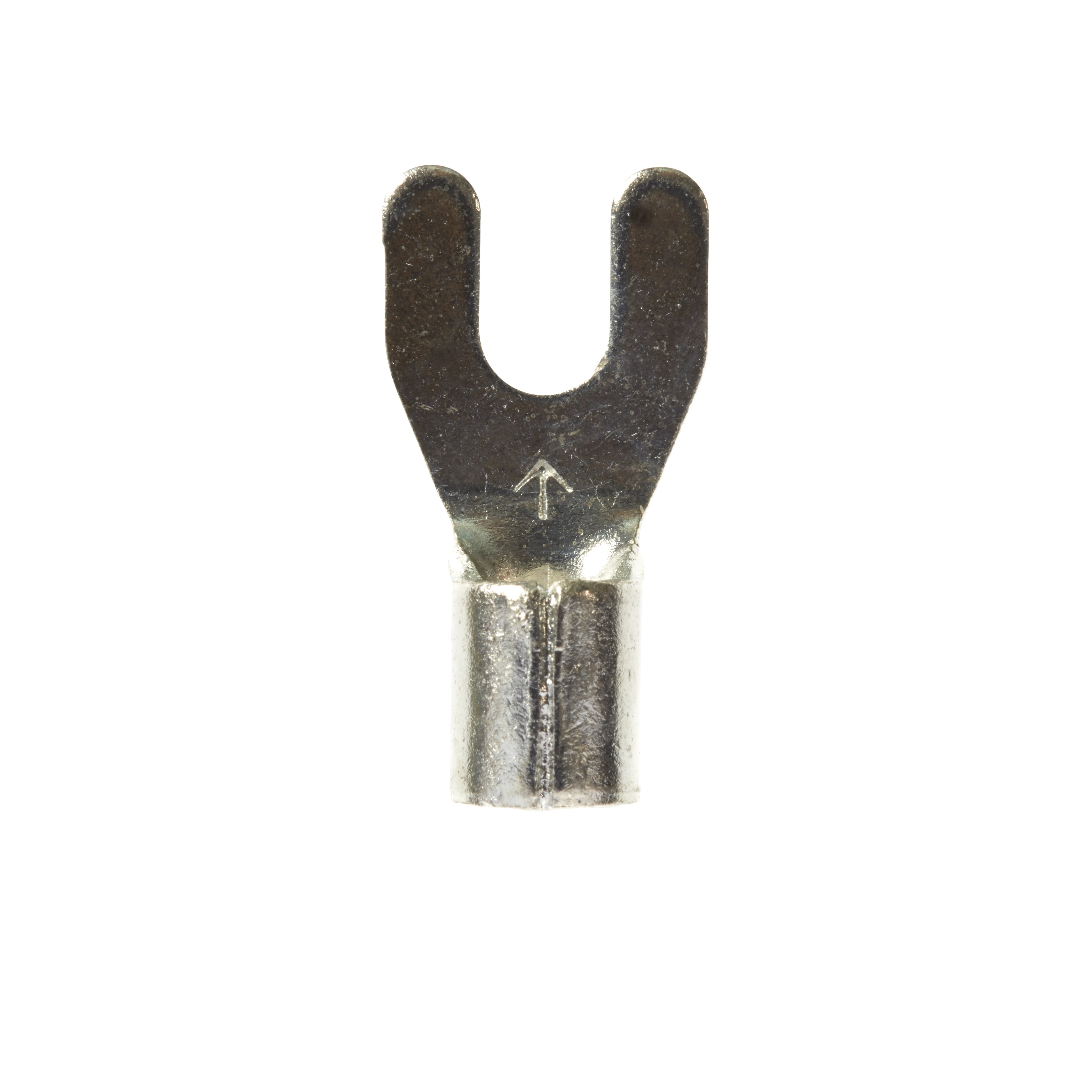

3M Electronic Specialty M10-6FX-BOTTLE	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Standard			9.65 mm		Non-Insulated	6 Stud	18.54 mm	0.73 in	0.25 in	6.35 mm	7.37 mm	0.29 in	Copper ETP	Tin	0.38 in

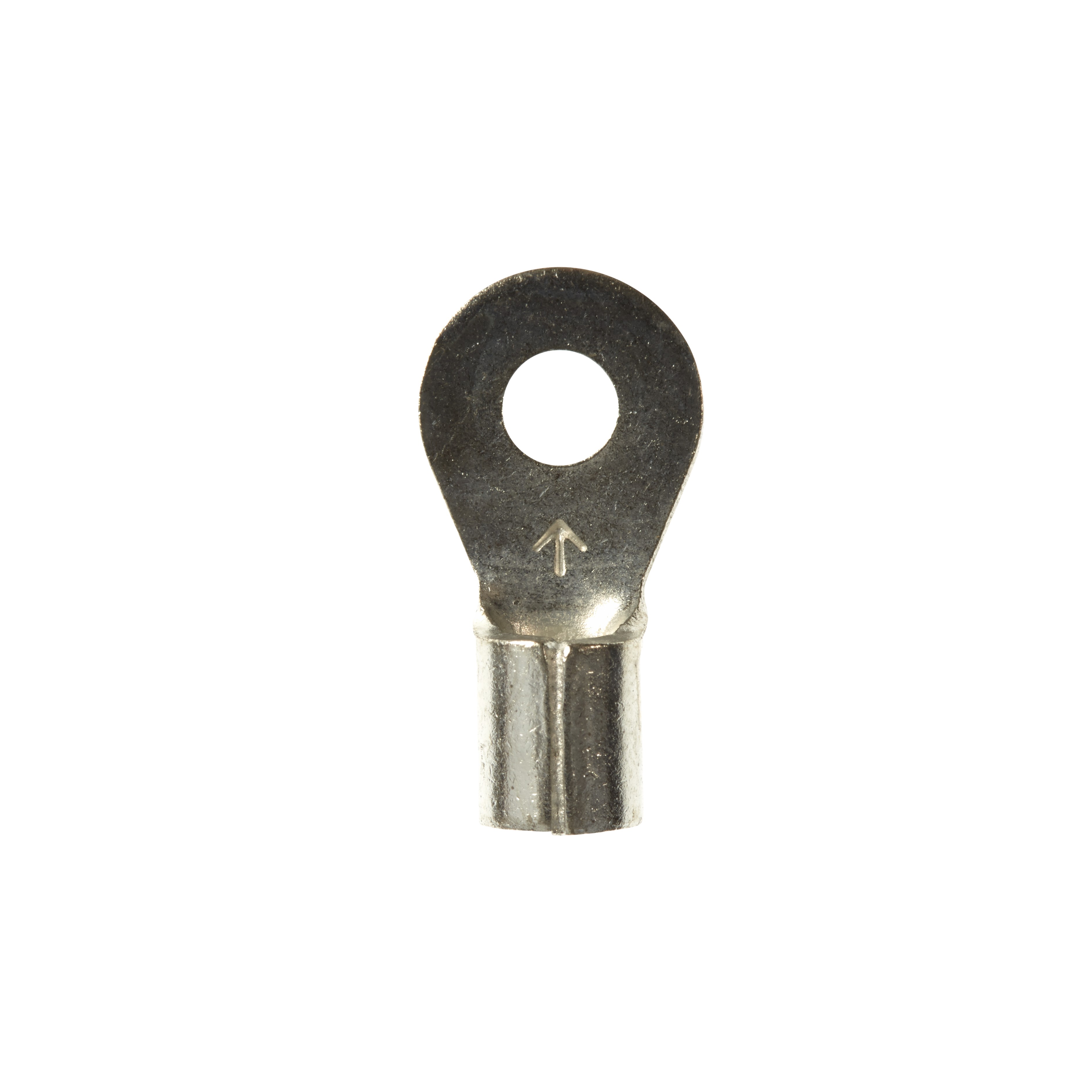

3M Electronic Specialty M10-6RX-BOTTLE	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	1.02 mm	9.65 mm		Non-Insulated	6 Stud	18.54 mm	0.73 in					Copper ETP	Tin	0.38 in

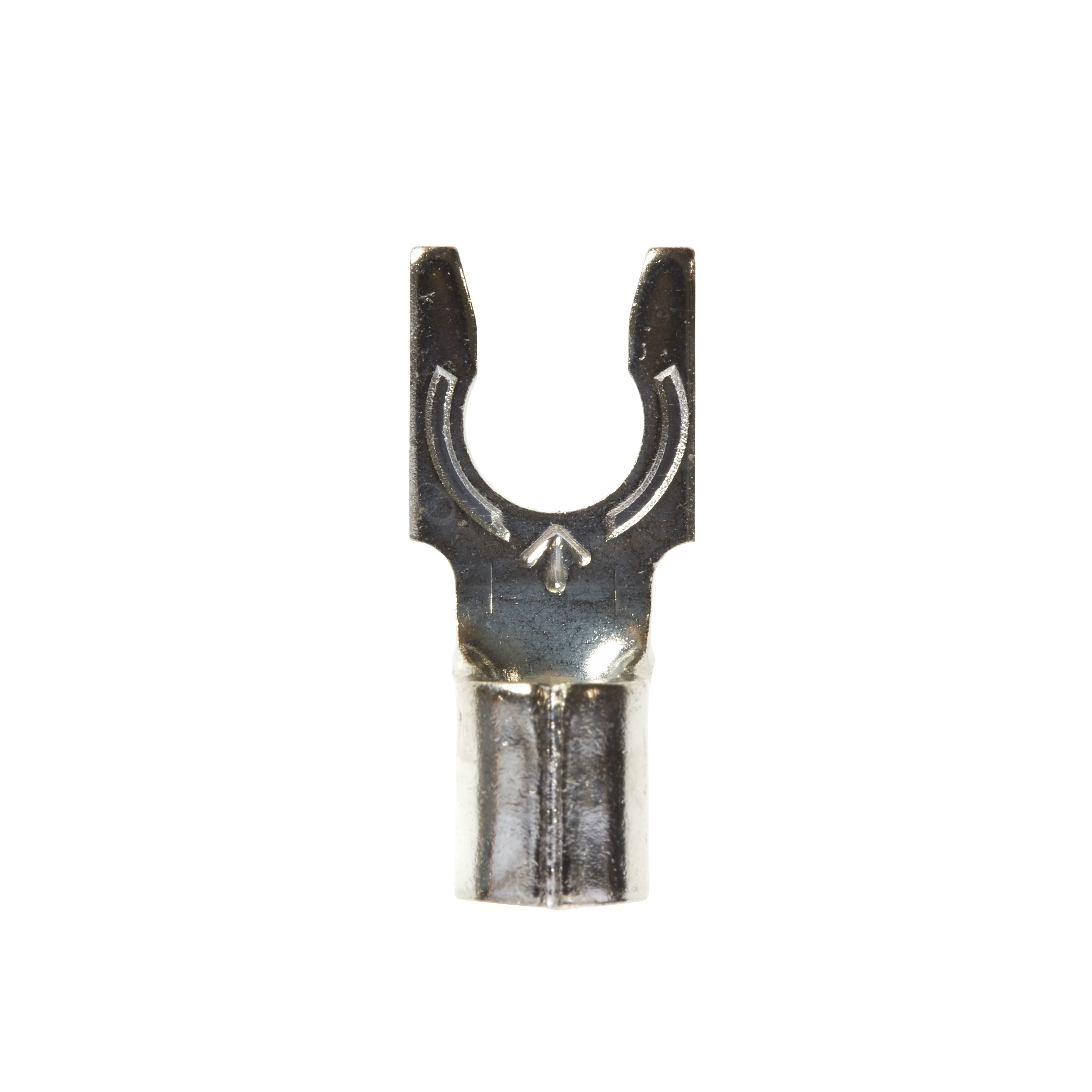

3M Electronic Specialty M10-10FLX-BOTTLE	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Snap Spring			8.13 mm		Non-Insulated	10 Stud	18.54 mm	0.73 in	0.25 in	6.35 mm	7.11 mm	0.28 in			0.32 in

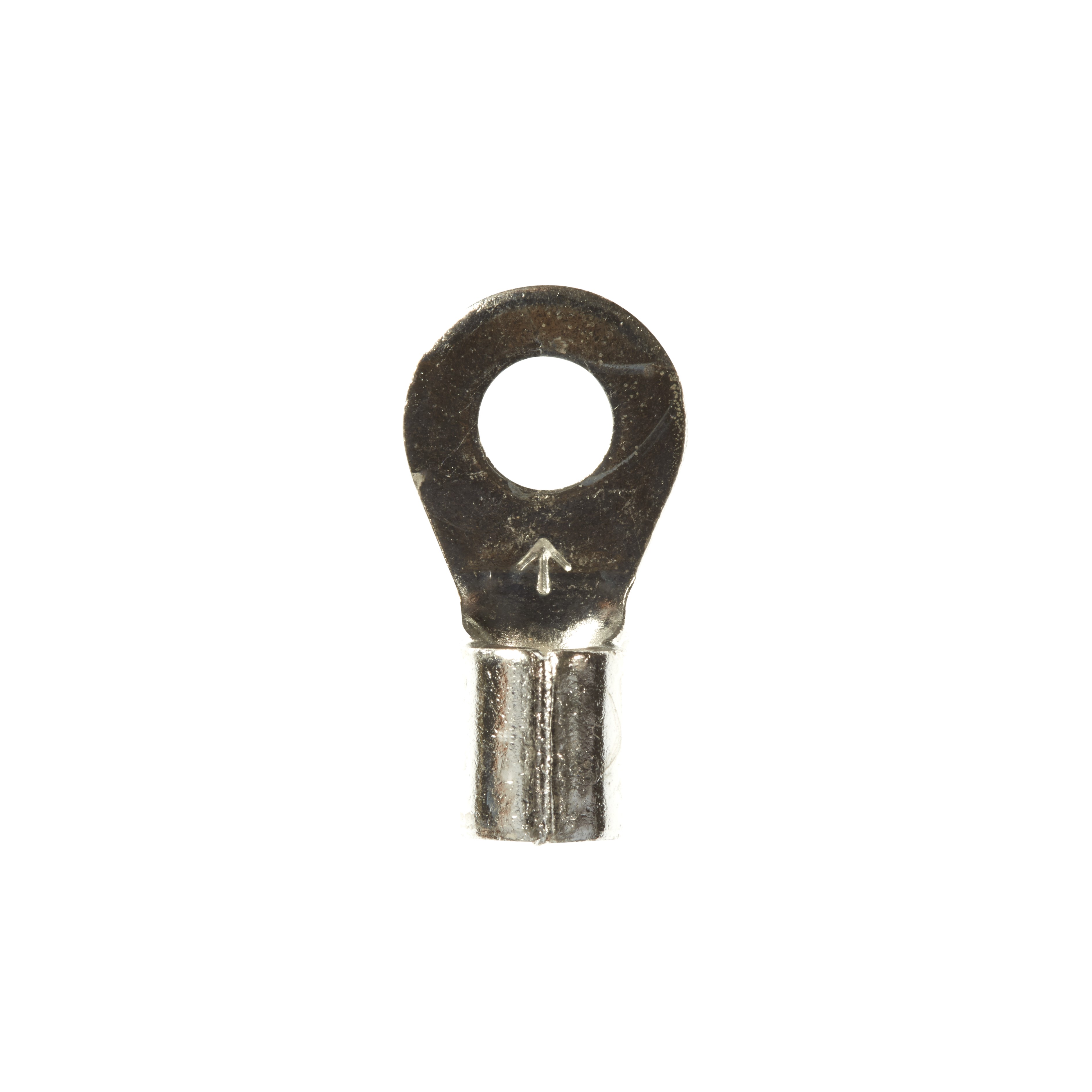

3M Electronic Specialty M10-8RK	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	1.02 mm	9.65 mm		Non-Insulated	8 Stud	18.54 mm	0.73 in							0.38 in
3M Electronic Specialty M10-6RK	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	1.02 mm	9.65 mm		Non-Insulated	6 Stud	18.54 mm	0.73 in							0.38 in
3M Electronic Specialty M10-10FX-BOTTLE	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Standard			9.65 mm		Non-Insulated	10 Stud	18.54 mm	0.73 in	0.25 in	6.35 mm	7.37 mm	0.29 in	Copper ETP	Tin	0.38 in

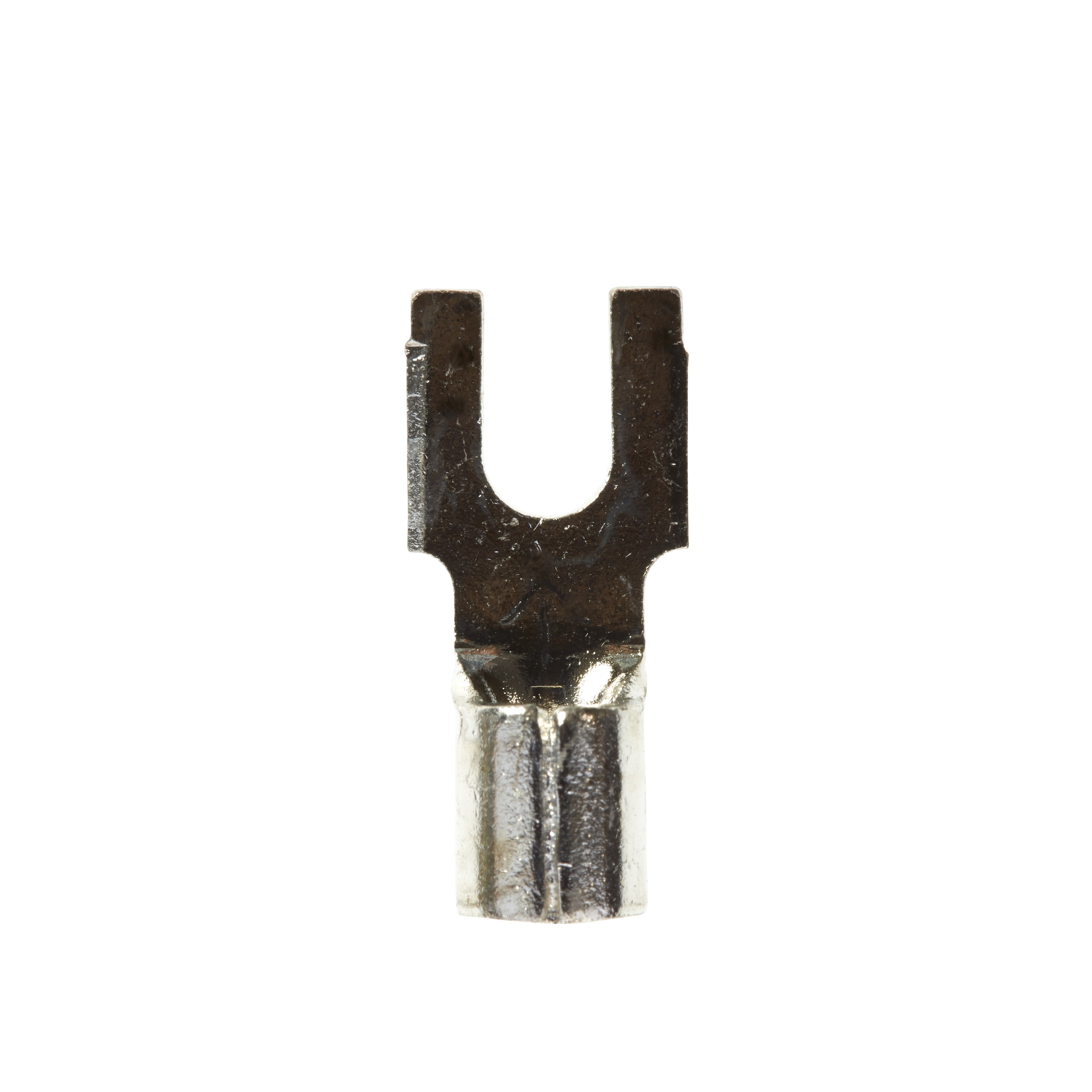

3M Electronic Specialty M10-6FBK	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Standard			8.13 mm		Non-Insulated	6 Stud	18.54 mm	0.73 in			7.37 mm	0.29 in	Copper ETP	Tin	0.32 in
3M Electronic Specialty M10BCX-BOTTLE	10 AWG	12 AWG		Crimp		Butt Splice Individual Openings Inline					Non-Insulated											2
3M Electronic Specialty M10-12RK	10 AWG	12 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	1.02 mm	19.05 mm		Non-Insulated	0.5 Stud	30.23 mm	1.19 in							0.75 in
