RPMB-2.0 Series

Non-Isolated DC/DC Converters 5.5-36Vi 5Vo 2A 1-9VTrim Reg

Manufacturer: Recom Power

Catalog

Non-Isolated DC/DC Converters 5.5-36Vi 5Vo 2A 1-9VTrim Reg

Catalog

Non-Isolated DC/DC Converters 5.5-36Vi 5Vo 2A 1-9VTrim Reg

Part	Control Features	Applications	Features	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Package / Case
Recom Power RPMB12-2.0-CT	Active Floating Enable	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	1	12.8 V	36 V	93 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	12 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module

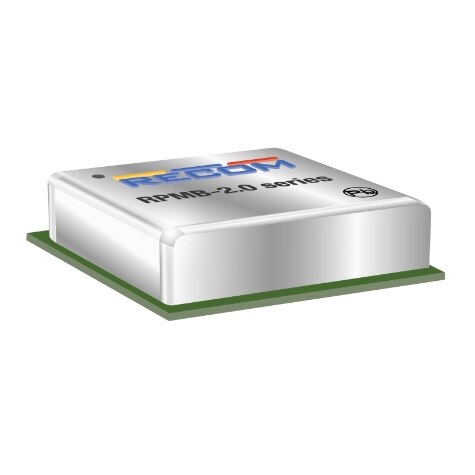

Recom Power RPMB3.3-2.0		ITE (Commercial)	Adjustable Output Remote Sense	1	4 V	36 V	84 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	3.3 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module
Recom Power RPMB3.3-2.0-CT	Active Floating Enable	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	1	4 V	36 V	84 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	3.3 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module
Recom Power RPMB5.0-2.0-CT	Active Floating Enable	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	1	5.5 V	36 V	88 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	5 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module
Recom Power RPMB12-2.0		ITE (Commercial)	Adjustable Output Remote Sense	1	12.8 V	36 V	93 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	12 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module
Recom Power RPMB5.0-2.0		ITE (Commercial)	Adjustable Output Remote Sense	1	5.5 V	36 V	88 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	5 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module
Recom Power RPMB15-2.0		ITE (Commercial)	Adjustable Output Remote Sense	1	16 V	36 V	94 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	15 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module

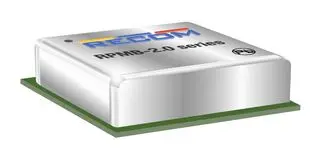

Recom Power RPMB15-2.0-CT	Active Floating Enable	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	1	16 V	36 V	94 %	Surface Mount	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	15 V	Non-Isolated PoL Module	-40 °C	100 °C	2 A	25-BLGA Module
