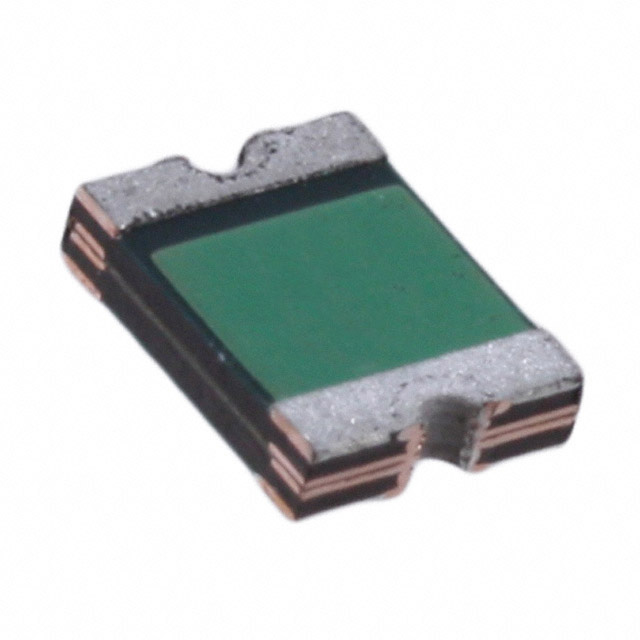

0ZCH Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
PTC RESET FUSE 8V 1.1A 1210
| Part | Approval Agency | Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Current - Max [Max] | Current - Hold (Ih) (Max) [Max] | Time to Trip | Current - Trip (It) | Resistance - Initial (Ri) (Min) [Min] | Resistance - Post Trip (R1) (Max) [Max] | Mounting Type | Voltage - Max [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | AEC-Q200 cURus TUV | Polymeric | 1 mm | 0.039 in | 100 A | 1.1 A | 0.3 s | 2.2 A | 60 mOhms | 210 mOhms | Surface Mount | 8 V | 0.127 in | 2.58 mm | 3.22 mm | 0.102 in | 85 °C | -40 C | 1210 (3225 Metric) Concave |
