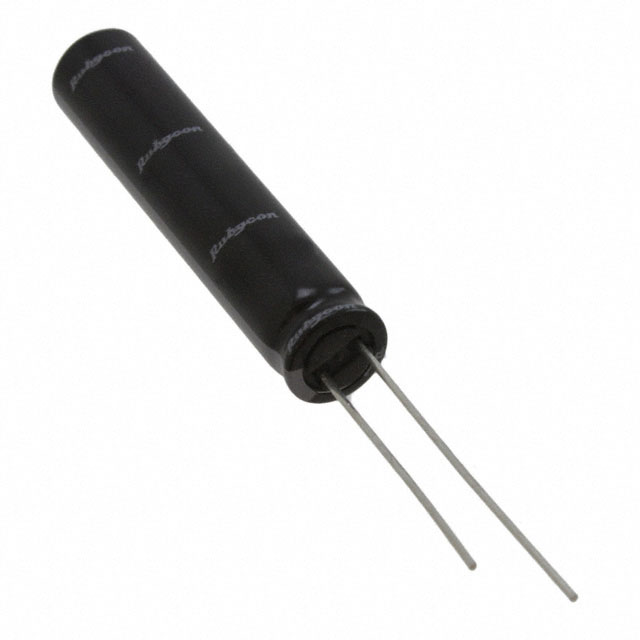

TXW Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW ESR ELECTROLYTIC CAPACITORS

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Voltage - Rated	Applications	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Rubycon 250TXW68MEFR8X50	Through Hole	2.067 in	52.5 mm	590 mA	250 V	General Purpose	826 mA	-40 C	105 ░C	Can Radial	20 %	0.138 in	3.5 mm	12000 Hrs	68 µF	0.315 in	8 mm	Polar
Rubycon 450TXW150MEFR18X45	Through Hole			120 Hz 950 mA	450 V	General Purpose	1.42 A	-40 C	105 ░C	Can Radial	20 %	0.295 in	7.5 mm	12000 Hrs	150 µF	0.709 in	18 mm	Polar	47.5 mm	1.87 in
Rubycon 250TXW39MEFR8X30	Through Hole	1.28 in	32.5 mm	370 mA	250 V	General Purpose	518 mA	-40 C	105 ░C	Can Radial	20 %	0.138 in	3.5 mm	12000 Hrs	39 µF	0.315 in	8 mm	Polar
Rubycon 80TXW220MEFC8X50	Through Hole	2.047 in	52 mm	1.205 A	80 V	General Purpose	2.41 A	-40 C	105 ░C	Can Radial	20 %	0.138 in	3.5 mm	10000 Hrs	220 µF	0.315 in	8 mm	Polar
Rubycon 50TXW180MEFC6.3X40	Through Hole			710 mA	50 VDC	General Purpose	1.42 A	-40 C	105 ░C	Can Radial	20 %	0.098 in	2.5 mm	7000 Hrs	180 µF	0.248 "	6.3 mm	Polar	42 mm	1.654 in
Rubycon 400TXW12MEFR8X25	Through Hole			170 mA	400 V	General Purpose	255 mA	-40 C	105 ░C	Can Radial	20 %	0.138 in	3.5 mm	12000 Hrs	12 µF	0.315 in	8 mm	Polar	27.5 mm	1.083 in
Rubycon 200TXW220MEFR16X30	Through Hole	1.28 in	32.5 mm	1.01 A	200 VDC	General Purpose	1.41 A	-40 C	105 ░C	Can Radial	20 %	0.295 in	7.5 mm	12000 Hrs	220 µF	0.63 in	16 mm	Polar
Rubycon 100TXW100MEFC8X30	Through Hole			785 mA	100 V	General Purpose	1.57 A	-40 C	105 ░C	Can Radial	20 %	0.138 in	3.5 mm	10000 Hrs	100 µF	0.315 in	8 mm	Polar	32 mm	1.26 in
Rubycon 80TXW47MEFC6.3X25	Through Hole	1.063 in	27 mm	455 mA	80 V	General Purpose	910 mA	-40 C	105 ░C	Can Radial	20 %	0.098 in	2.5 mm	7000 Hrs	47 µF	0.248 "	6.3 mm	Polar
Rubycon 400TXW180MEFR18X45	Through Hole			1.04 A	400 V	General Purpose	1.56 A	-40 C	105 ░C	Can Radial	20 %	0.295 in	7.5 mm	12000 Hrs	180 µF	0.709 in	18 mm	Polar	47.5 mm	1.87 in
