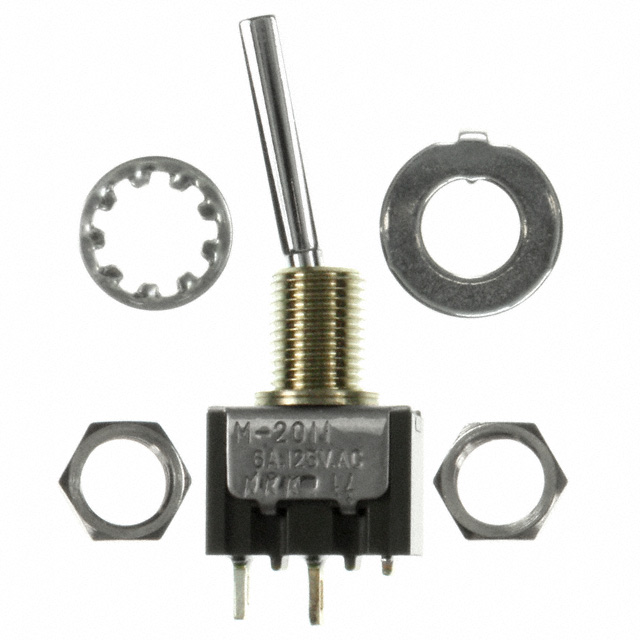

M2011E3 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPST 6A 125V
| Part | Actuator Material | Electrical Life | Panel Cutout Dimensions [diameter] | Circuit | Bushing Thread | Actuator Type | Termination Style | Illumination | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Length [x] | Features | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | 6.5 mm | SPST | 1/4-40 | Flatted | Solder Lug | Non-Illuminated | 125 V | 30 V | On-Off | 11.4 mm | Epoxy Sealed Terminals | 4 A 6 A | Panel Mount | 85 °C | -30 ░C |
