PRQ3W Series

Manufacturer: CUI Inc.

Catalog

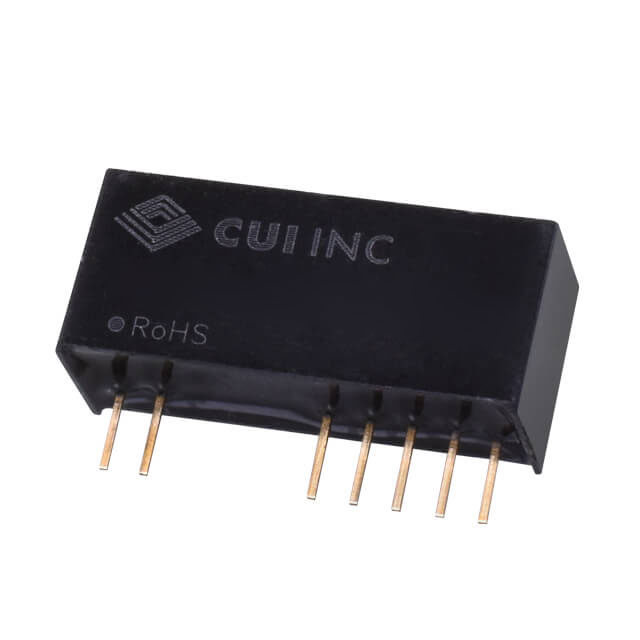

DC DC CONVERTER 5V 5V 3W

Part	Voltage - Output 2	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output 1	Voltage - Input (Min) [Min]	Mounting Type	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Efficiency	Package / Case	Current - Output (Max)
CUI Inc. PRQ3W-Q48-D55-S	5 V	75 V	CE	9.5 mm	0.37 in	1.08 in	0.47 "	27.4 mm	12 mm	2	0.3 A	3 W	5 V	18 V	Through Hole	Isolated Module	ITE (Commercial)	-40 °C	85 °C	3000 V	78 %	10-SIP Module 7 Leads
CUI Inc. PRQ3W-Q48-D524-S	24 V	75 V	CE	9.5 mm	0.37 in	1.08 in	0.47 "	27.4 mm	12 mm	2		3 W	5 V	18 V	Through Hole	Isolated Module	ITE (Commercial)	-40 °C	85 °C	3000 V	78 %	10-SIP Module 7 Leads	63 mA 300 mA
