PDSE1 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 1W

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Efficiency	Voltage - Output 1	Package / Case	Type	Mounting Type	Applications	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2

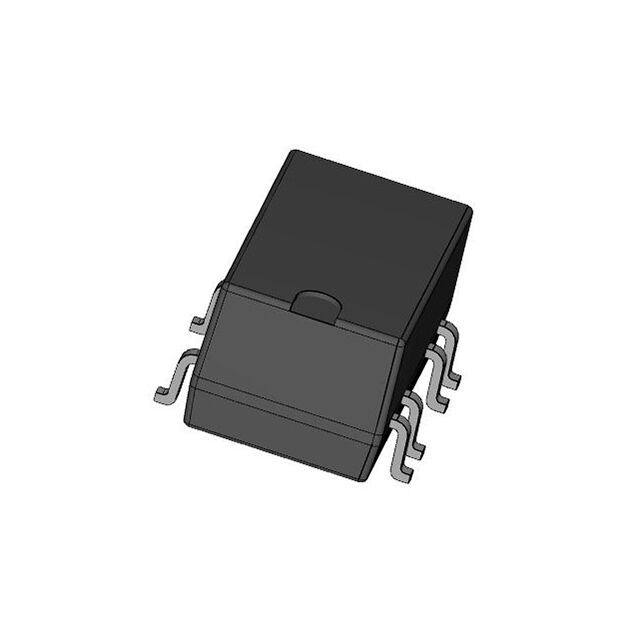

CUI Inc. PDSE1-S5-S12-S	CB Scheme EN IEC UL	105 C	-40 °C	55024 55032 Class A 62368-1	10.2 mm	6 mm	0.24 "	0.46 in	11.6 mm	0.4 "	1	83 %	12 V	4-SIP Module	Isolated Module	Through Hole	ITE (Commercial)	84 mA	SCP	4.5 V	5.5 V	3000 V

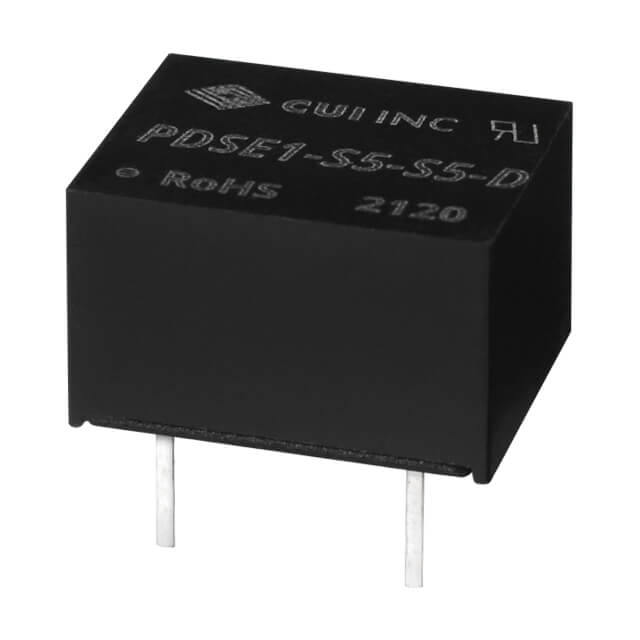

CUI Inc. PDSE1-S5-S15-D	CB Scheme EN IEC UL	105 C	-40 °C	55024 55032 Class A 62368-1							1	83 %	15 V	8-DIP Module 4 Leads	Isolated Module	Through Hole	ITE (Commercial)	67 mA		4.5 V	5.5 V	3000 V

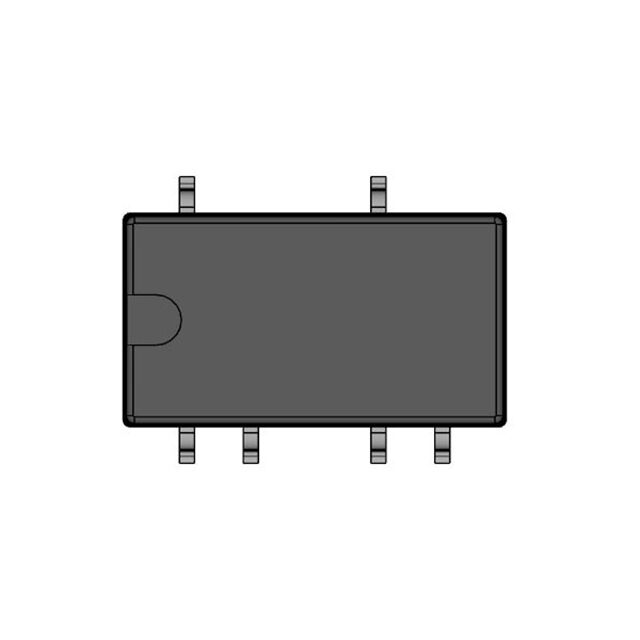

CUI Inc. PDSE1-S5-D5-M-TR	CB Scheme EN IEC UL	105 C	-40 °C	55024 55032 Class A 62368-1	7.3 mm	8.5 mm	0.33 "	0.6 "	15.2 mm	0.29 in	2		5 V	10-SMD Module 6 Leads	Isolated Module	Surface Mount	ITE (Commercial)		SCP	4.5 V	5.5 V	1.5 kV	100 mA	100 mA	-5 V
CUI Inc. PDSE1-S5-S3-D	CB Scheme EN IEC UL	105 C	-40 °C	55024 55032 Class A 62368-1							1	74 %	3.3 V	8-DIP Module 4 Leads	Isolated Module	Through Hole	ITE (Commercial)	303 mA		4.5 V	5.5 V	3000 V
CUI Inc. PDSE1-S5-S5-S	CB Scheme EN IEC UL	105 C	-40 °C	55024 55032 Class A 62368-1	10.2 mm	6 mm	0.24 "	0.46 in	11.6 mm	0.4 "	1		5 V	4-SIP Module	Isolated Module	Through Hole	ITE (Commercial)	200 mA	SCP	4.5 V	5.5 V	3000 V

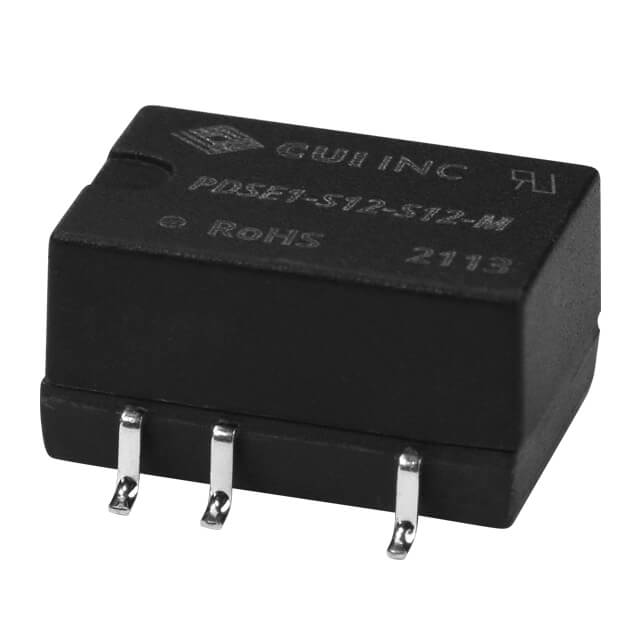

CUI Inc. PDSE1-S5-S9-M	CB Scheme EN IEC	105 C	-40 °C	55024 55032 Class A 62368-1	7.3 mm	8.5 mm	0.33 "	0.52 in	13.2 mm	0.29 in	1	83 %	9 V	8-SMD Module 5 Leads	Isolated Module	Surface Mount	ITE (Commercial)	111 mA	SCP	4.5 V	5.5 V	1.5 kV
CUI Inc. PDSE1-S5-D9-M-TR	CB Scheme EN IEC UL	105 C	-40 °C	55024 55032 Class A 62368-1	7.3 mm	8.5 mm	0.33 "	0.6 "	15.2 mm	0.29 in	2	83 %	9 V	10-SMD Module 6 Leads	Isolated Module	Surface Mount	ITE (Commercial)	56 mA	SCP	4.5 V	5.5 V	1.5 kV			-9 V
CUI Inc. PDSE1-S5-S24-M	CB Scheme EN IEC	105 C	-40 °C	55024 55032 Class A 62368-1	7.3 mm	8.5 mm	0.33 "	0.52 in	13.2 mm	0.29 in	1	85 %	24 V	8-SMD Module 5 Leads	Isolated Module	Surface Mount	ITE (Commercial)	42 mA	SCP	4.5 V	5.5 V	1.5 kV
CUI Inc. PDSE1-S5-S15-M-TR	CB Scheme EN IEC	105 C	-40 °C	55024 55032 Class A 62368-1	7.3 mm	8.5 mm	0.33 "	0.52 in	13.2 mm	0.29 in	1	83 %	15 V	8-SMD Module 5 Leads	Isolated Module	Surface Mount	ITE (Commercial)	67 mA	SCP	4.5 V	5.5 V	1.5 kV
CUI Inc. PDSE1-S5-D5-M	CB Scheme EN IEC UL	105 C	-40 °C	55024 55032 Class A 62368-1	7.3 mm	8.5 mm	0.33 "	0.6 "	15.2 mm	0.29 in	2		5 V	10-SMD Module 6 Leads	Isolated Module	Surface Mount	ITE (Commercial)		SCP	4.5 V	5.5 V	1.5 kV	100 mA	100 mA	-5 V
