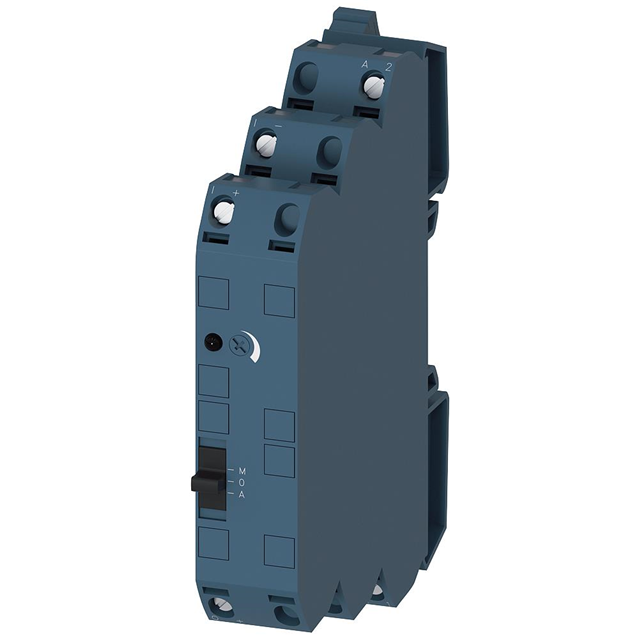

3RS7025 Series
Manufacturer: Siemens
Beta
⌘K
SWTCHBL MULTI-RANGE CNVRTR, 24VA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Input Range (Additional) | Input Range (Additional) | Input Range (Current, Voltage) [custom] | Input Range (Current, Voltage) [custom] | Mounting Type | Voltage - Supply | Isolation | Output Range [Max] | Output Range [Min] | Input Type | Type | Termination Style | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | -25 °C | 60 °C | Current Voltage | 100 Ohm | 330k | 0 V 10 V | 0 mA 20 mA | DIN Rail | 24 VAC | 50 V | 10 VDC 20 mA | 0 mA 0 VDC | Current Resistance Voltage | Isolation Amplifier | Screw Terminal | ||
 Siemens | -25 °C | 60 °C | Current Voltage | 100 Ohm | 330k | 0 V 10 V | 0 mA 20 mA | DIN Rail | 24 VAC | 50 V | 10 VDC 20 mA | 0 mA 0 VDC | Current Resistance Voltage | Signal Conditioner | Spring Terminal | ||
Siemens | -25 °C | 60 °C | Current Voltage | 100 Ohm | 330k | 0 V 10 V | 0 mA 20 mA | DIN Rail | 300 V | 10 VDC 20 mA | 0 mA 0 VDC | Current Resistance Voltage | Signal Conditioner | Screw Terminal | 24 VAC | 240 VAC | |
Siemens | -25 °C | 60 °C | Current Voltage | 100 Ohm | 330k | 0 V 10 V | 0 mA 20 mA | DIN Rail | 300 V | 10 VDC 20 mA | 0 mA 0 VDC | Current Resistance Voltage | Isolation Amplifier | Spring Terminal | 24 VAC | 240 VAC |
