PHA227M Series

Manufacturer: KEMET

Catalog

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, AXIAL LEADED, 0.006 OHM

Part	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Ratings	ESR (Equivalent Series Resistance)	Tolerance	Lifetime @ Temp.	Applications	Mounting Type	Features	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Voltage - Rated	Size / Dimension [z]	Size / Dimension [z]

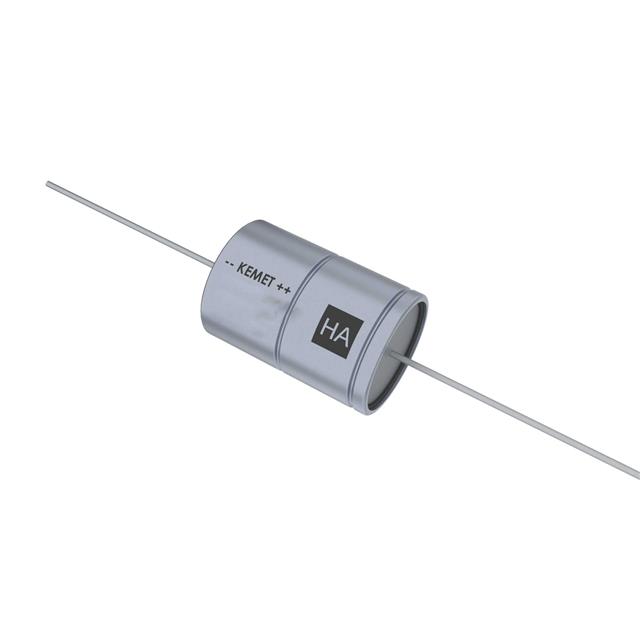

KEMET PHA227MKP3780ME4	16.2 mm	1.366 in	34.7 mm	0.638 in	AEC-Q200	145 mOhm	20 %	8000 Hrs	Automotive	Through Hole	High Vibration	34.9 A	6.98 A	Axial Can	Hybrid	125 °C	-40 C	780 µF	63 V
KEMET PHA227MLL3800ME4	18.2 mm	1.051 in	26.7 mm	0.717 "	AEC-Q200	147 mOhm	20 %	8000 Hrs	Automotive	Through Hole	High Vibration	35.3 A	7.06 A	Axial Can	Hybrid	125 °C	-40 C	800 µF	63 V
KEMET PHA227MLP4110ME4	18.2 mm	1.366 in	34.7 mm	0.717 "	AEC-Q200	100 mOhms	20 %	8000 Hrs	Automotive	Through Hole	High Vibration	36.5 A	7.3 A	Axial Can	Hybrid	125 °C	-40 C	1100 µF	63 V
KEMET PHA227MKL3540ME4	16.2 mm			0.638 in	AEC-Q200	150 mOhms	20 %	8000 Hrs	Automotive	Through Hole	High Vibration	33.7 A	6.74 A	Axial Can	Hybrid	125 °C	-40 C	540 µF	63 V	26.7 mm	1.051 "
