320.01 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACT SPST-NO 0.025A 50V
| Part | Mechanical Life | Actuator Material | Switch Travel | Actuator Orientation | Contact Rating @ Voltage | Mounting Type | Switch Function | Features | Actuator Height off PCB, Vertical [z] | Actuator Type | Operating Force | Circuit | Outline [x] | Outline [y] | Termination Style | Illumination | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

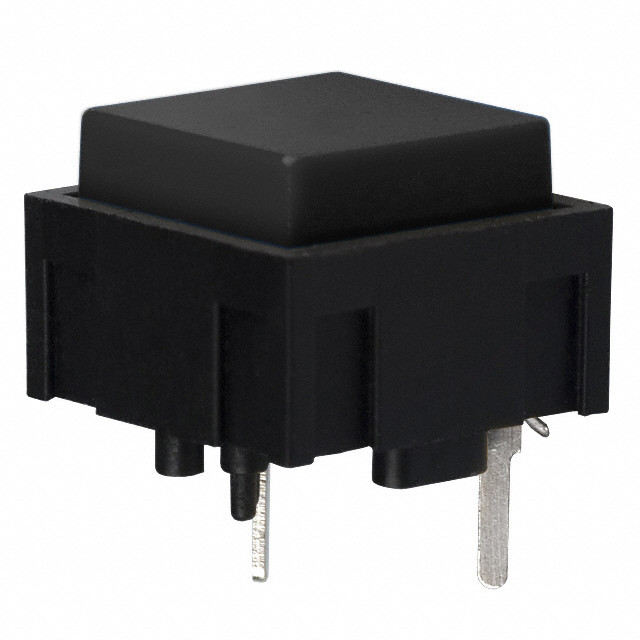

 E-Switch | 1000000 Cycles | Polycarbonate (PC) | 0.6 mm | Top Actuated | 0.025 A | Through Hole | Off-Mom | Black Cap | 10 mm | Square Button | 135 gf | SPST-NO | 12.4 mm | 12.4 mm | PC Pin | Non-Illuminated | -20 ░C | 70 °C |
 E-Switch | 1000000 Cycles | Polycarbonate (PC) | 0.6 mm | Top Actuated | 0.025 A | Through Hole | Off-Mom | Orange Cap | 10 mm | Square Button | 135 gf | SPST-NO | 12.4 mm | 12.4 mm | PC Pin | Non-Illuminated | -20 ░C | 70 °C |
E-Switch | 1000000 Cycles | Polycarbonate (PC) | 0.6 mm | Top Actuated | 0.025 A | Through Hole | Off-Mom | Tactile Feedback | 10 mm | Square Button | 135 gf | SPST-NO | 12.4 mm | 12.4 mm | PC Pin | Non-Illuminated | -20 ░C | 70 °C |
