CP-4.5 Receptacle Housing, 4.50mm Pitch, Dual Row, Polarized, Positive Lock, 2 Circuits, Yellow, Glow-Wire Capable
CP-4.5 Receptacle Housing, 4.50mm Pitch, Dual Row, Polarized, Positive Lock, 2 Circuits, Yellow, Glow-Wire Capable
CP-4.5 Receptacle Housing, 4.50mm Pitch, Dual Row, Polarized, Positive Lock, 2 Circuits, Yellow, Glow-Wire Capable
| Part | Mounting Type | Pitch [x] | Pitch [x] | Note | Connector Type | Number of Positions | Color | Number of Rows | Contact Termination | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Type | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

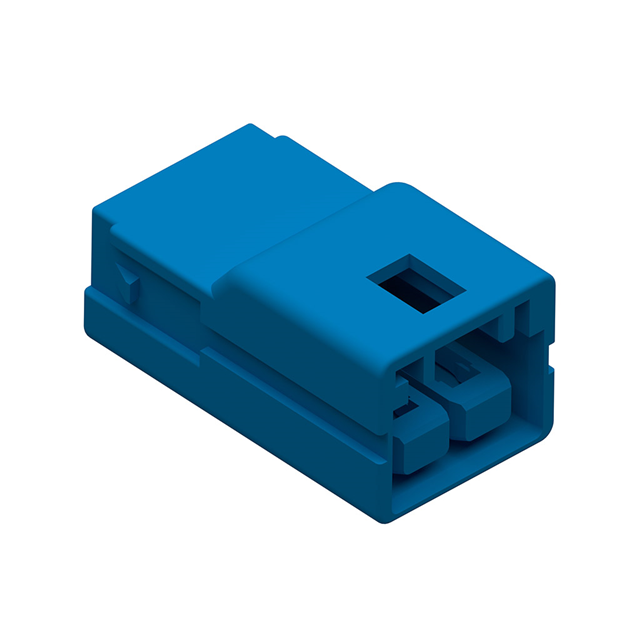

 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 2 | Blue | 1 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | ||

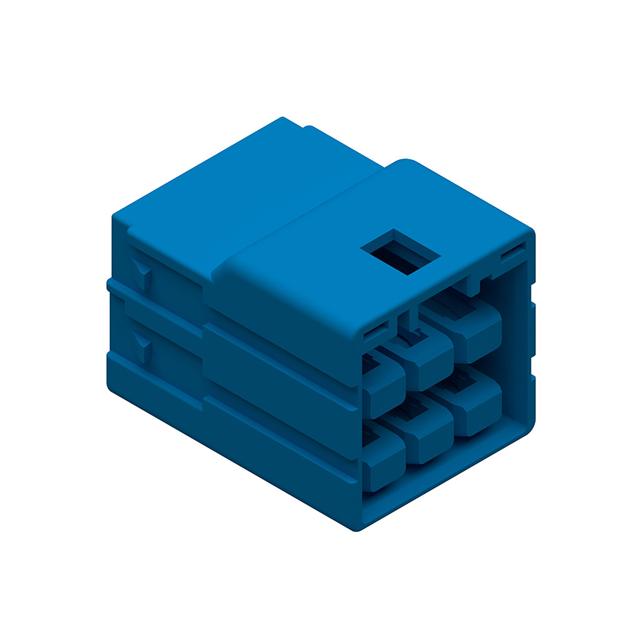

 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 6 | Blue | 2 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | 0.232 in | 5.9 mm |
 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 4 | Black | 2 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | 0.232 in | 5.9 mm |
 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 2 | 1 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | |||
 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 6 | Natural | 2 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | 0.232 in | 5.9 mm |

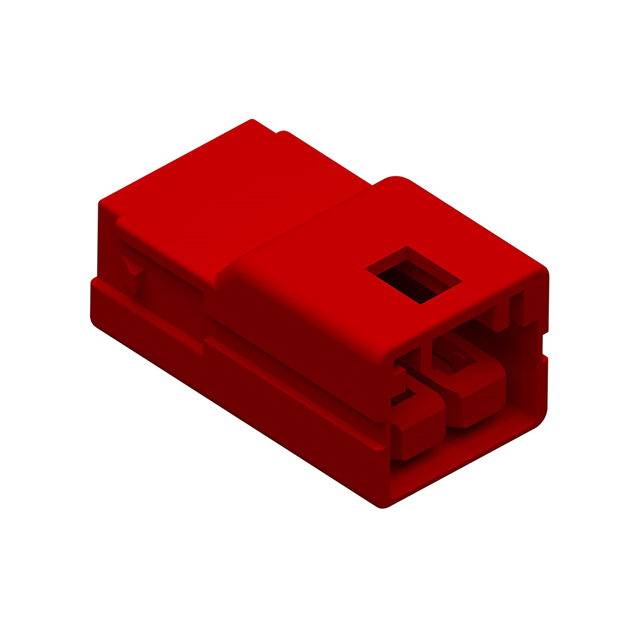

 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 2 | Red | 1 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | ||
Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 4 | Blue | 2 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | 0.232 in | 5.9 mm |
 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 2 | Black | 1 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | ||
 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 2 | Yellow | 1 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | ||

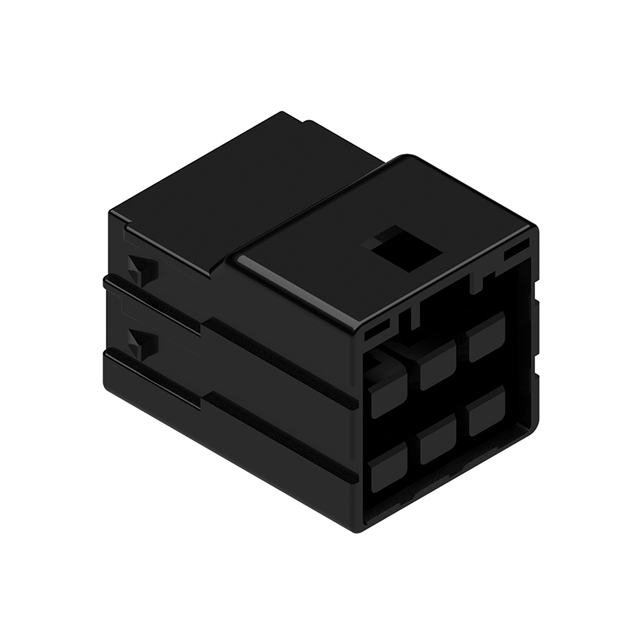

 Molex | Free Hanging (In-Line) | 0.177 in | 4.5 mm | Contacts Not Included | Receptacle | 6 | Black | 2 | Crimp | Polyamide (PA66) Nylon 6/6 | -40 °C | 105 ░C | Latch Holder | Female Socket | 0.232 in | 5.9 mm |
