792 Series

Catalog

SPD 4.2VAC/6VDC MCOV 1 POLE

Part	Number of Poles	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Continuous Operating (Max) (MCOV) [Max]	Current - Discharge (Nom) (8/20µS)	Current - Discharge (Max) (8/20µS) [Max]	Voltage - Protection Level (VP) (2416)	Form	Mounting Type	Voltage - Continuous Operating (Max) (MCOV)
WAGO Corporation 792-805	1	EAC	80 °C	-40 C	4.2 VAC 6 VDC	5 kA	10 kA	27 V	Module Only	DIN Rail
WAGO Corporation 792-803	1	ATEX	80 °C	-40 C	23 VAC 33 VDC	5 kA	10 kA	50 V	Module Only	DIN Rail
WAGO Corporation 792-801	1	EAC	80 °C	-40 C	23 VAC 33 VDC	5 kA	10 kA	50 V	Module Only	DIN Rail

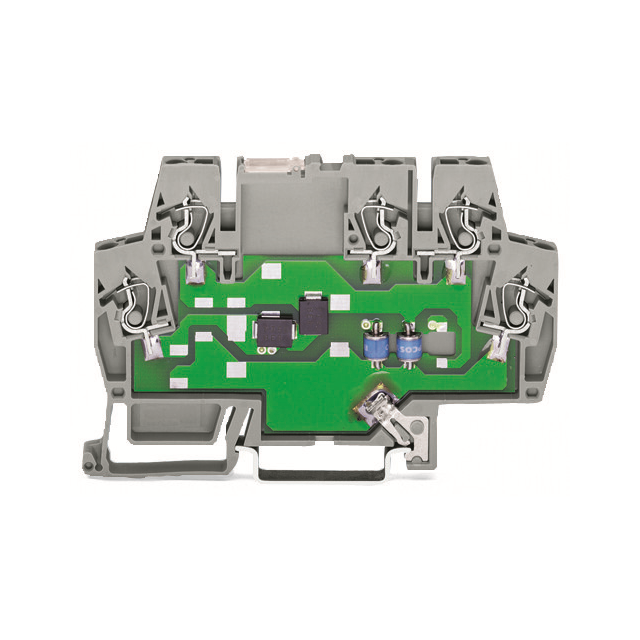

WAGO Corporation 792-802	1	EAC	80 °C	-40 C	23 VAC 33 VDC	300 A	5 kA	50 V	Module Only	DIN Rail

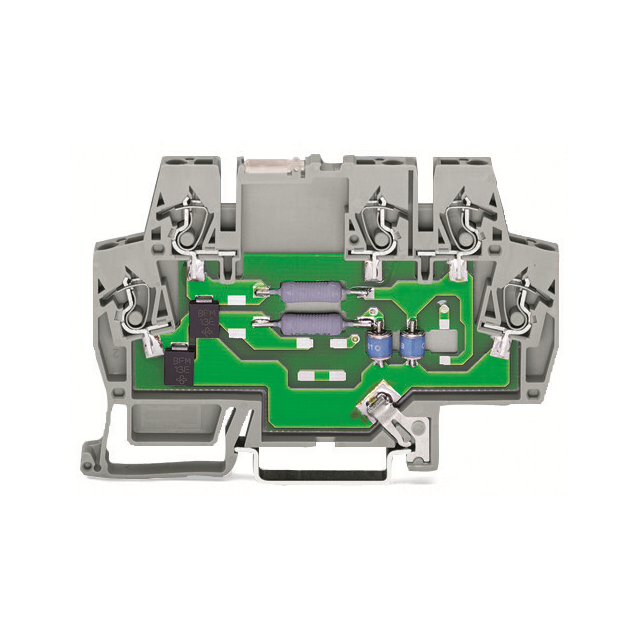

WAGO Corporation 792-800	1	EAC	80 °C	-40 C	23 VAC 33 VDC	5 kA	10 kA	110 V	Module Only	DIN Rail

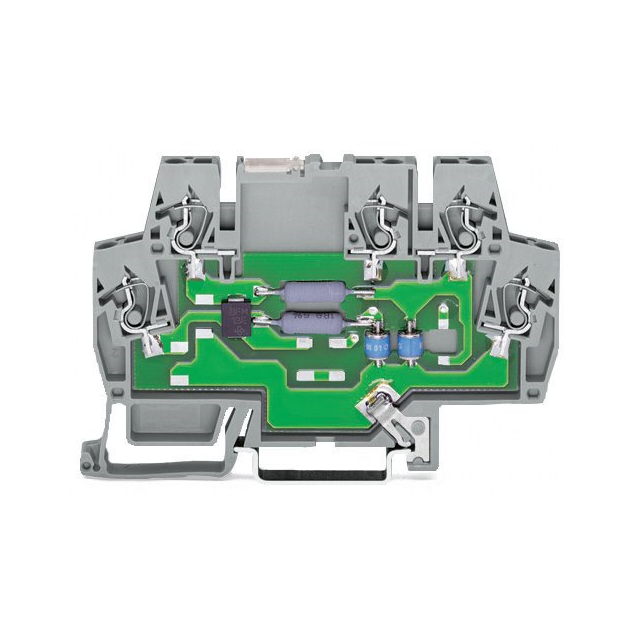

WAGO Corporation 792-804	1	EAC	80 °C	-40 C		5 kA	10 kA	100 V	Module Only	DIN Rail	38.5 VAC 55 VDC
