PRPC010 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Connector Type	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Termination	Material Flammability Rating	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish Thickness - Mating	Style	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PRPC010SAAN-RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.23 in	5.84 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm	1	10	0.448 in	11.39 mm	3.05 mm	0.12 in	Through Hole	Flash	Board to Board Cable

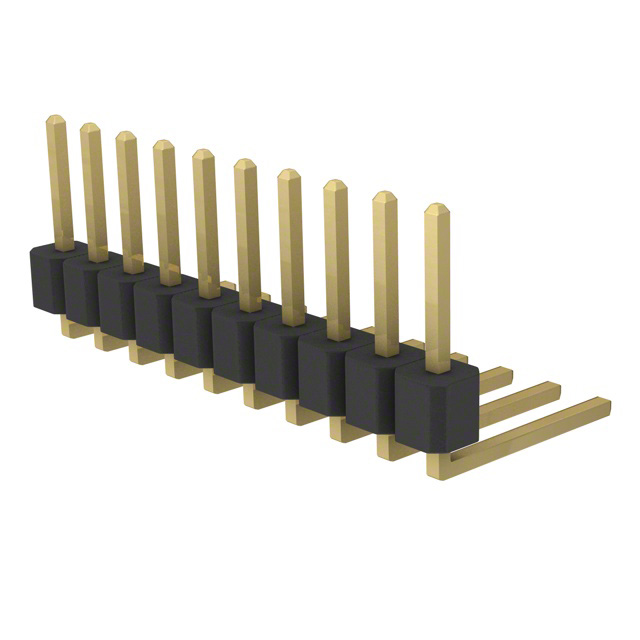

Sullins Connector Solutions PRPC010SBCN-M71RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.23 in	5.84 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm	1	10			8.13 mm	0.32 in	Right Angle Through Hole	Flash	Board to Board Cable

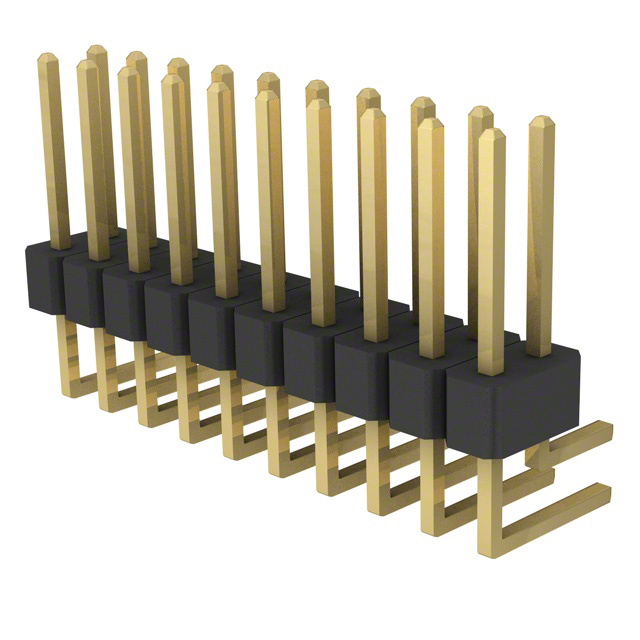

Sullins Connector Solutions PRPC010DGAN-M71RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.318 in	8.08 mm	All	3 A	0.197 "	5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm		20			3.05 mm	0.12 in	Right Angle Through Hole	Flash	Board to Board Cable	2	0.1 in	2.54 mm

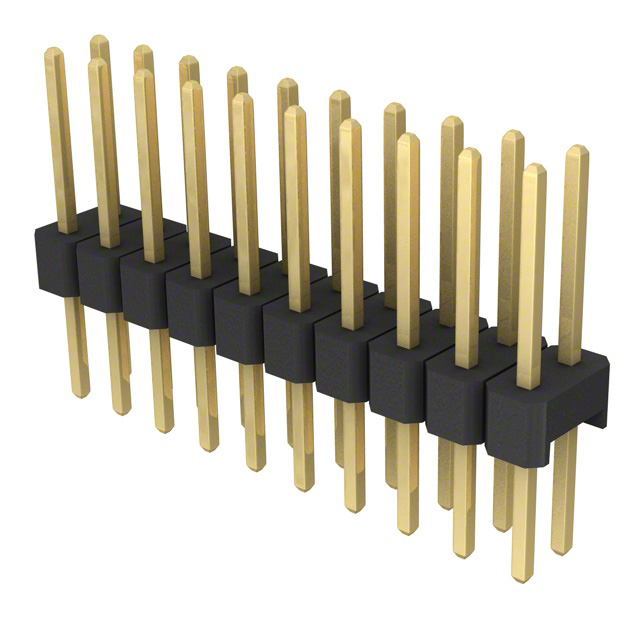

Sullins Connector Solutions PRPC010DFBN-RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.318 in	8.08 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm		20		0.637 in	5.58 mm	0.22 in	Through Hole	Flash	Board to Board Cable	2	0.1 in	2.54 mm	16.17 mm

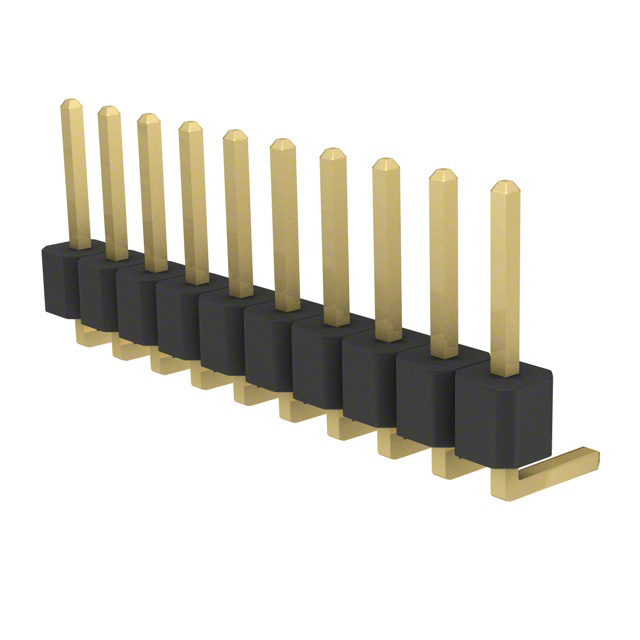

Sullins Connector Solutions PRPC010SBAN-M71RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.23 in	5.84 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm	1	10			3.05 mm	0.12 in	Right Angle Through Hole	Flash	Board to Board Cable

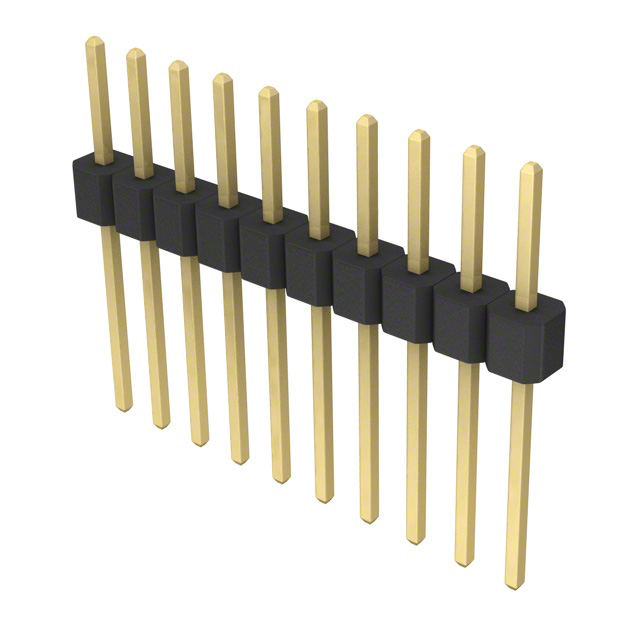

Sullins Connector Solutions PRPC010SADN-RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.23 in	5.84 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm	1	10	0.748 in	19.01 mm	10.67 mm	0.42 in	Through Hole	Flash	Board to Board Cable
Sullins Connector Solutions PRPC010SFAN-RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.318 in	8.08 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm	1	10			3.05 mm	0.12 in	Through Hole	Flash	Board to Board Cable					13.63 mm	0.537 in

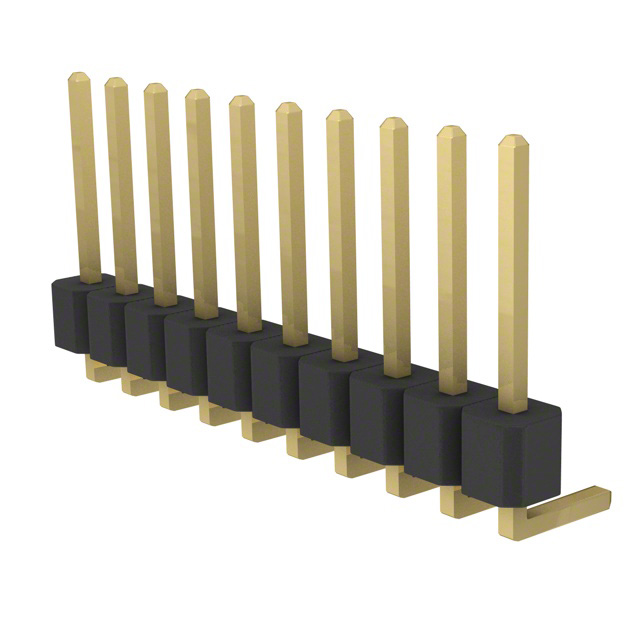

Sullins Connector Solutions PRPC010SGAN-M71RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.318 in	8.08 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm	1	10			3.05 mm	0.12 in	Right Angle Through Hole	Flash	Board to Board Cable
Sullins Connector Solutions PRPC010DABN-RC	Flash	Push-Pull	Gold	Header Breakaway	Brass	Polybutylene Terephthalate (PBT)	-40 C	105 ░C	Male Pin	Square	0.23 in	5.84 mm	All	3 A	0.098 "	2.5 mm	Gold	Solder	UL94 V-0	Unshrouded	Black	0.1 "	2.54 mm		20	0.558 in	14.18 mm	5.84 mm	0.23 "	Through Hole	Flash	Board to Board Cable	2	0.1 in	2.54 mm
