1748C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

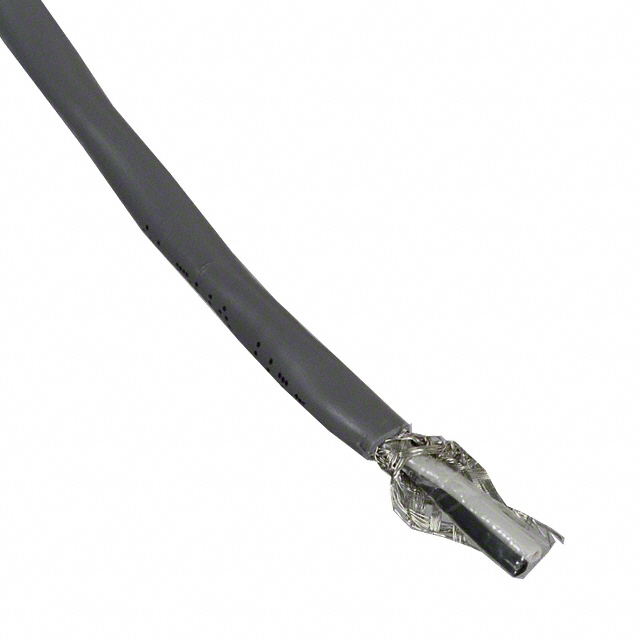

CABLE 2COND 16AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Conductor Strand [custom] | Conductor Strand [diameter] | Number of Conductors | Usage | Jacket Color | Wire Gauge | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 75 % | Poly-Vinyl Chloride (PVC) | Braid | 6.27 mm | 0.247 in | Copper Tinned | Multi-Conductor | 0.02 " | 0.508 mm | 300 VDC | 80 °C | -20 ░C | 152.4 m | 500 ft | 19 | 0.0117 in | 2 | Communication Control | Slate | 16 AWG | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Copper Bare | 75 % | Poly-Vinyl Chloride (PVC) | Braid | 6.27 mm | 0.247 in | Copper Tinned | Multi-Conductor | 0.02 " | 0.508 mm | 300 VDC | 80 °C | -20 ░C | 19 | 0.0117 in | 2 | Communication Control | Slate | 16 AWG | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
