MTSMC-L4 Series

Catalog

RF TXRX MODULE CELL/NAV U.FL TH

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Antenna Type	Voltage - Supply	Data Rate	Frequency	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Package / Case	Serial Interfaces	Current - Transmitting	Current - Receiving
Multi-Tech Systems Inc. MTSMC-L4E1-SP	5 V	3.3 V	Through Hole	Antenna Not Included U.FL	3.3 V 5 VDC	150 Mbps	1.8 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 900 MHz	4G LTE CAT-3	85 °C	-40 C	Cellular Navigation	Module	Serial
Multi-Tech Systems Inc. MTSMC-L4G1-U-SP	5 V	3.3 V	Through Hole	Antenna Not Included U.FL		150 Mbps	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	4G LTE CAT-4 (AT&T/Verizon)	85 °C	-40 C	Cellular	Module	USB	46 mA	46 mA

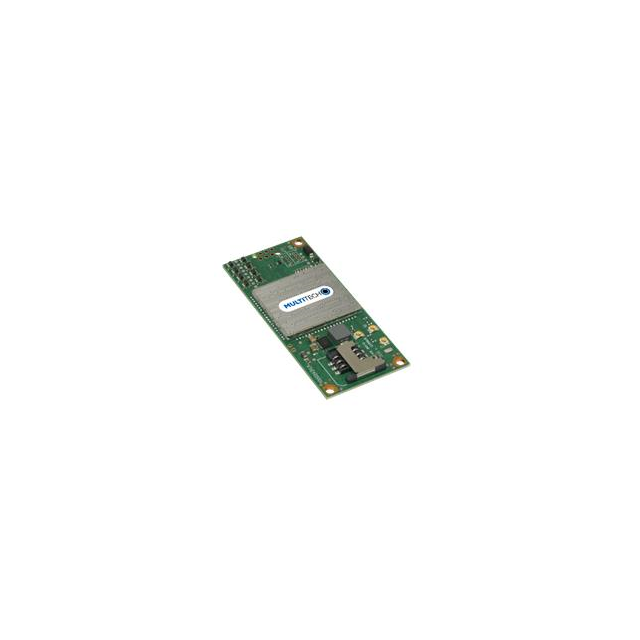

Multi-Tech Systems Inc. MTSMC-L4G1	5 V	3.3 V	Through Hole	Antenna Not Included U.FL	3.3 V 5 VDC	150 Mbps	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	4G LTE CAT-4 (AT&T/Verizon)	85 °C	-40 C	Cellular	Module	Serial	46 mA	46 mA
Multi-Tech Systems Inc. MTSMC-L4E1-U-SP	5 V	3.3 V	Through Hole	Antenna Not Included U.FL		150 Mbps	1.8 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 900 MHz	4G LTE CAT-3	85 °C	-40 C	Cellular Navigation	Module	USB
Multi-Tech Systems Inc. MTSMC-L4E1	5 V	3.3 V	Through Hole	Antenna Not Included U.FL	3.3 V 5 VDC	150 Mbps	1.8 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 900 MHz	4G LTE CAT-3	85 °C	-40 C	Cellular Navigation	Module	Serial
Multi-Tech Systems Inc. MTSMC-L4E1-U.R1	5 V	3.3 V	Through Hole	Antenna Not Included U.FL		150 Mbps	1.8 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 900 MHz	4G LTE CAT-3	85 °C	-40 C	Cellular Navigation	Module	USB
Multi-Tech Systems Inc. MTSMC-L4G1-U	5 V	3.3 V	Through Hole	Antenna Not Included U.FL		150 Mbps	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	4G LTE CAT-4 (AT&T/Verizon)	85 °C	-40 C	Cellular	Module	USB	46 mA	46 mA
Multi-Tech Systems Inc. MTSMC-L4E1-U	5 V	3.3 V	Through Hole	Antenna Not Included U.FL		150 Mbps	1.8 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 900 MHz	4G LTE CAT-3	85 °C	-40 C	Cellular Navigation	Module	USB
Multi-Tech Systems Inc. MTSMC-L4G1-SP	5 V	3.3 V	Through Hole	Antenna Not Included U.FL	3.3 V 5 VDC	150 Mbps	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	4G LTE CAT-4 (AT&T/Verizon)	85 °C	-40 C	Cellular	Module	Serial	46 mA	46 mA
Multi-Tech Systems Inc. MTSMC-L4E1-U.R1-SP	5 V	3.3 V	Through Hole	Antenna Not Included U.FL		150 Mbps	1.8 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 900 MHz	4G LTE CAT-3	85 °C	-40 C	Cellular Navigation	Module	USB
