CONREVSM Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

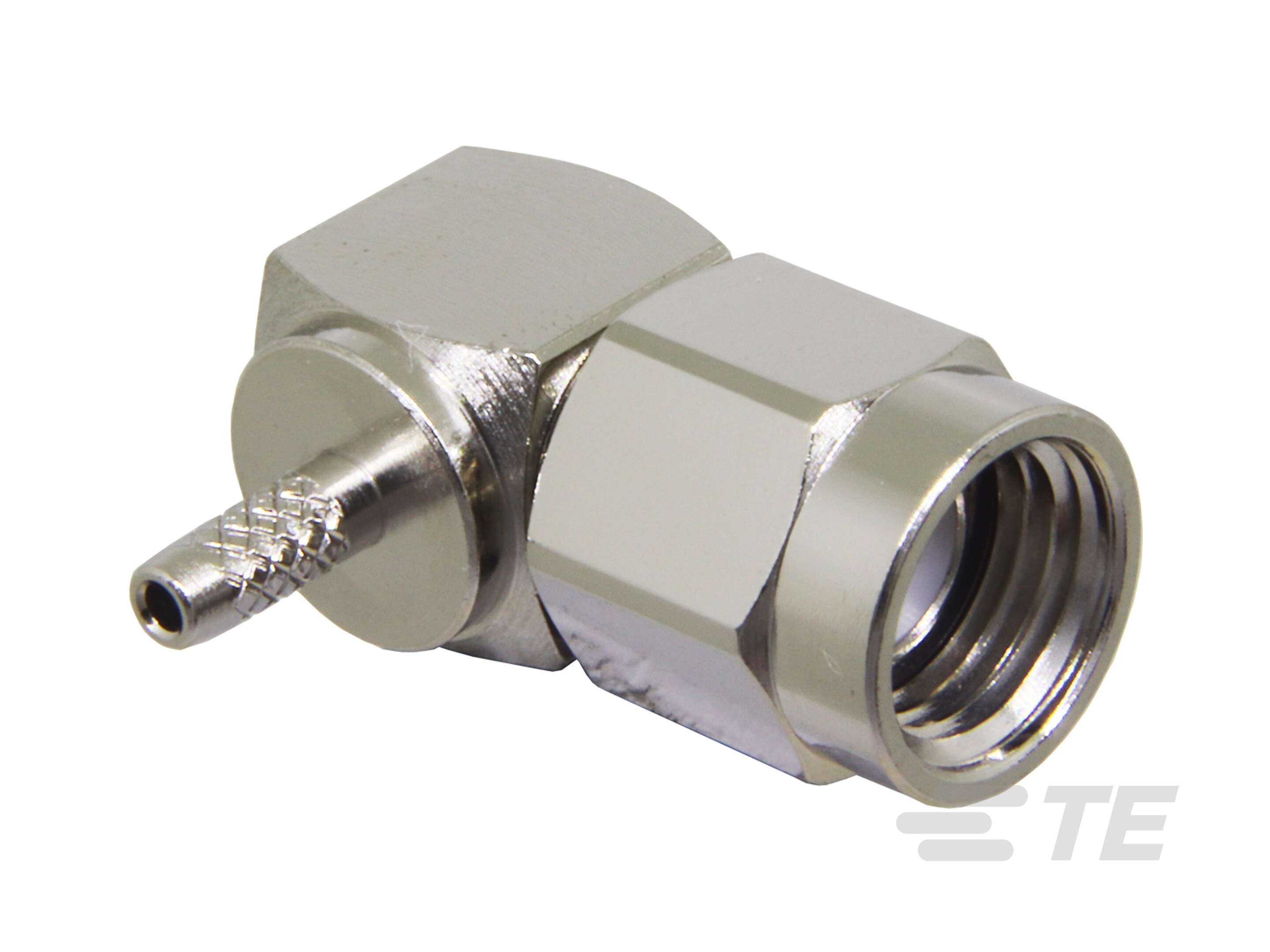

RP-SMA RA PLUG 50 OHM PCB CABLE CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Includes | Body Material | Mating Cycles | Voltage Rating | Body Finish | Mounting Type | Housing Color | Frequency - Max [Max] | Center Contact Material | Fastening Type | Connector Style | Cable Group | Number of Ports | Contact Termination | Connector Type | Impedance | Shield Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | Brass | 500 | 250 V | Nickel | Free Hanging (In-Line) Right Angle | Silver | 12.4 GHz | Beryllium Copper | Threaded | RP-SMA | RG-178 | 1 | Solder | Female Socket Plug | 50 Ohms | Crimp | |

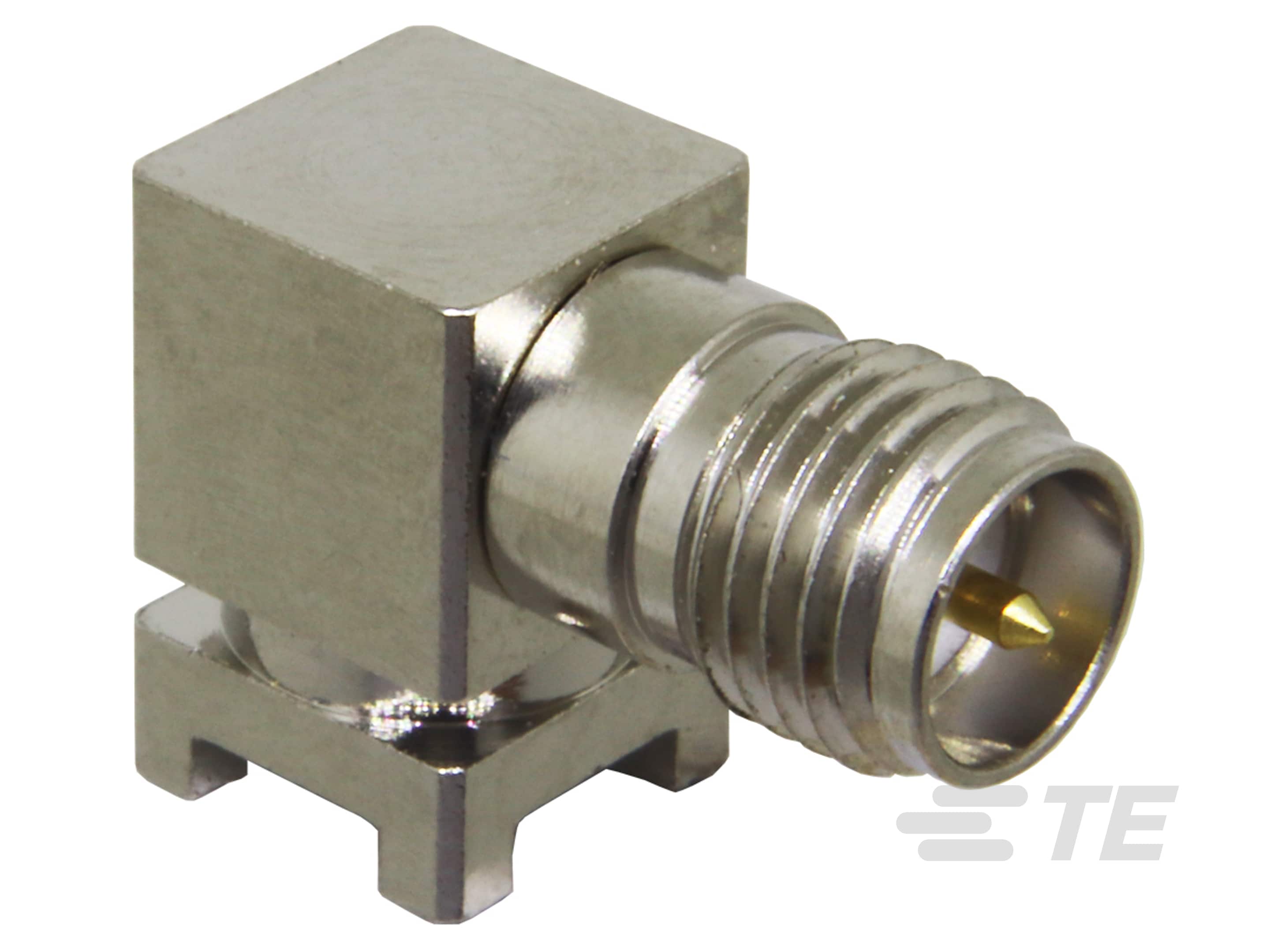

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 500 | Nickel | Right Angle Surface Mount | Silver | 12.4 GHz | Beryllium Copper | Threaded | RP-SMA | 1 | Solder | Receptacle Male Pin | 50 Ohms | Solder | ||||

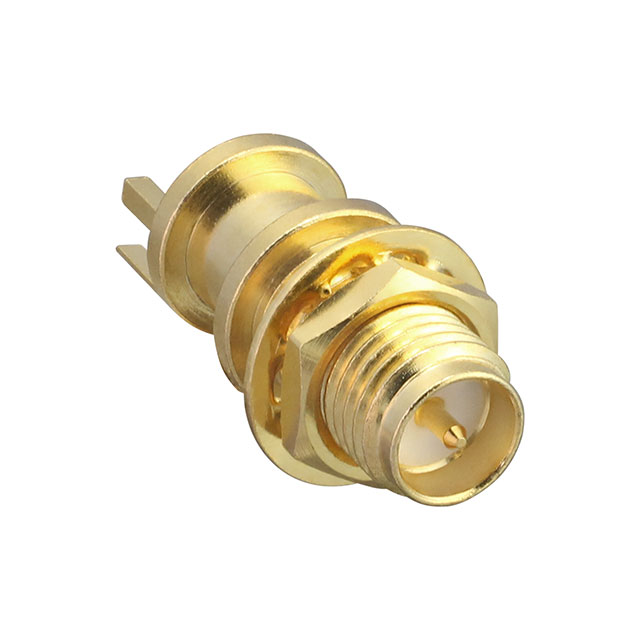

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | Brass | 500 | Gold | Board Edge End Launch Panel Mount | Gold | 18 GHz | Brass | Threaded | RP-SMA | 1 | Solder | Receptacle Male Pin | 50 Ohms | Solder | Bulkhead - Front Side Nut | ||
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Lockwasher 1 Sleeve 1 Spacer 10 pcs 2 Nuts | Brass | 500 | 250 V | Nickel | Panel Mount | Silver | 12.4 GHz | Brass | Threaded | RP-SMA | RG-178 | 1 | Solder | Receptacle Male Pin | 50 Ohms | Crimp | Bulkhead - Front Side Nut |

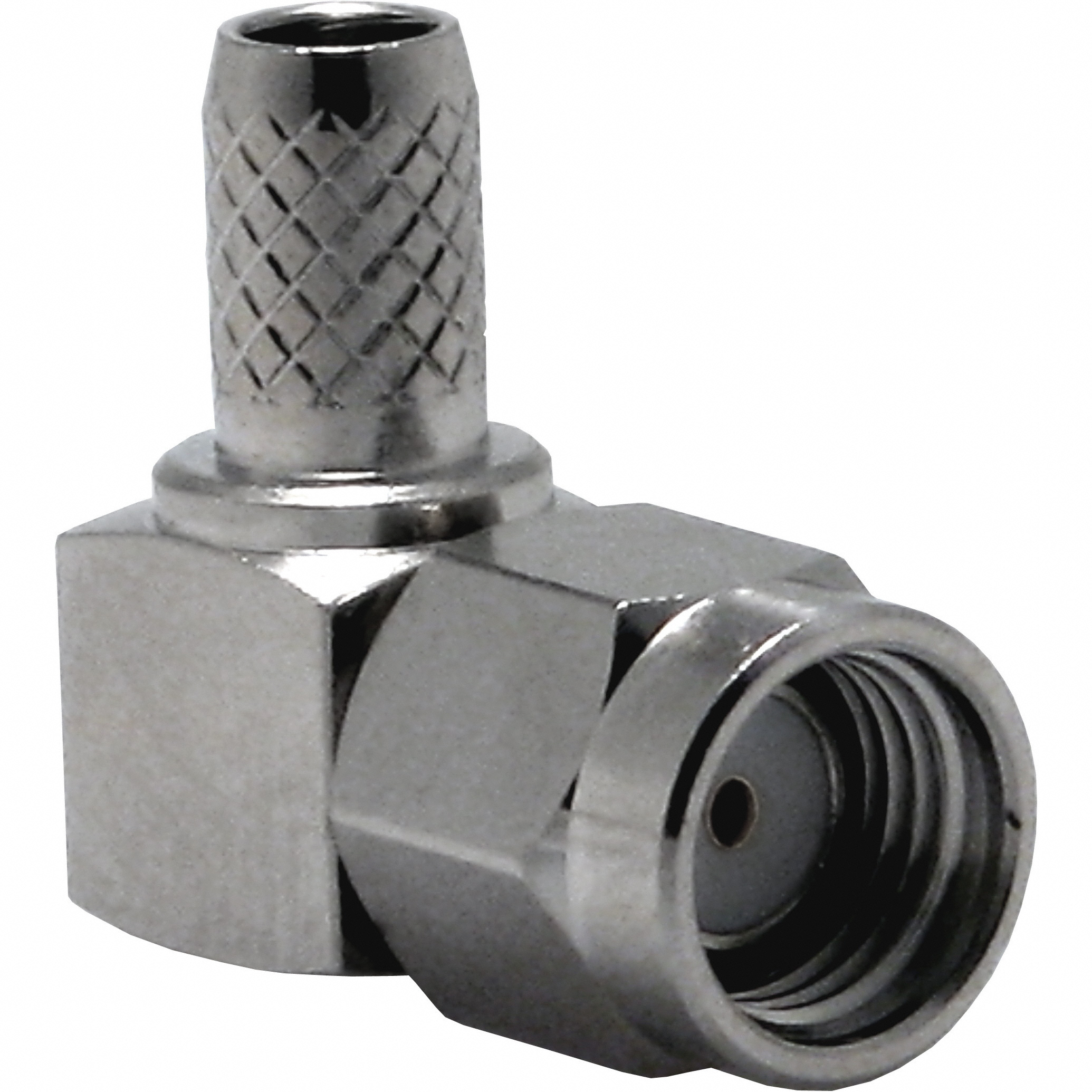

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | Brass | 500 | 500 V | Nickel | Free Hanging (In-Line) Right Angle | Silver | 12.4 GHz | Beryllium Copper | Threaded | RP-SMA | RG-58 | 1 | Solder | Female Socket Plug | 50 Ohms | Crimp | |

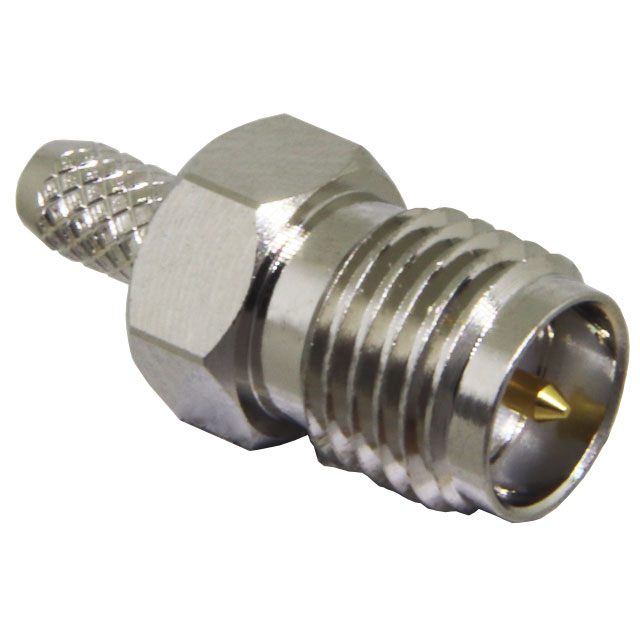

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 500 | 335 V | Nickel | Free Hanging (In-Line) | Silver | 18 GHz | Brass | Threaded | RP-SMA | RG-174 | 1 | Solder | Receptacle Male Pin | 50 Ohms | Crimp | ||

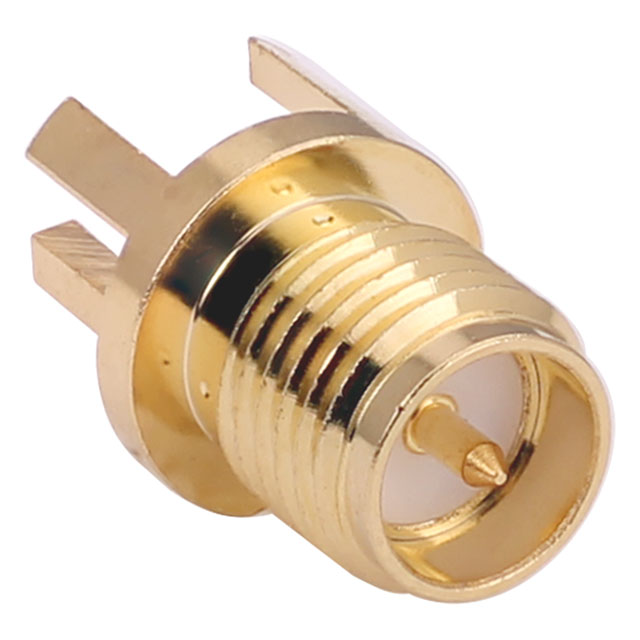

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 500 | Gold | Board Edge End Launch | Gold | 18 GHz | Brass | Threaded | RP-SMA | 1 | Solder | Receptacle Male Pin | 50 Ohms | Solder | ||||

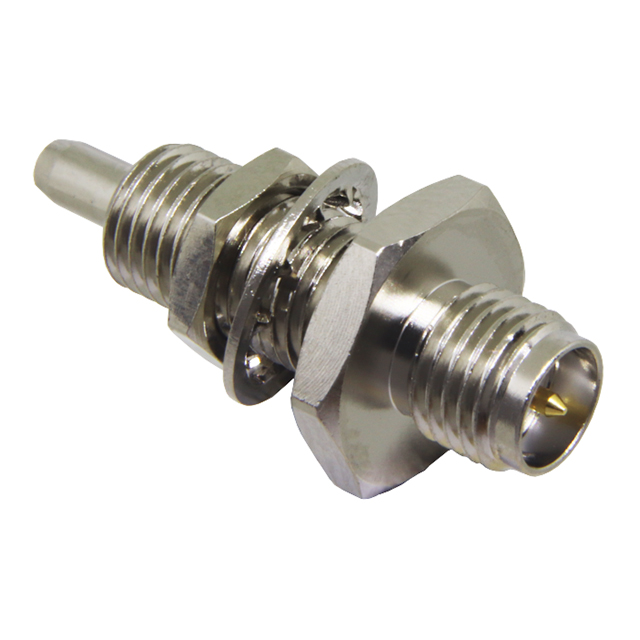

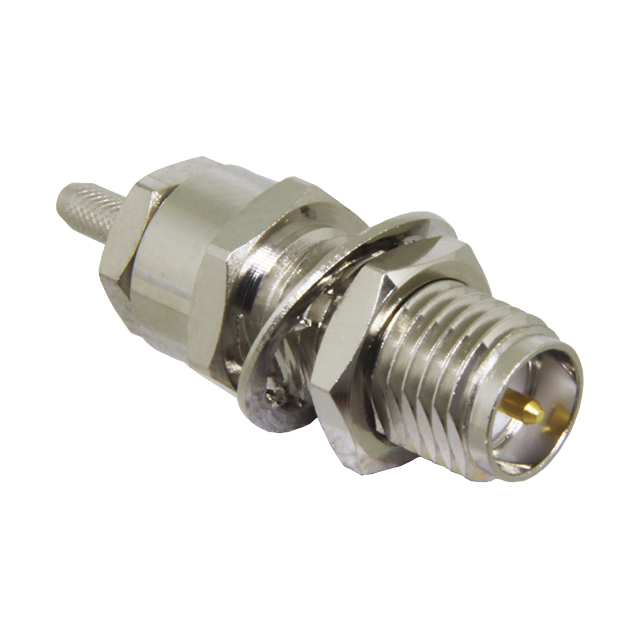

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Gasket 1 Heat Shrink 1 Lockwasher 1 Nut 1 Spacer 1 Support | Brass | 500 | 250 V | Nickel | Panel Mount | Silver | 12.4 GHz | Beryllium Copper | Threaded | RP-SMA | RG-178 | 1 | Solder | Receptacle Male Pin | 50 Ohms | Crimp | Bulkhead - Rear Side Nut |

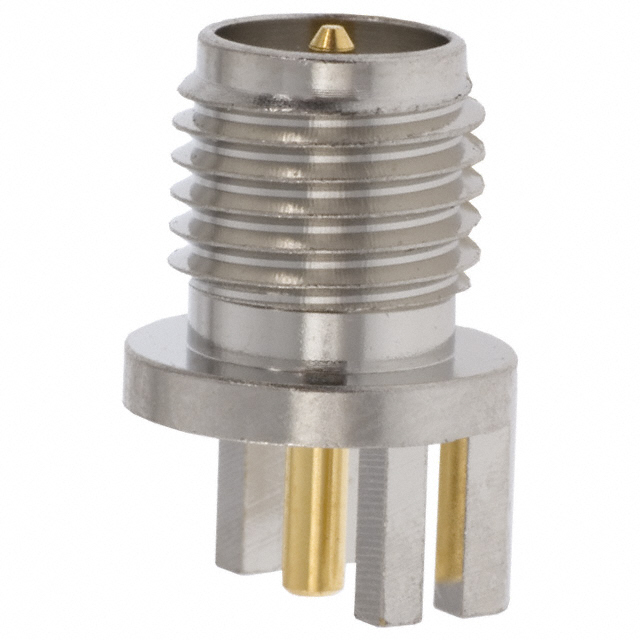

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 500 | Nickel | Board Edge End Launch | Silver | 18 GHz | Brass | Threaded | RP-SMA | 1 | Solder | Receptacle Male Pin | 50 Ohms | Solder | ||||

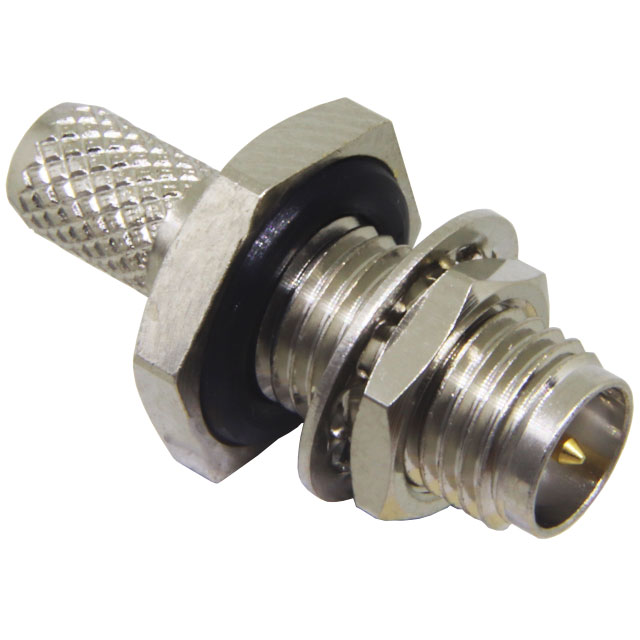

 TE Connectivity AMP Connectors | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 500 | 500 V | Nickel | Panel Mount | Silver | 12.4 GHz | Brass | Threaded | RP-SMA | RG-58 | 1 | Solder | Receptacle Male Pin | 50 Ohms | Crimp | Bulkhead - Front Side Nut |
