SMW5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

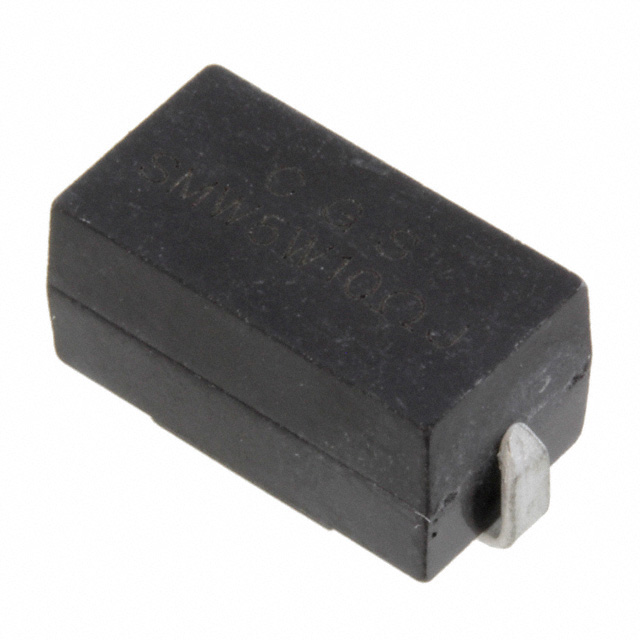

SMD CHIP RESISTOR, 51 OHM, ± 5%, 5 W, 5328 [13573 METRIC], WIREWOUND, HIGH POWER
| Part | Number of Terminations [custom] | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Power (Watts) | Package / Case | Temperature Coefficient | Composition | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Features | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | SMD | 7.1 mm | 0.28 in | 5 W | 5329 (13573 Metric) J-Lead | 200 ppm/°C | Wirewound | 5 % | 200 °C | -55 C | 0.287 in | 7.3 mm | 13.5 mm | 0.531 in | Flame Retardant Coating Safety | 51 Ohms |
 TE Connectivity AMP Connectors | 2 | SMD | 7.1 mm | 0.28 in | 5 W | 5329 (13573 Metric) J-Lead | 200 ppm/°C | Wirewound | 5 % | 200 °C | -55 C | 0.287 in | 7.3 mm | 13.5 mm | 0.531 in | Flame Retardant Coating Safety | 4.3 Ohms |
