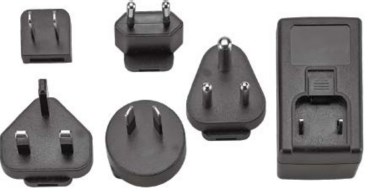

PEAW30I Series

Wall Mount Power Supply 15V 30 Watt

Manufacturer: TT Electronics/BI

Catalog

Wall Mount Power Supply 15V 30 Watt

Catalog

Wall Mount Power Supply 15V 30 Watt

Part	No Load Power Consumption	Cord Length	Cord Length	Current - Output (Max) [Max]	Input Connector	Region Utilized	Input Type	Power (Watts)	Polarization	Standard Number	Voltage - Output	Applications	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Form	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]
TT Electronics/BI PEAW30I-10-B2	100 mW	47 in	1.2 m	4 A	Multi-Blade	International	Multi-Blade (Single Blade Included)	20 W	Positive Center	60950-1	5 V	ITE (Commercial)	CB CCC CE cULus FCC LPS TUV	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	Wall Mount	0 °C	60 °C	264 VAC	90 VAC
TT Electronics/BI PEAW30I-12-B2	100 mW	47 in	1.2 m	2.5 A	Multi-Blade (Included)	International	Multi-Blade (Included)	30 Watts	Positive Center	60950-1	12 V	ITE (Commercial)	CB CCC CE cULus FCC LPS TUV	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	Wall Mount	0 °C	60 °C	264 VAC	90 VAC
TT Electronics/BI PEAW30I-18-B2	100 mW	47 in	1.2 m	620 mA	Multi-Blade (Included)	International	Multi-Blade (Included)	30 Watts	Positive Center	60950-1	48 V	ITE (Commercial)	CB CCC CE cULus FCC LPS TUV	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	Wall Mount	0 °C	60 °C	264 VAC	90 VAC
TT Electronics/BI PEAW30I-14-B2	100 mW	47 in	1.2 m	1.25 A	Multi-Blade (Included)	International	Multi-Blade (Included)	30 Watts	Positive Center	60950-1	24 V	ITE (Commercial)	CB CCC CE cULus FCC LPS TUV	32.5 mm	1.28 "	42.8 mm	73.6 mm	2.9 in	1.69 "	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	Wall Mount	0 °C	60 °C	264 VAC	90 VAC
