1757819 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

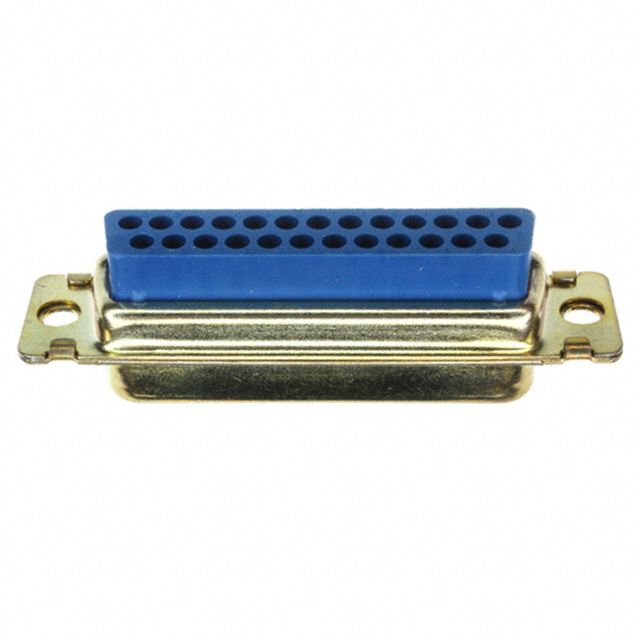

D SUB CONNECTOR HOUSING, 25 POSITIONS, D SUB, DB, AMPLIMITE 109 SERIES, PLUG, STEEL BODY
| Part | Note | Color | Dielectric Material | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Positions | Number of Rows [custom] | Flange Feature | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Connector Style | Shell Finish Thickness | Shell Finish Thickness | Contact Type | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | Blue | Polyester | Plug for Male Contacts | B DB | 3 | 25 | 2 | Housing/Shell (Unthreaded) | Yellow Chromate Plated Zinc | Steel | D-Sub | 20 µin | 0.51 µm | Signal | Free Hanging (In-Line) | |||||||||
 TE Connectivity AMP Connectors | Black | Polyester | Plug Male Pins | DC C | 37 | 2 | Housing/Shell (Unthreaded) | Yellow Chromate Plated Zinc | Steel | D-Sub | Signal | Free Hanging (In-Line) | Copper Alloy | -55 C | 125 °C | Crimp | Gold | 7.5 A | 4 | ||||||
 TE Connectivity AMP Connectors | Contacts Not Included | Blue | Polyester | Plug for Male Contacts | 50 | 3 | Housing/Shell (Unthreaded) | Yellow Chromate Plated Zinc | Steel | D-Sub | 20 µin | 0.51 µm | Signal | Free Hanging (In-Line) | 5 | D DD |
