FR01FR10 Series

Catalog

SWITCH ROTARY DIP BCD 0.1A 5V

Part	Length [x]	Length [x]	Body Material	Mechanical Life	Electrical Life	Current Rating (Amps)	Circuit	Pitch	Pitch	Termination Style	Voltage Rating	Number of Positions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Actuator Type	Contact Material	Actuator Level	Height Above Board [z]	Height Above Board [z]
NKK Switches FR01FR10H	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Steps	10000 Cycles	100 mA	BCD	2.54 mm	0.1 "	PC Pin	5 V	10	Right Angle Through Hole	85 °C	-25 °C	Gold	Rotary for Tool	Copper Alloy	Flush Recessed	0.394 in	10 mm
NKK Switches FR01FR10P-S	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Steps	10000 Cycles	100 mA	BCD	2.54 mm	0.1 "	PC Pin	5 V	10	Through Hole	85 °C	-25 °C	Gold	Rotary for Tool	Copper Alloy	Flush Recessed	0.15 in	3.81 mm

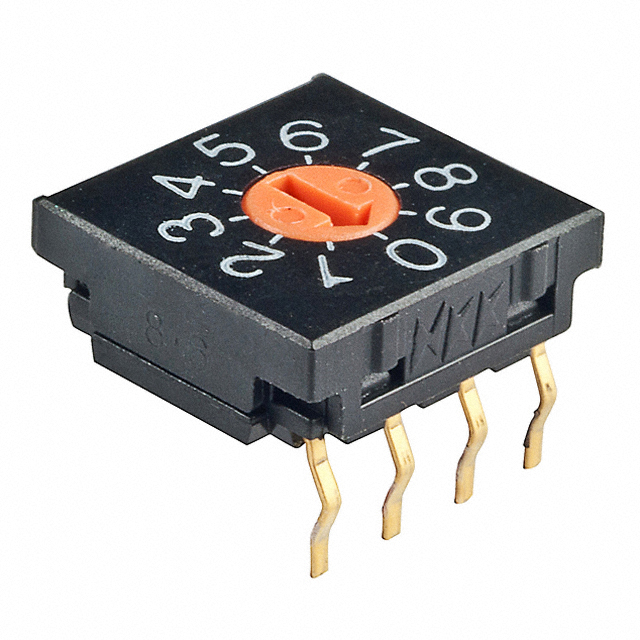

NKK Switches FR01FR10P-W-S	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Steps	10000 Cycles	100 mA	BCD	2.54 mm	0.1 "	PC Pin	5 V	10	Through Hole	85 °C	-25 °C	Gold	Rotary for Tool	Copper Alloy	Flush Recessed	0.15 in	3.81 mm

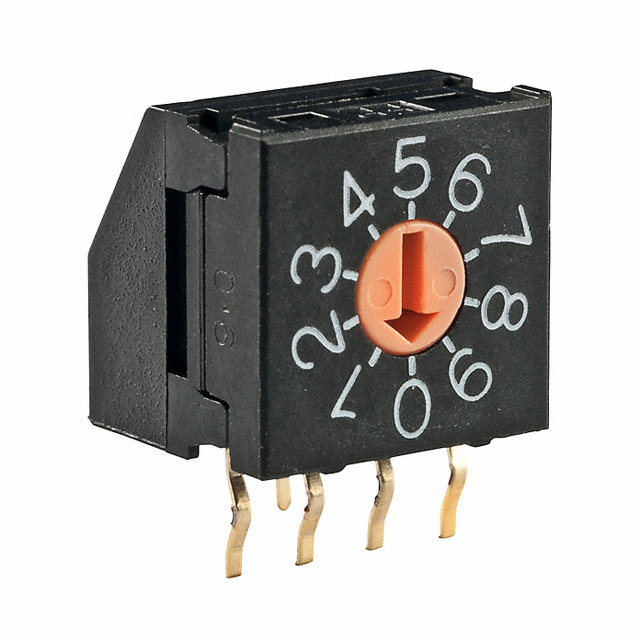

NKK Switches FR01FR10H-06XL-S	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Steps	10000 Cycles	100 mA	BCD	2.54 mm	0.1 "	PC Pin	5 V	10	Right Angle Through Hole	85 °C	-25 °C	Gold	Rotary for Tool	Copper Alloy	Flush Recessed	0.394 in	10 mm

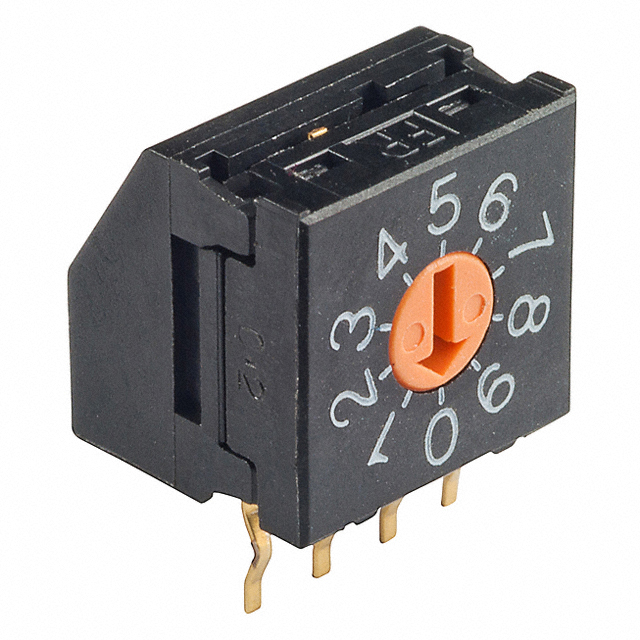

NKK Switches FR01FR10H-06XL	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Steps	10000 Cycles	100 mA	BCD	2.54 mm	0.1 "	PC Pin	5 V	10	Right Angle Through Hole	85 °C	-25 °C	Gold	Rotary for Tool	Copper Alloy	Flush Recessed	0.394 in	10 mm
