UT024 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN BACKSH W/CLMP SZ24 SIL PG29

Part	Material Flammability Rating	For Use With/Related Products	Includes	Includes Total Count	Shielding	Features	Shell Size - Insert	Shell Size - Insert	Type	Cable Opening (Max)	Cable Opening (Min)	Cable Exit Angle	Thread Size	Color	Material	Diameter - Outside	Thread Size (Nominal)	Thread Size (Class)	Thread Pitch (TPI)	Ingress Protection Description	Ingress Protection IP Rating	Accessory Type	Cable Opening	Plating
Amphenol Aerospace Operations UT024LPGN	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp Gromet Screws Washers	8 pcs	Unshielded	Clamp Screws Strain Relief	24	24	Backshell Cable Clamp	1.378 in	0.748 in	90 °	PG29	Silver	Brass
Amphenol Aerospace Operations UT024AD		Trim Trio® UTO and UTOW Connectors					24	24	Backshell Heat Shrink Adapter			180 °		Silver	Metal	1.689 in	1.4375 in	UNEF	18 TPI

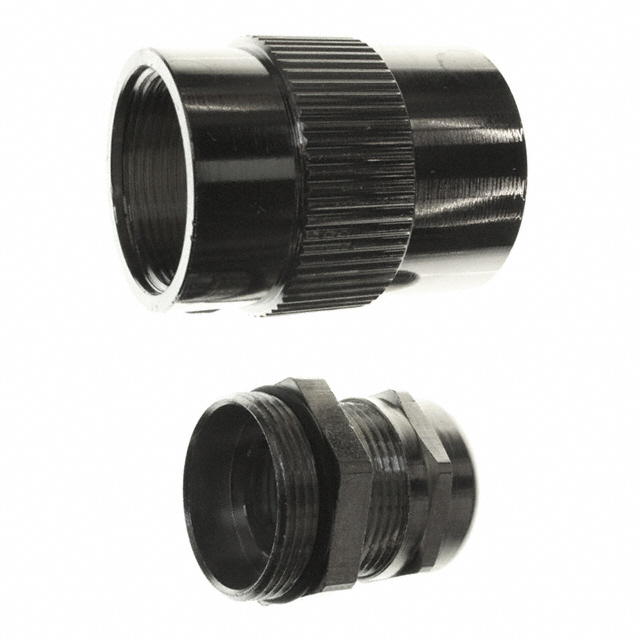

Amphenol Aerospace Operations UT024JCS	UL94 V-0	Trim Trio® UTO and UTOW Connectors			Unshielded	Sealing Gland Strain Relief	24	24	Backshell Cable Clamp	0.709 in	0.453 in	180 °	PG29	Silver	Brass					Dust Tight Water Resistant Waterproof	IP68 IP69K
Amphenol Aerospace Operations UT024DCG		Trim Trio® UTG UTO UTOW UTP Receptacles				Dust Tight Metal Chain Waterproof	24	24						Silver	Metal							Cap (Cover) Dust
Amphenol Aerospace Operations UT024JCL	UL94 V-0	Trim Trio® UTO and UTOW Connectors			Unshielded	Sealing Gland Strain Relief	24	24	Backshell Cable Clamp	0.945 in	0.591 in	180 °	PG29	Silver	Brass					Dust Tight Water Resistant Waterproof	IP68 IP69K

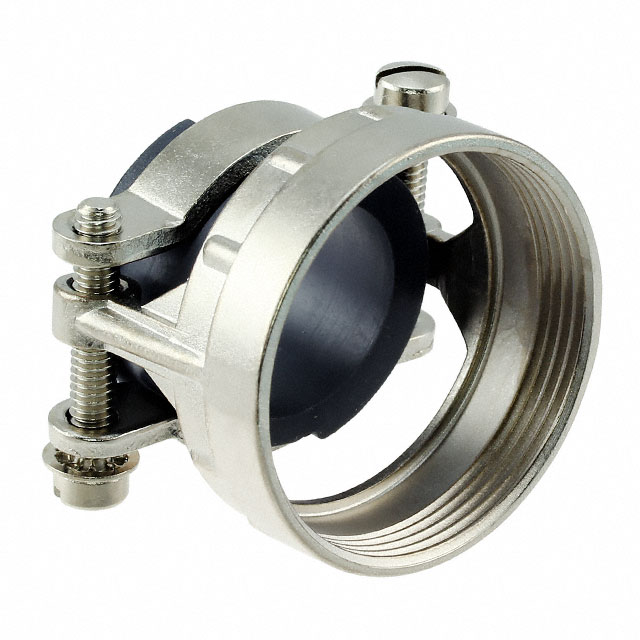

Amphenol Aerospace Operations UT024AC	UL94 V-0	Trim Trio® UTO and UTOW Connectors			Unshielded	Clamp Screws	24	24	Backshell Cable Clamp			180 °		Silver	Metal	1.52 in	1.4375 in	UNEF	18 TPI				0.811 in
Amphenol Aerospace Operations UT024JCSL	UL94 V-0	Trim Trio® UTO and UTOW Connectors			Unshielded	Sealing Gland Strain Relief	24	24	Backshell Cable Clamp			180 °		Silver	Brass					Dust Tight Water Resistant Waterproof	IP68 IP69K

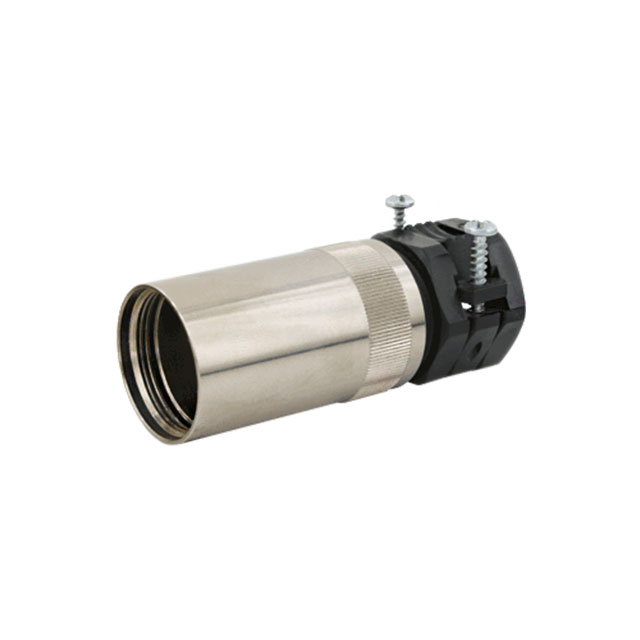

Amphenol Aerospace Operations UT024JCPGN	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp Grommet Screws Washers	7 pcs	Unshielded	Clamp Screws Strain Relief	24	24	Backshell Cable Clamp			180 °	PG29	Silver	Aluminum Alloy					Dust Tight Water Resistant	IP65		1.161 in	Nickel
Amphenol Aerospace Operations UT024JC	UL94 V-0	Trim Trio® UTO and UTOW Connectors			Unshielded	Sealing Gland Strain Relief	24	24	Backshell Cable Clamp	0.709 in	0.453 in	180 °	PG29	Silver	Brass					Dust Tight Water Resistant Waterproof	IP68 IP69K
