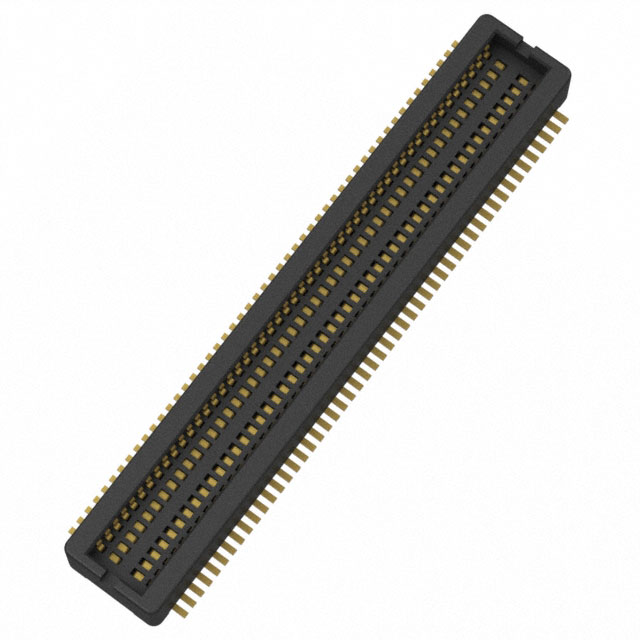

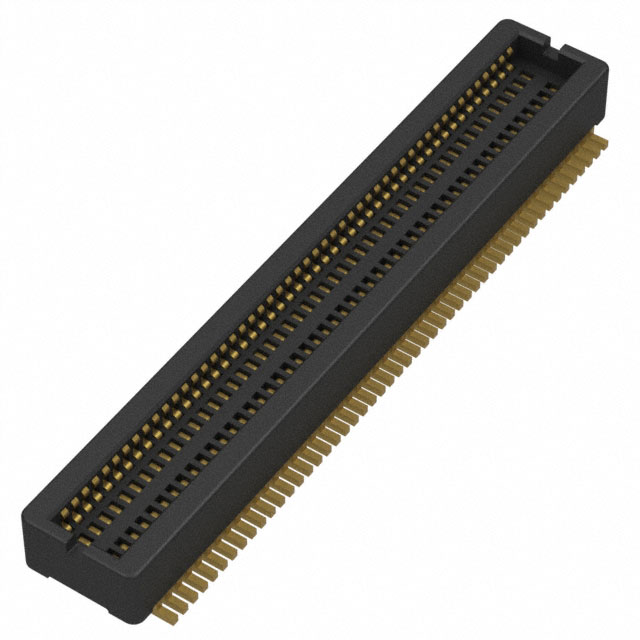

AC01S100 Series

Catalog

CONN RCPT 100POS SMD GOLD

Part	Mounting Type	Contact Finish	Pitch	Pitch	Mated Stacking Heights	Number of Positions	Connector Type	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Height Above Board	Height Above Board
JAE Electronics AC01S100WA1R500	Surface Mount	Gold	0.02 "	0.5 mm	2.5 mm	100	Receptacle Outer Shroud Contacts	0.089 in	2.26 mm	2
JAE Electronics AC01S100WA2R2800	Surface Mount	Gold	0.02 "	0.5 mm	3 mm	100	Receptacle Outer Shroud Contacts			2	2.75 mm	0.108 in
JAE Electronics AC01S100WA2R500	Surface Mount	Gold	0.02 "	0.5 mm	3 mm	100	Receptacle Outer Shroud Contacts			2	2.75 mm	0.108 in
