13282-18S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

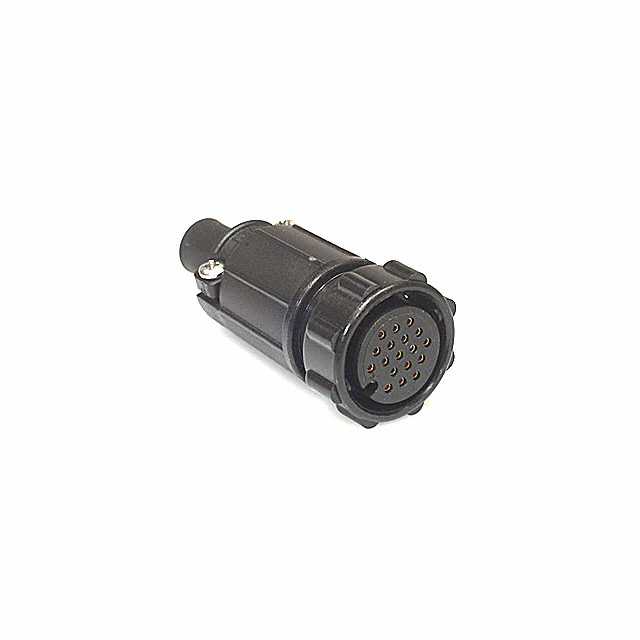

CONN PLUG FMALE 18P SOLDER CUP
| Part | Primary Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Backshell Material, Plating | Fastening Type | Contact Material | Number of Positions | Orientation | Mounting Type | Shielding | Features | Ingress Protection | Connector Type | Color | Contact Finish - Mating | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Plastic | 0.3 " | 0.26 " | 6.6 mm | 7.62 mm | Nylon Polyamide (PA) | Bayonet Lock | Brass | 18 | Keyed | Free Hanging (In-Line) | Unshielded | Backshell Cable Clamp | Weathertight | Plug Female Sockets | Black | Gold | 600 V | 115 °C | -40 C | |
SWITCHCRAFT/CONXALL | Plastic | 0.25 in | 0.21 in | 5.33 mm | Nylon Polyamide (PA) | Bayonet Lock | Brass | 18 | Keyed | Free Hanging (In-Line) | Unshielded | Backshell Cable Clamp | Weathertight | Plug Female Sockets | Black | Gold | 600 V | 115 °C | -40 C | 6.35 mm |
