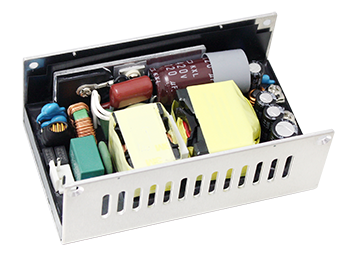

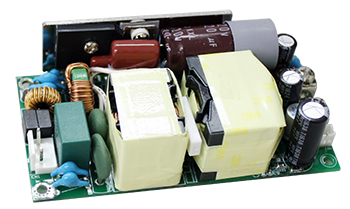

PAA240 Series
Conduction Cooling Open Frame Power Supply Series 240 Watt
Manufacturer: TT Electronics/BI
Catalog
Conduction Cooling Open Frame Power Supply Series 240 Watt
Beta
⌘K
Conduction Cooling Open Frame Power Supply Series 240 Watt
Conduction Cooling Open Frame Power Supply Series 240 Watt
Conduction Cooling Open Frame Power Supply Series 240 Watt
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Current - Output 1 | Power (Watts) | Power (Watts) | Approval Agency | Type | Standard Number | Voltage - Isolation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 12 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 20 A | 240 W | 160 W | CB CE cURus | Open Frame | 62368-1 | 4000 V | Chassis Mount |
 TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 12 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 20 A | 240 W | 234 W | CB CE cURus | Open Frame | 62368-1 | 4000 V | Chassis Mount |
TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 48 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 5 A | 240 W | 160 W | CB CE cURus | Open Frame | 62368-1 | 4000 V | Chassis Mount |
TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 24 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 10 A | 158 W 240 W | CB CE cURus | Open Frame | 62368-1 | 4000 V | Chassis Mount | |
 TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 48 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 5 A | 240 W | 160 W | CB CE cURus | Open Frame | 62368-1 | 4000 V | Chassis Mount |
TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 12 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 20 A | 240 W | 234 W | CB CE cURus | Enclosed | 62368-1 | 4000 V | Chassis Mount |
 TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 48 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 5 A | 240 W | CB CE cURus | Enclosed | 62368-1 | 4000 V | Chassis Mount | |
 TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 24 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 10 A | 240 W | CB CE cURus | Enclosed | 62368-1 | 4000 V | Chassis Mount | |
TT Electronics/BI | 264 VAC | 90 VAC | 1 | ITE (Commercial) | 80 °C | -30 °C | 24 V | PFC Universal Input | 52.1 mm | 4.01 in | 27.6 mm | 101.9 mm | 1.09 " | 2.05 in | 10 A | 240 W | CB CE cURus | Open Frame | 62368-1 | 4000 V | Chassis Mount |
