RZB25 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

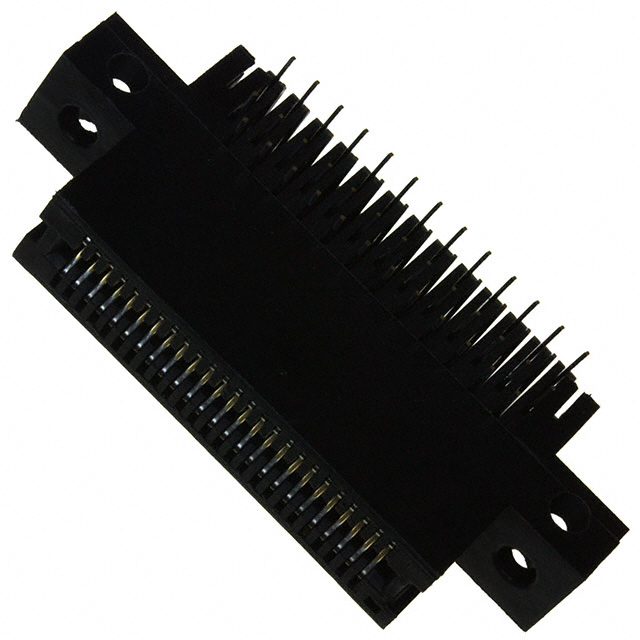

CONN EDGE DUAL FMALE 50POS 0.050
| Part | Material - Insulation | Card Type | Contact Finish | Color | Pitch | Pitch | Features | Contact Type | Number of Positions/Bay/Row | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Card Thickness | Card Thickness | Number of Rows [custom] | Gender | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Gold | Black | 0.05 in | 1.27 mm | Board Lock | Hairpin Bellows | 25 | Phosphor Bronze | 0.25 Ám | 10 Áin | Surface Mount | 1.57 mm | 0.062 in | 2 | Female | Solder | -65 ░C | 125 °C | Dual | 50 | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Gold | Black | 0.05 in | 1.27 mm | Hairpin Bellows | 25 | Phosphor Bronze | 0.25 Ám | 10 Áin | Right Angle Through Hole | 1.57 mm | 0.062 in | 2 | Female | Solder Staggered | -65 ░C | 125 °C | Dual | 50 | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm |
